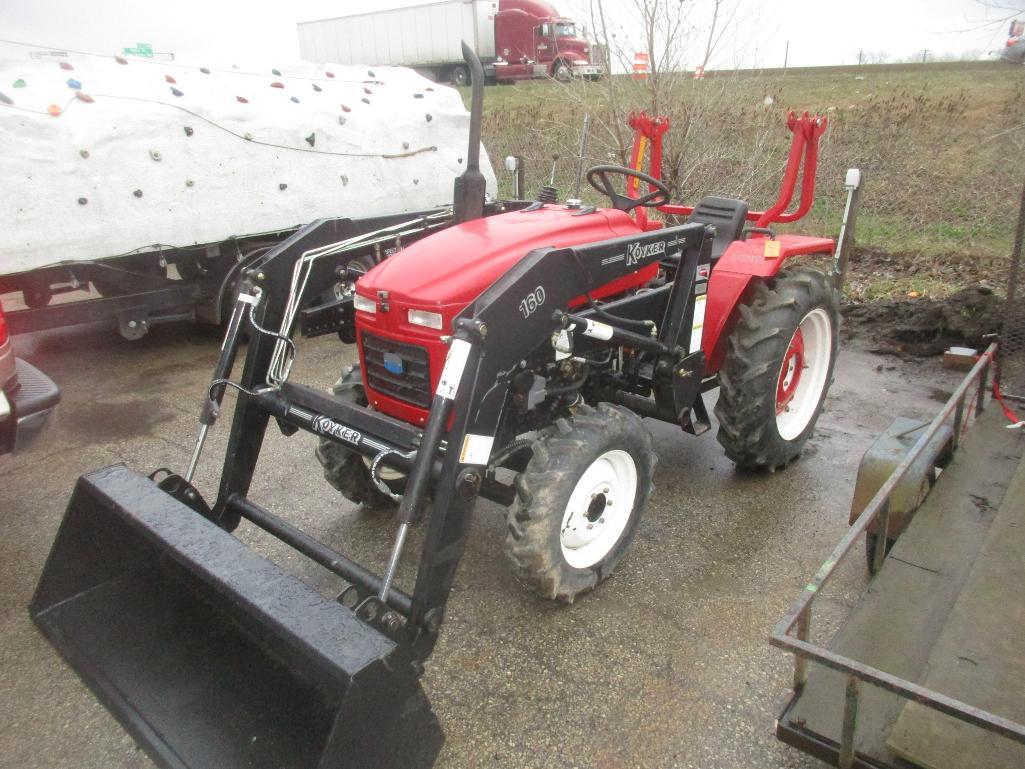

Jinma JM-224
Jinma JM-224 — Compact Utility tractor · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
1269 kg
Hover a source tag to verify
Overview
ManufacturerJinmaReference
Compact Utility tractorReference
Built in Yancheng City, ChinaReference
Four-wheel driveReference
Variants
JM-2202WDReference
JM-2244WDReference
Engine
Yangdong 1.4L 3-cyl dieselReference
Engine16.4 kWReference
Yangdong Y380TReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke83 x 90 mmReference
Power16.4 kWReference
Rated RPM2300Reference
Firing order1-3-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.1 LReference
Coolant capacity10.0 LReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Capacities
Fuel21.0 LReference
PTO & Hydraulics
Hydraulic system9.0 LReference
Capacity9.0 LReference
Valves1Reference
Pump flow15.9 lpmReference
Rear Type0Reference
Rear lift369 kgReference
Rear PTOlive (2-stage clutch)Reference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Weight1269 kgReference
Front tire6.00-12Reference
Rear tire8.3-24Reference
Ag front6.00-12Reference
Ag rear8.3-24Reference
Length269 cmReference
Width123 cmReference
Height215 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
