Tractor · Unverified

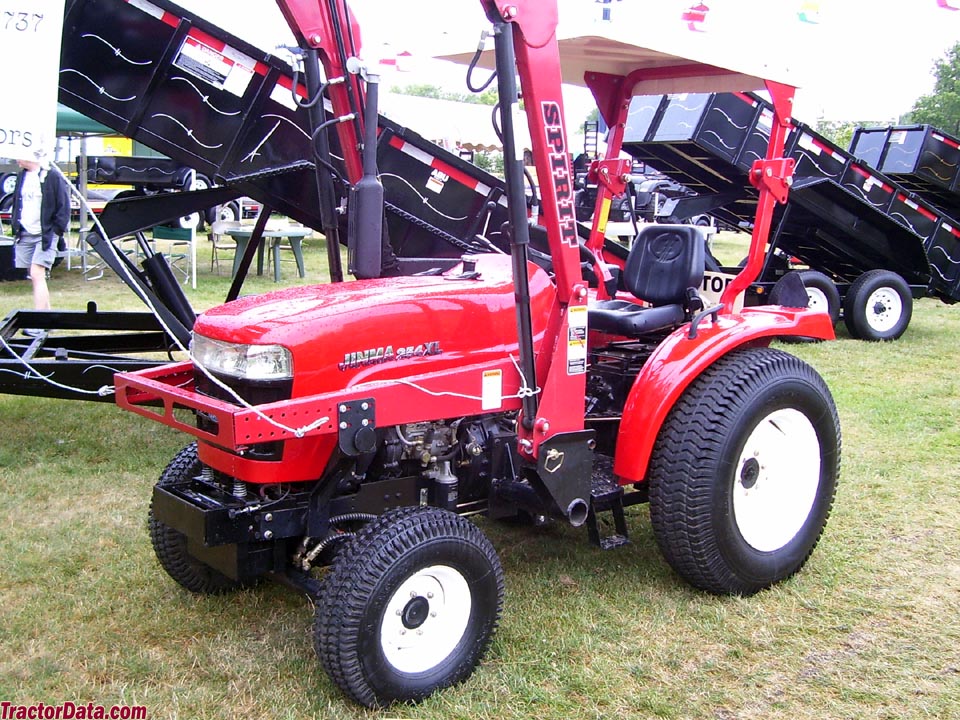

Jinma JM-254
Jinma JM-254 — Compact Utility tractor · 25 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
25 hp
Weight
1140 kg
Hover a source tag to verify
Overview
ManufacturerJinmaReference
Compact Utility tractorReference
Built in Yancheng City, ChinaReference
Four-wheel driveReference
Two-post ROPS.Reference
Variants
JM-2502WDReference
JM-2544WDReference
Engine
Yangdong 1.5L 3-cyl dieselReference
Engine18.6 kWReference
Yangdong Y385TReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke85 x 90 mmReference
Power18.6 kWReference
Compression22:1Reference
Rated RPM2350Reference
Firing order1-3-2Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity8.0 LReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Capacities
Fuel22.0 LReference
PTO & Hydraulics
Hydraulic system9.0 LReference
Typeopen centerReference
Capacity9.0 LReference
Valves1Reference
Rear TypeIReference
Rear lift396 kgReference
Rear PTOliveReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase164 cmReference
Weight1140 kgReference
Front tire6.00-16Reference
Rear tire9.5-24Reference
Ag front6.00-16Reference
Ag rear9.5-24Reference
Length299 cmReference
Width129 cmReference
Height143 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
