Tractor · Unverified

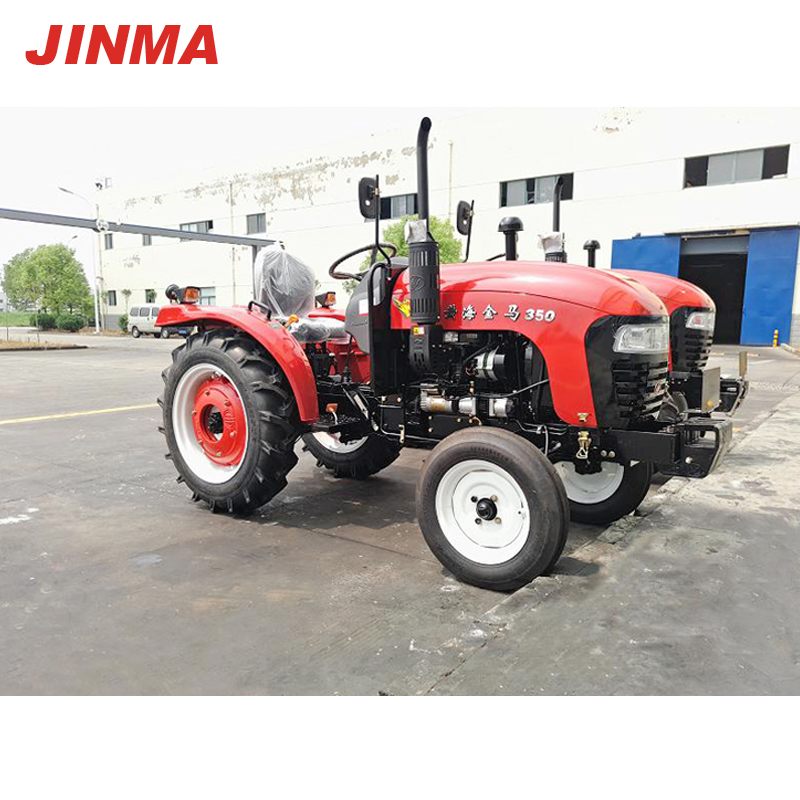

Jinma JM-350
Jinma JM-350 · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1480 kg
Hover a source tag to verify
Overview
ManufacturerJinmaReference
Built in Yancheng City, ChinaReference
Two-wheel driveReference
Engine
Jinma 2.2L 3-cyl dieselReference
Engine26.1 kWReference
JinmaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke95 x 105 mmReference
Power26.1 kWReference
Compression18:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity7.2 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Capacities
Fuel29.9 LReference
PTO & Hydraulics
Hydraulic system8.7 LReference
Typeclosed centerReference
Capacity8.7 LReference
Valves1Reference
Pump flow20.1 lpmReference
Rear TypeIReference
Rear PTOliveReference
Rear PTO Type540, 720Reference
Dimensions
Wheelbase177 cmReference
Weight1480 kgReference
Front tire5.00-15Reference
Ag front5.00-15Reference
Length309 cmReference
Width144 cmReference
Height202 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
