Tractor · Unverified

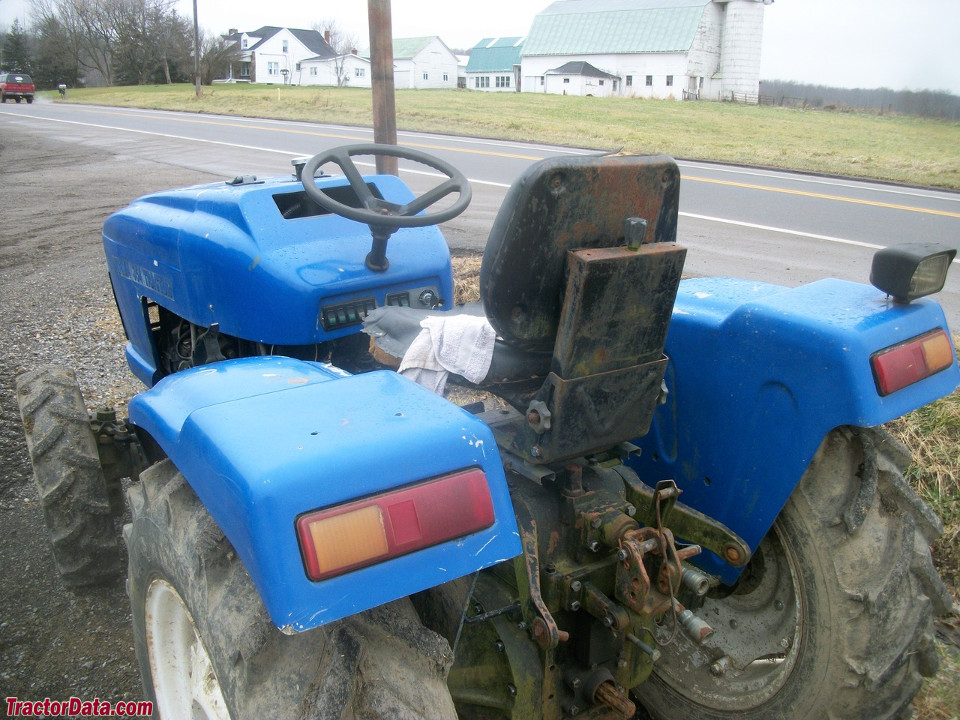

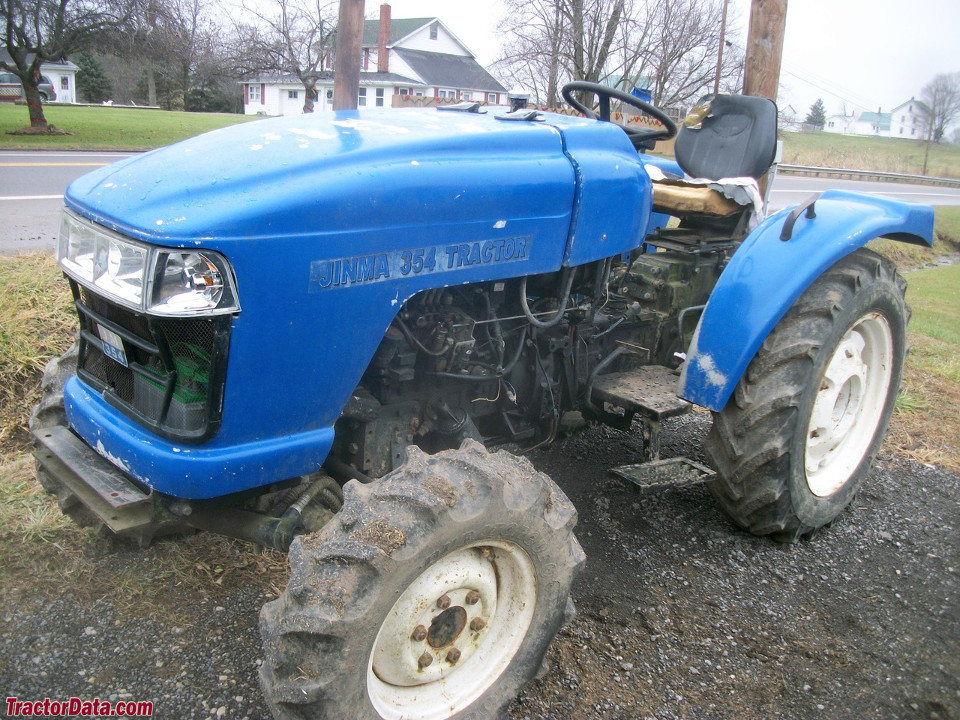

Jinma JM-354
Jinma JM-354 — Compact Utility tractor · 35 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
35 hp
Weight
1779 kg
Hover a source tag to verify
Overview
ManufacturerJinmaReference
Compact Utility tractorReference
Built in Yancheng City, ChinaReference
Four-wheel driveReference
Open operator station.Reference
Engine
Jinma 2.2L 3-cyl dieselReference
Engine26.1 kWReference
JinmaReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke95 x 105 mmReference
Power26.1 kWReference
Compression18:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity7.2 LReference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
Capacities
Fuel29.9 LReference
PTO & Hydraulics
Hydraulic system8.7 LReference
TypeclosedReference
Capacity8.7 LReference
Valves1Reference
Pump flow20.1 lpmReference
Rear TypeIReference
Rear lift590 kgReference
Rear PTOliveReference
Rear PTO Type540/720Reference
Dimensions
Wheelbase183 cmReference
Weight1779 kgReference
Front tire7.50-16Reference
Ag front7.50-16Reference
Length314 cmReference
Width144 cmReference
Height202 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
