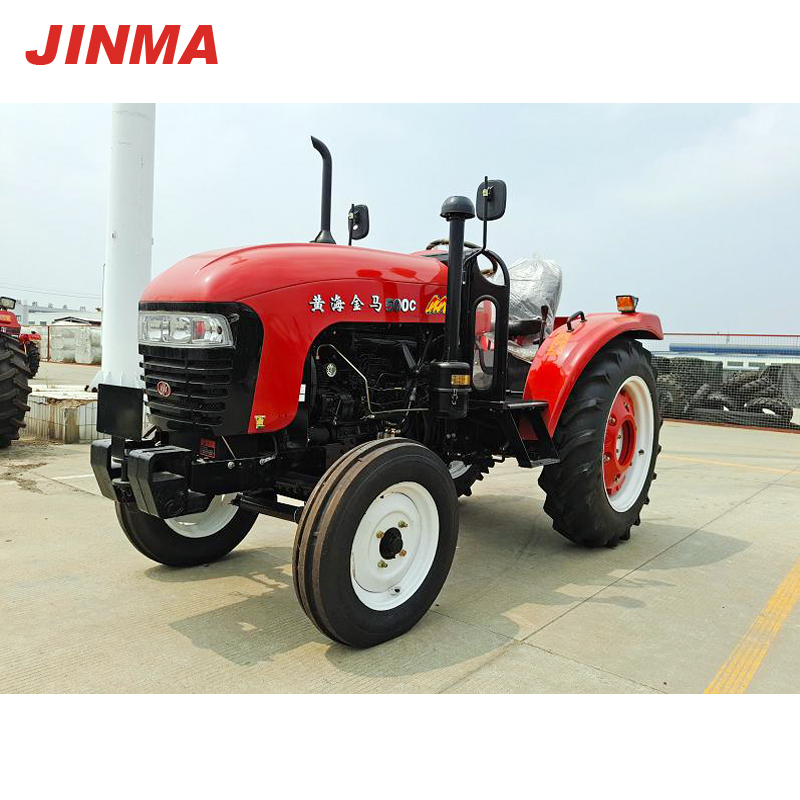

Jinma JM-550
Jinma JM-550 · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
1942 kg
Hover a source tag to verify
Overview
ManufacturerJinmaReference
Built in Yancheng City, ChinaReference
Two-wheel driveReference
Engine
Jinma 4-cyl dieselReference
Engine41.0 kWReference
JinmaReference
dieselReference
4-cylinderReference
liquid-cooledReference
Power41.0 kWReference
Rated RPM2300Reference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift927 kgReference
Rear PTOliveReference
Rear PTO Type540, 720, 1000Reference
Dimensions
Wheelbase200 cmReference
Weight1942 kgReference
Front tire6.00-16Reference
Rear tire12.4-28Reference
Ag front6.00-16Reference
Ag rear12.4-28Reference
Length3854 cmReference
Width182 cmReference
Height243 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
