Tractor · Unverified

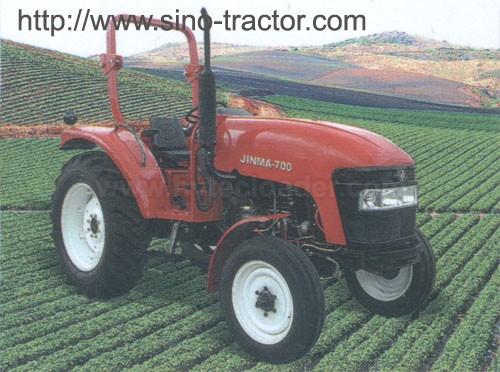

Jinma JM-700
Jinma JM-700 · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
2900 kg
Hover a source tag to verify
Overview
ManufacturerJinmaReference
Built in Yancheng City, ChinaReference
Two-wheel driveReference
Engine
Jinma 4-cyl dieselReference
Engine52.2 kWReference
JinmaReference
dieselReference
4-cylinderReference
liquid-cooledReference
Power52.2 kWReference
Rated RPM2200Reference
Transmission
8-speedReference
Gears8 forward and 2 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear lift1182 kgReference
Rear PTOliveReference
Rear PTO Type720Reference
Dimensions
Wheelbase218 cmReference
Weight2900 kgReference
Front tire6.50-20Reference
Rear tire14.9-30Reference
Ag front6.50-20Reference
Ag rear14.9-30Reference
Length401 cmReference
Width192 cmReference
Height256 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
