Tractor · 2008Unverified

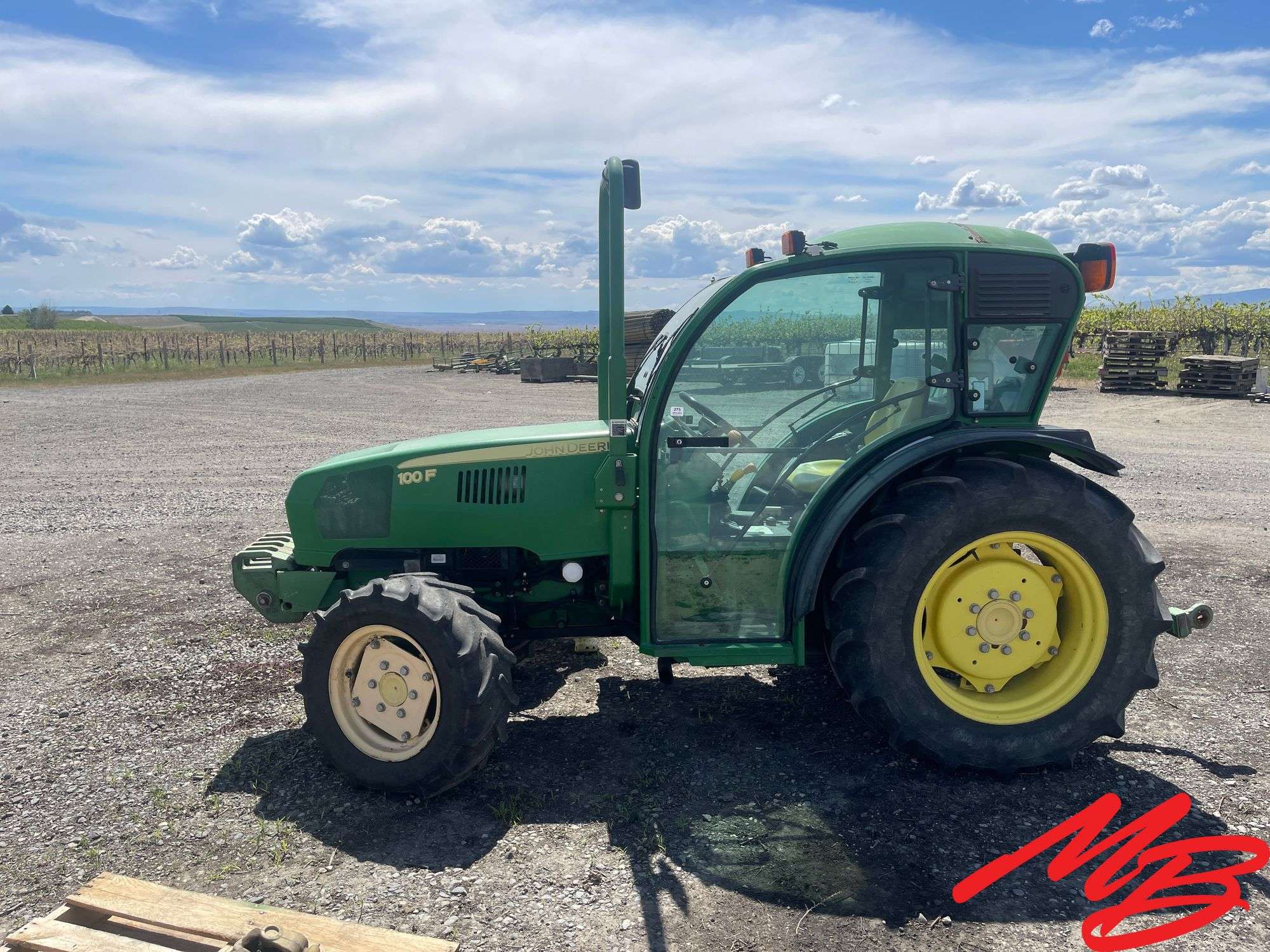

John Deere 100F
John Deere 100F — Orchard/Vineyard tractor · 83 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
83 hp
Weight
2520 kg
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerGoldoniReference
Orchard/Vineyard tractorReference
Built in ItalyReference
Four-wheel driveReference
SteeringpowerReference
Hydraulic wet disc brakesReference
Engine
Detroit Diesel 2.9L 4-cyl dieselReference
Fuel tank60.6 LReference
Engine71.6 kWReference
Detroit DieselReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Power71.6 kWReference
Rated RPM2600Reference
Torque339.0 NmReference
Torque RPM1300Reference
Transmission
8-speedReference
16-speedReference
Gears8 forward and reverseReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)61.9 kWReference
Typeopen centerReference
Pressure195.0 barReference
Valves2 or 3Reference
Total flow37.9 lpmReference
Steering press.135.0 barReference
Rear Type1/1N/2Reference
Rear lift (at 24"/610mm)2499 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase195 cmReference
Weight2520 kgReference
Front tire240/70x16Reference
Rear tire380/70x20Reference
Ag front240/70x16Reference
Ag rear380/70x20Reference
Width144 cmReference
Shipping weight2520 kgReference
Ground clearance32 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
