Industrial Tractor · 1960Unverified

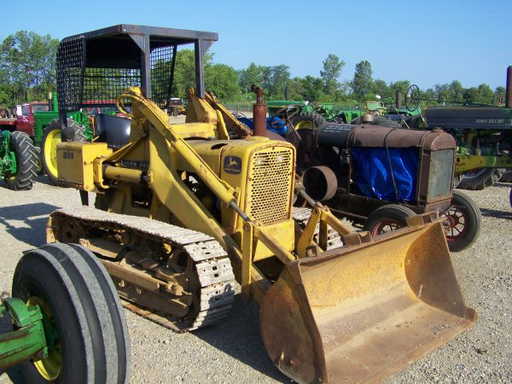

John Deere 1010 Crawler Loader

Name: John Deere 1010 Crawler Loader
Brand: John Deere

John Deere 1010 Crawler Loader — Crawler Loader · 40 hp. Reference specifications; pending source verification.

The John Deere 1010 Crawler Loader is a compact industrial tractor with a rated output of 40 hp. It was manufactured from 1960 to 1964 and features a 4-cylinder diesel liquid-cooled engine, coupled with a 4-speed gearbox and a tracked undercarriage. The machine's listed weight ranges from 9716 to 9818 pounds. It is suitable for tasks involving areas of approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

40 hp

Weight

9716 to 9818 pounds

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded power

40 hp

Recorded weight

4407 kg

Transmissions

4-speed gear

Production years

1960-1964

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Crawler LoaderReference

Built in Dubuque, Iowa, USAReference

DrivecrawlerReference

Open operator station.Reference

Variants

1010Windustrial tractorReference

1010Cindustrial crawlerReference

1010CLtrack loaderReference

1010C Agfarm crawlerReference

Engine

John Deere 1.9L 4-cyl gasolineReference

John Deere 2.4L 4-cyl dieselReference

Engine (net)29.8 kWReference

John DeereReference

gasolineReference

4-cylinderReference

liquid-cooledReference

Displacement1.9 LReference

Bore/Stroke89 x 76 mmReference

Power (net)29.8 kWReference

Air cleaneroil bathReference

Compression7.9:1Reference

Rated RPM2500Reference

Torque120.7 NmReference

Torque RPM1500Reference

dieselReference

Displacement2.4 LReference

Bore/Stroke92 x 89 mmReference

Compression19:1Reference

Torque128.8 NmReference

Transmission

4-speed gearReference

4-speed shuttleReference

TransmissionJohn DeereReference

TypegearReference

Gears4 forward and 1 reverseReference

Clutch279.4mm mechanical dry discReference

TypeshuttleReference

Gears4 forward and reverseReference

Clutchhydraulic wet discReference

PTO & Hydraulics

Hydraulic system26.5 LReference

Typeopen centerReference

Capacity26.5 LReference

Pressure137.9 barReference

Pump flow90.8 lpmReference

Dimensions

Weight9716 to 9818 poundsReference

10-inch tracksReference

Length384 cmReference

Height179 cmReference

Gas Shipping weight4407 kgReference

Diesel Shipping weight4453 kgReference

John Deere 1010 Crawler Loader attachments

bladeReference

front-end loaderReference

Attachment overview

BladeReference

Front-end loaderReference

In addition to the buckets, the loader could be fitted with 850A forks, 850B timber forks, 850C log loader with hydraulic grapple, and the 805 bulldozer blade. The model 36 hydraulic ripper was available. The model 807 bulldozer mounted below the raised loader.Reference

John Deere 1010 Crawler Loader Tracks

Width25 cmReference

Width30 cmReference

Width35 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
