Tractor · 1960Unverified

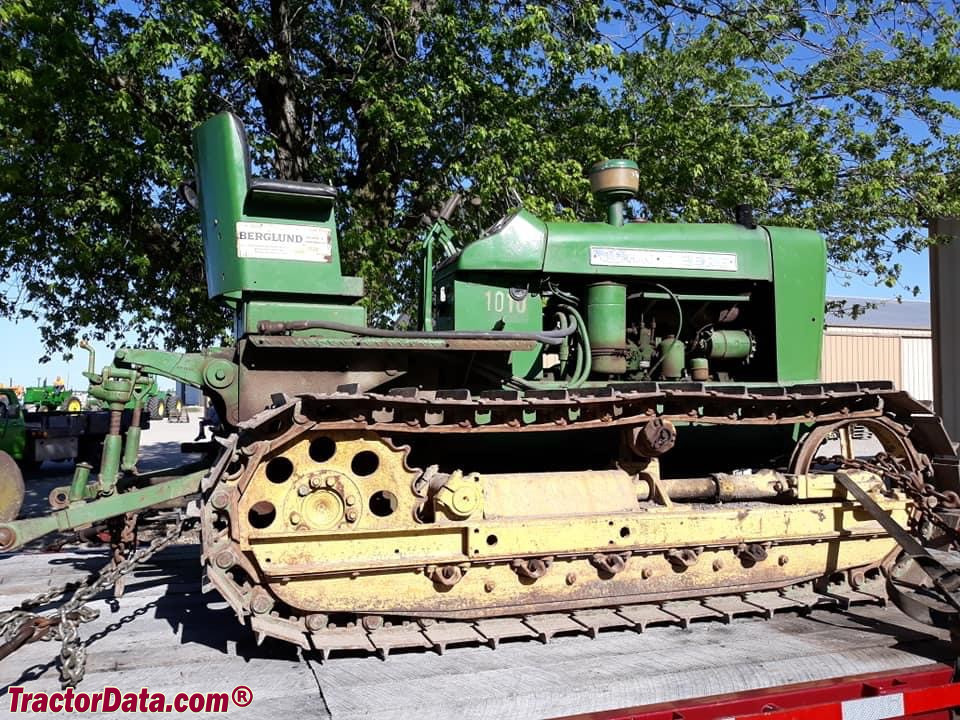

John Deere 1010C
John Deere 1010C — Agricultural Crawler tractor · 36 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
36 hp
Max power
21.4 kW
Weight
3438 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Agricultural Crawler tractorReference
Built in Dubuque, Iowa, USAReference
Total built506 (total)Reference
Total built379 (gas)Reference
Total built127 (diesel)Reference
DrivecrawlerReference
Steeringmultiple disc clutch and brakeReference
Mechancial contracting band brakesReference
Open operator station.Reference
Variants
1010farm tractorReference
1010C Agfarm crawlerReference
1010Windustrial tractorReference
1010Cindustrial crawlerReference
Engine
John Deere 1.9L 4-cyl gasolineReference
John Deere 2.4L 4-cyl dieselReference
Fuel tank45.4 LReference
Plows4Reference
Drawbar (tested)21.4 kWReference
John DeereReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke89 x 76 mmReference
Air cleaneroil bathReference
Compressionoil bathReference
Rated RPM2500Reference
Starter volts12Reference
dieselReference
Displacement2.4 LReference
Bore/Stroke92 x 89 mmReference
Compression19:1Reference
Starter volts24Reference
Power at rated engine speed27.1 kWReference
Max power21.4 kWReference
Power at rated engine speed26.8 kWReference
Max power20.4 kWReference
Transmission
4-speed gearReference
TransmissionJohn DeereReference
TypegearReference
Gears4 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)26.1 kWReference
PTO (tested)27.1 kWReference
Rear TypeIReference
Rear PTOtransmissionReference
Rear PTO Type540Reference
Power at rated PTO speed18.5 kWReference
Power at rated PTO speed16.8 kWReference
Dimensions
Weight3438 kgReference
12-inch tracksReference
Length259 cmReference
Width155 cmReference
Height (hood)136 cmReference
Operating weight3438 kgReference
Gauge121 cmReference
1010C Serial Numbers
196010001Reference
196113692Reference
196223630Reference
196332188Reference
196443900Reference
196553722Reference
Final57312Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Batteries1 (gas)Reference
Batteries2 (diesel)Reference
Battery volts12Reference
John Deere 1010C Tracks
4-roller width30 cmReference
4-roller area on ground0.9 m²Reference
5-roller width30 cmReference
5-roller area on ground1.1 m²Reference
Width25 cmReference
Width35 cmReference
Test results
NTTL 798: diesel 4-speed crawlerReference
NTTL 801: gasoline 4-speed crawlerReference
Diesel 4-speed crawlerJune 5 - 13, 1961Link: Nebraska Tractor Test 798 fileReference
PTO performanceReference
Fuel use9.8 l/hourReference
Fuel use6.4 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull3394 kgReference
Gear 1 used for pull test.Reference
Gasoline 4-speed crawlerJune 13 - 19, 1961Link: Nebraska Tractor Test 801 fileReference
Fuel use12.1 l/hourReference
Fuel use7.2 l/hourReference
Max pull3256 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
