Tractor · 1965Unverified

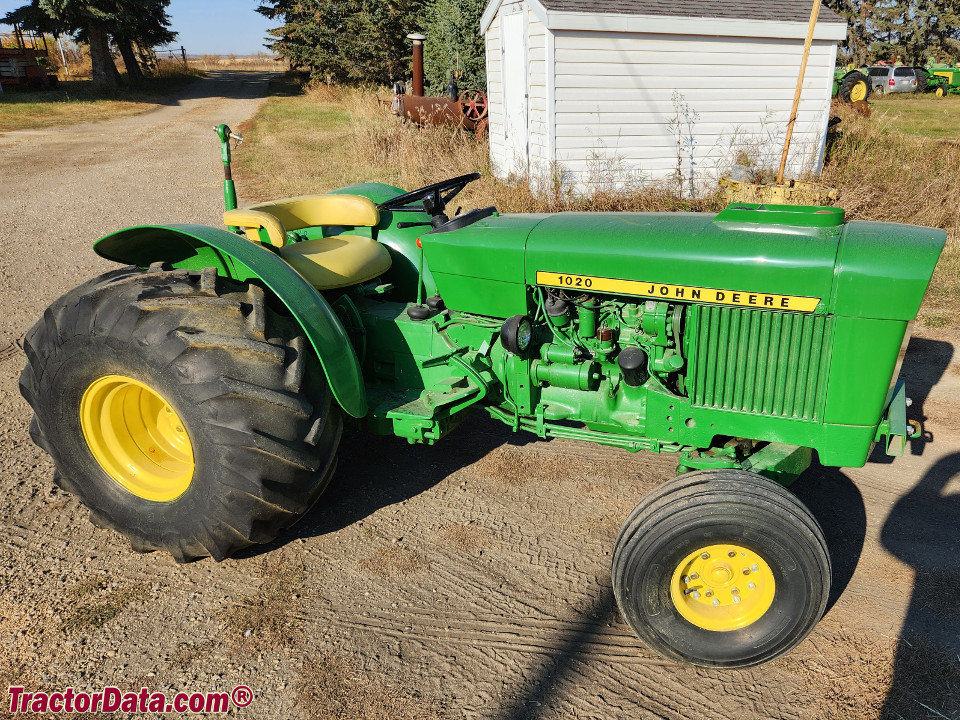

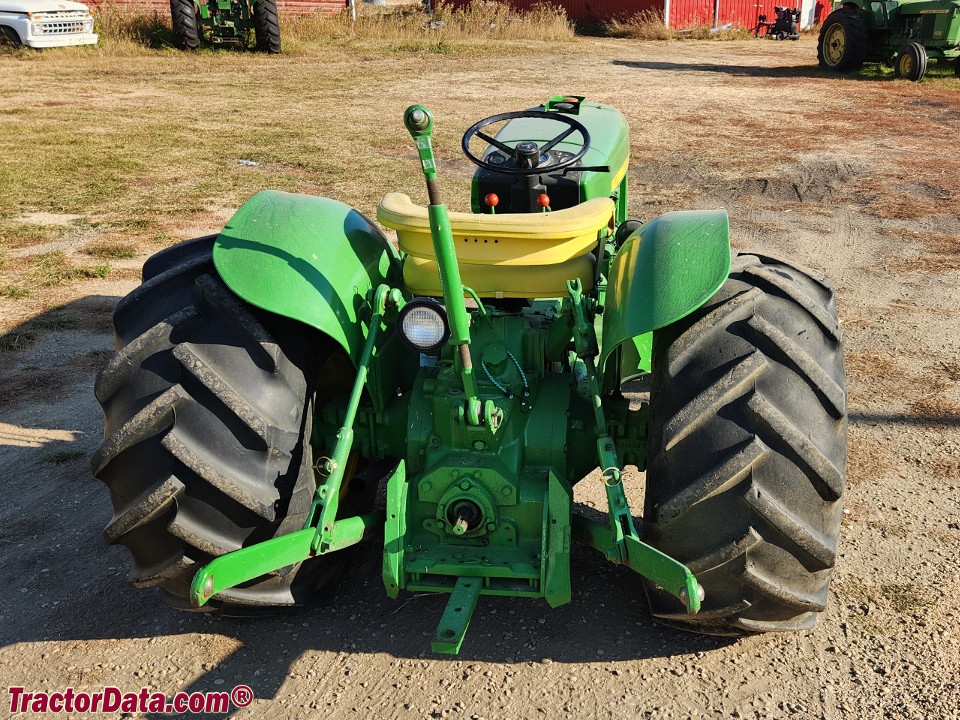

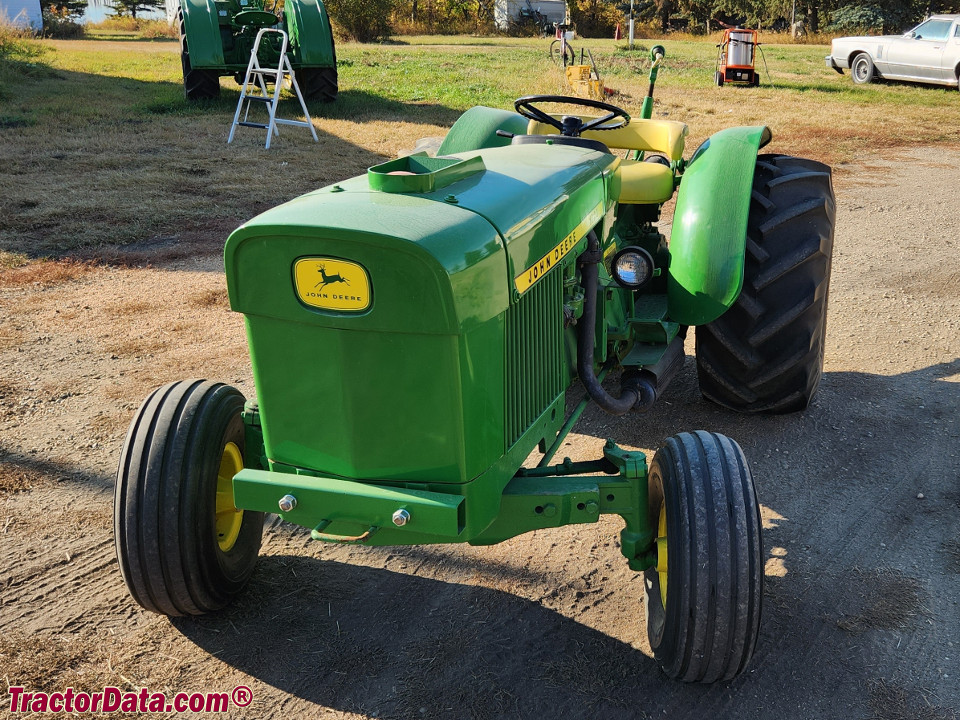

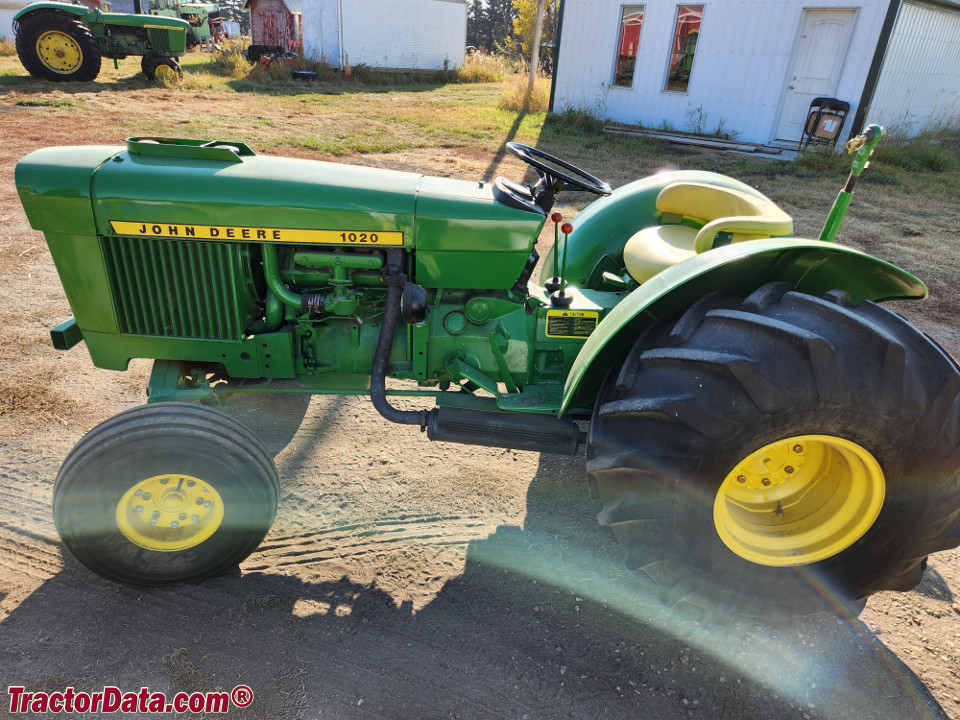

John Deere 1020 Orchard

Name: John Deere 1020 Orchard
Brand: John Deere

John Deere 1020 Orchard — New Generation Series · 39 hp. Reference specifications; pending source verification.

The John Deere 1020 Orchard is a compact tractor, rated at 39 hp, which places it among the smaller options in its class. Manufactured from 1965 to 1973, it features a 3-cylinder diesel liquid-cooled engine, paired with a two-wheel drive system and an 8-speed gearbox. Suitable for tasks covering areas of up to 200 acres, detailed specifications for this model are provided below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

39 hp

Catalogue coverage

Variants represented

Richest spec table

51 rows

Recorded power

39 hp

Transmissions

8-speed gear

Production years

1965-1973

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Orchard/Vineyard tractorReference

Built in Dubuque, Iowa, USAReference

Two-wheel driveReference

Final drivesplanetaryReference

Power steeringReference

Disc brakesReference

Open operator station.Reference

Variants

1020utilityReference

Engine

John Deere 2.2L 3-cyl gasolineReference

John Deere 2.5L 3-cyl dieselReference

Fuel tank62.5 LReference

John DeereReference

gasolineReference

3-cylinderReference

liquid-cooledReference

Displacement2.2 LReference

Bore/Stroke98 x 98 mmReference

Compression7.5:1Reference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity10.4 LReference

dieselReference

Displacement2.5 LReference

Bore/Stroke98 x 110 mmReference

Compression16.3:1Reference

Transmission

8-speed gearReference

TypegearReference

Gears8 forward and 4 reverseReference

Oil capacity37.9 LReference

PTO & Hydraulics

PTO (claimed)28.9 kWReference

Typeclosed centerReference

Pump flow49.2 lpmReference

Rear PTOtransmissionReference

Rear PTOliveReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase190 cmReference

Front tire9.00-10Reference

Rear tire18.4-16AReference

Ag front9.00-10Reference

Ag rear18.4-16AReference

Length325 cmReference

Width182 cmReference

Height (steering wheel)125 cmReference

Clearance (front axle)45 cmReference

Rear tread132/147 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
