Tractor · 2013Unverified

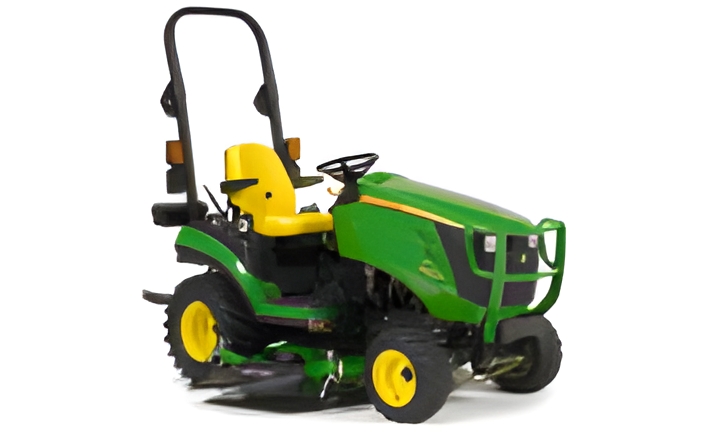

John Deere 1025R

Name: John Deere 1025R
Brand: John Deere

John Deere 1025R — 1 Sub-Compact Series · 18 hp. Reference specifications; pending source verification.

The John Deere 1025R is a compact tractor rated at 18 hp. It was manufactured from 2013 to 2026. The tractor features a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. Its listed weight is 654 kg, suitable for operations covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

18 hp

Max power

23.9 hp (3,200 seconds)

Weight

654 kg

Catalogue coverage

Variants represented

Richest spec table

154 rows

Recorded power

18 hp

Recorded weight

654 kg

Transmissions

hydrostatic

Production years

2013-2026

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Sub-Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price$13,361 (2013)Reference

Original price$14,301 (2019)Reference

Original price$18,013 (2026)Reference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS on semi-flat platform.Reference

Engine

Yanmar 1.3L 3-cyl dieselReference

Engine17.7 kWReference

Yanmar 3TNV80Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.3 LReference

Bore/Stroke80 x 84 mmReference

EmissionsTier 4Reference

Power17.7 kWReference

Fuel systemindirect injectionReference

Air cleanerdryReference

Pre-heatingglow plugsReference

Pre-heatingblock heaterReference

Pre-heatingcoolant heaterReference

Compression23.5:1Reference

Rated RPM3200Reference

Operating RPM1575-3370Reference

Torque55.2 NmReference

Torque RPM3200Reference

StarterelectricReference

Starter volts12Reference

Starter power1.2 kWReference

Coolant capacity3.7 LReference

Oil capacity2.7 LReference

Oil change200 hReference

Fuel TypeDieselReference

No of CylindersThreeReference

Rated engine speed3,200 rpmReference

Emissions complianceFinal Tier 4Reference

Cylinder linersCast-in-blockReference

Engine torque at rated speed53.1 NmReference

Injection pump typeIndirect injectionReference

AspirationNaturalReference

Bore and stroke80 x 84 mmReference

Compression ratio23.1:1Reference

Cooling systemWater pumpReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity12.3 LReference

Transmission TypeHSTReference

forward and reverse optionstwo rangeReference

Wheel Drive4WDReference

Gear Shift LocationLeft-hand sideReference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Hydraulic system12.3 LReference

Typeopen centerReference

Capacity12.3 LReference

Pressure137.9 barReference

Valves2 or 3Reference

Pump flow13.2 lpmReference

Total flow23.8 lpmReference

Steering flow10.6 lpmReference

Rear TypeI (limited)Reference

Controlposition controlReference

Rear lift (at 24"/610mm)308 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3200Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Engine RPM2100@3200Reference

Capacities

Fuel21.2 LReference

Front axle2.4 LReference

Front Axle capacity611.9 kgReference

Rear Axle capacity714.9 kgReference

Fuel tank24 LReference

Crankcase oil volume2.7 LReference

Dimensions

Wheelbase145 cmReference

Weight654 kgReference

Weight276 kgReference

Lawn/turf front18x8.50-10Reference

Lawn/turf rear26x12-12Reference

Industrial front18x8.50-10Reference

Industrial rear26x12-12Reference

Length222 cmReference

Length260 cmReference

Length449 cmReference

Width119 cmReference

Height (hood)105 cmReference

Height (ROPS)218 cmReference

Shipping weight654 kgReference

Clearance (front axle)19 cmReference

Flanged rear axleReference

Front tread81 cmReference

Rear tread89 cmReference

John Deere 1025R attachments

54" mid-mount mower deckReference

60" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

1025R Serial Number Location

Serial number plate on the right side of the 1025R frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Battery CCA500Reference

Battery volts12Reference

Battery size500 CCAReference

Alternator size40 ampReference

Attachment overview

54" mid-mount mower deckReference

60" mid-mount mower deckReference

SnowblowerReference

BladeReference

John Deere D120 loaderReference

John Deere H120 loaderReference

BackhoeReference

John Deere 260 Backhoe

Backhoe typeJohn Deere 260 BackhoeReference

Digging depth187 cmReference

Reach from pivot264 cmReference

Swing Arc150°Reference

Bucket force923 kgReference

Dipperstick force538 kgReference

General

Make & ModelYanmar® @ 3TNV80F-NCJTReference

LubricationPressurizedReference

Cruise controlStandardReference

SCV controlJoystick: AvailableReference

Rollover protective structureType\\nFoldable\\nYesReference

PlatformOne-piece semi flatReference

Power

Max Power23.9 hp (3,200 seconds)Reference

PTO

PTO Power17.2 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlIndependentReference

Rear PTO RPM540 rpmReference

Mid PTO RPM2,100Reference

Steering & brakes

BrakesWet disc (left-hand pedal)Reference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)24 l/minReference

Hydraulics TypeSingle gearReference

Maximum operating pressure2,000 psiReference

Remote ValvesThreeReference

Steering & Implements flow13.2 L/min (13.2 L/min)Reference

Rear Hitch category (SAE designation)3-Point | Limited Category 1Reference

Dimensions & weight

Ground Clearance195 mmReference

Turning radius2.5 mReference

Overall weight705.8 kgReference

Wheels & tyres

Rear Wheel TypeR3 Turf: 26x12-12\\nR4: 26x12-12Reference

Front Wheel TypeR3 Turf: 18x8.50-10\\nR3 Turf Radial: 18x8.50-10\\nR4: 18x8.5-10Reference

Operator station

Cab Air conditioning, temperature differentialHeat onlyReference

Cab Seat equipmentPremium seatReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
