Tractor · 1973Unverified

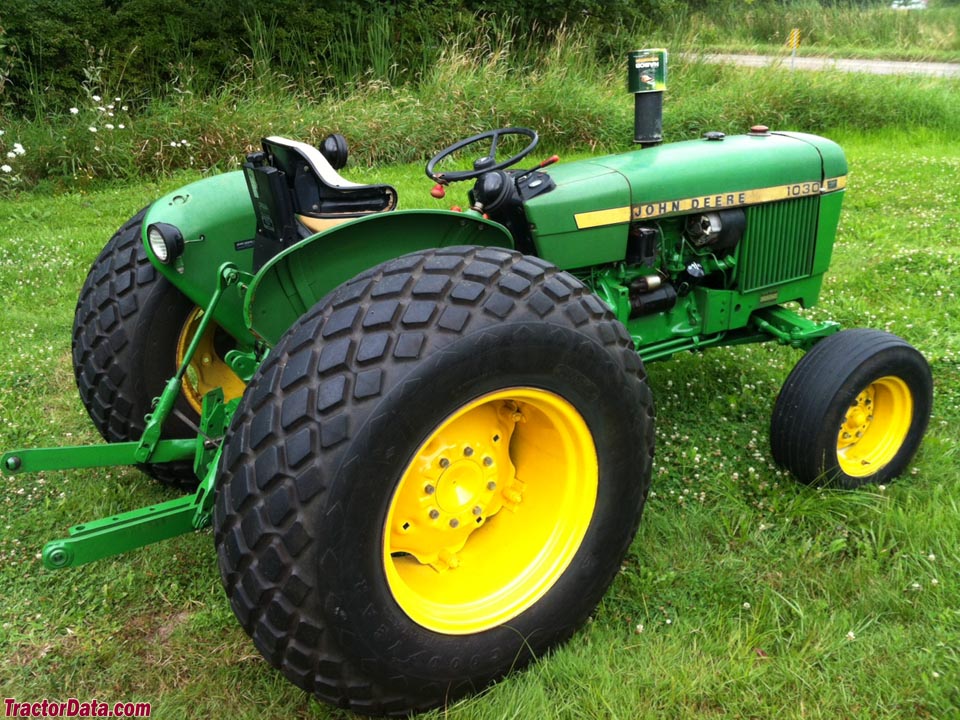

John Deere 1030
John Deere 1030 — Utility tractor · 48 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
48 hp
Weight
4720 to 5954 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Hydraulic wet disc brakesReference
Open operator station.Reference
Engine
John Deere 2.7L 3-cyl dieselReference
Fuel tank62.1 LReference
Engine (gross)36.0 kWReference
Engine (net)34.0 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power (net)34.0 kWReference
Power (gross)36.0 kWReference
Air cleanerdryReference
Compression16.2:1Reference
Rated RPM2500Reference
Idle RPM650-2650Reference
Operating RPM1400-2500Reference
Torque151.9 NmReference
Torque RPM1400Reference
Firing order1-2-3Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity10.4 LReference
Transmission
8-speed gearReference
16-speedReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity36.0 LReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)29.0 kWReference
Typeclosed centerReference
Pressure155.0 barReference
Pump flow25.0 lpmReference
Pump flow46.9 lpmReference
Rear TypeII/IReference
Controlposition control and lower-link draft sensingReference
Rear lift1825 kgReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2100Reference
Dimensions
Wheelbase204 cmReference
Weight4720 to 5954 poundsReference
Front tire6.50-16Reference
Rear tire12.4-36Reference
Ag front6.50-16Reference
Ag rear12.4-36Reference
Length337 cmReference
Width167 cmReference
Weight2700 kgReference
Shipping weight2140 kgReference
Front tread125 to 192 cmReference
Rear tread135 to 195 cmReference
1030 Serial Number Location
Serial number plate on the right side of the 1030 tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Batteries2Reference
Battery volts12Reference
Battery AH55Reference
John Deere 1030 Height
Hood134 cmReference
ROPS230 cmReference
Exhaust198 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
