Tractor · 1974Unverified

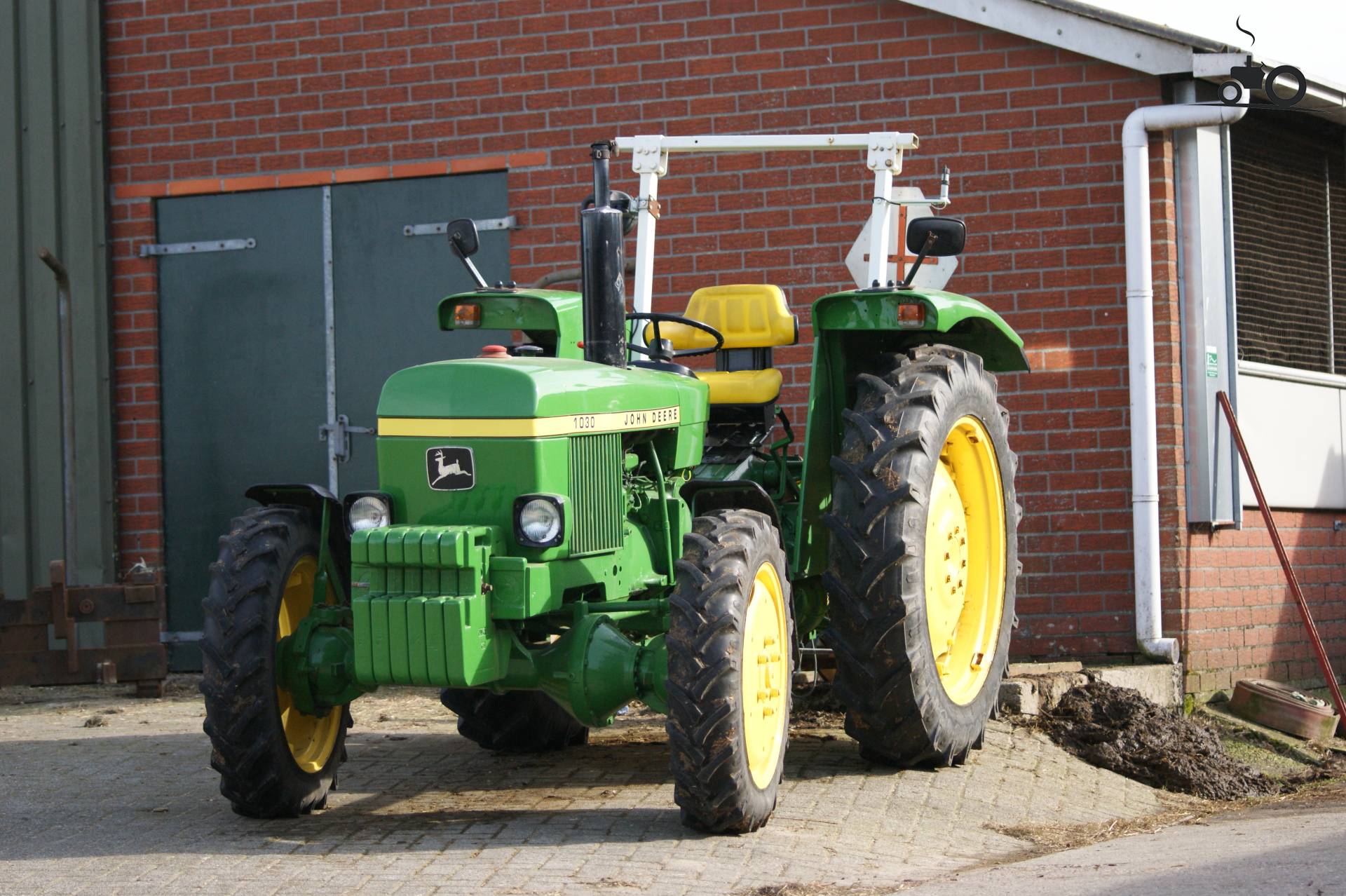

John Deere 1030VU
John Deere 1030VU — Orchard/Vineyard tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Built in Getafe, SpainReference
Two-wheel driveReference
Final drivesplanetaryReference
Manual steeringReference
Hydraulic wet disc brakesReference
Two-post mid-mount ROPS.Reference
Engine
John Deere 2.7L 3-cyl dieselReference
Engine34.0 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power34.0 kWReference
Air cleanerdryReference
Rated RPM2500Reference
Operating RPM1400-2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity10.0 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity38.5 LReference
Capacities
Fuel42.0 LReference
PTO & Hydraulics
Hydraulic system38.6 LReference
Typeopen centerReference
Capacity38.6 LReference
Rear TypeIReference
Controlposition and draft controlReference
Rear PTOindepedentReference
Rear PTO Type540 (1.375)Reference
Dimensions
Wheelbase160 cmReference
Front tire5.00x15Reference
Rear tire9.5x24Reference
Ag front5.00x15Reference
Ag front5.50x16Reference
Ag rear9.5x24Reference
Ag rear11.2x24Reference
Ag rear11.2x28Reference
Ag rear8.3x28Reference
Ag rear9.5x28Reference
Length254 cmReference
Width98 cmReference
Height (hood)117 cmReference
Ground clearance35 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
