Tractor · 1977Unverified

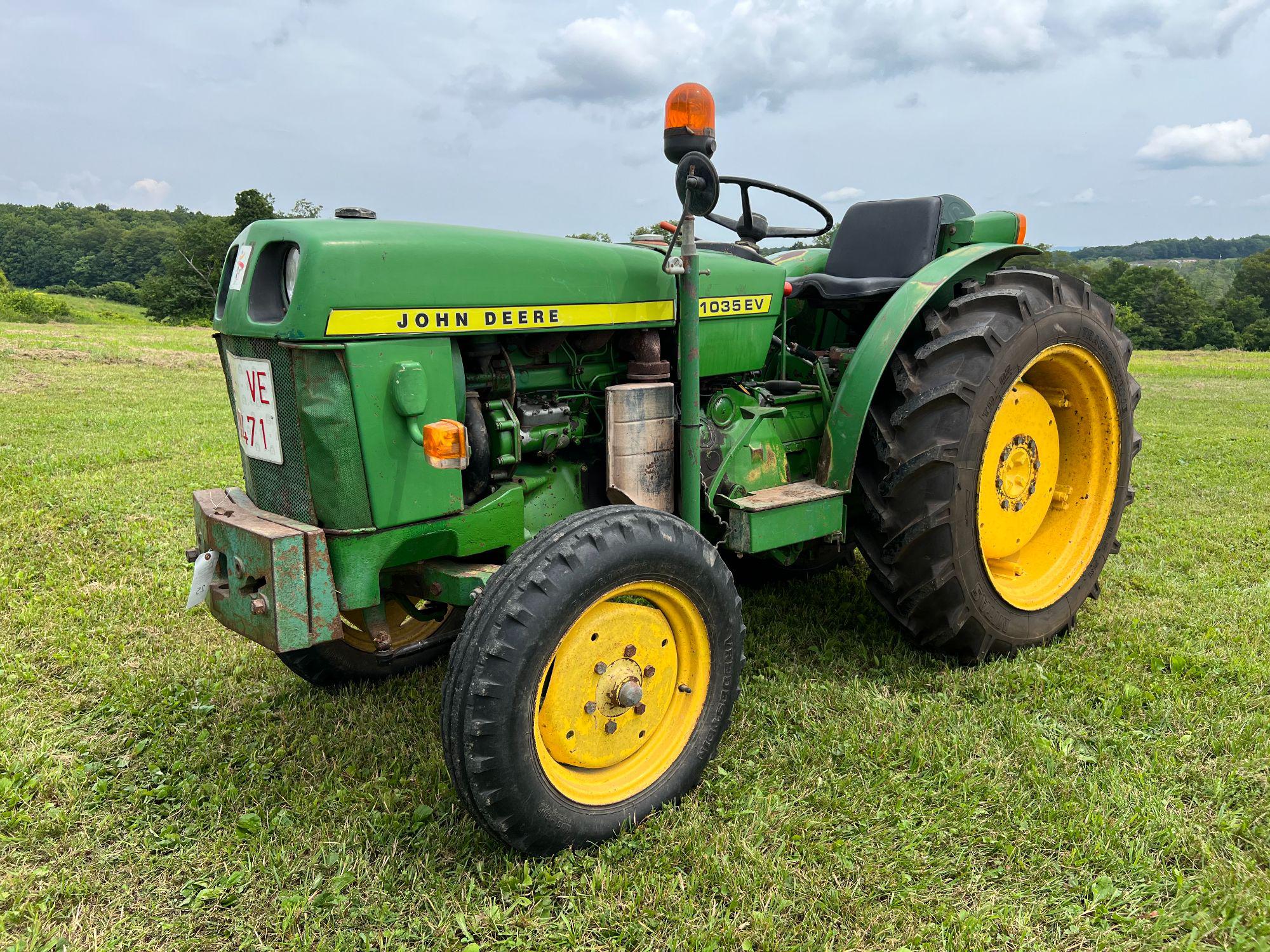

John Deere 1035
John Deere 1035 — Utility tractor · 50 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
50 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Getafe, SpainReference
Two-wheel driveReference
Power steeringReference
Disc brakesReference
Open operator station.Reference
Engine
John Deere 2.7L 3-cyl dieselReference
Fuel tank62.5 LReference
Engine37.5 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.7 LReference
Bore/Stroke102 x 110 mmReference
Power37.5 kWReference
StarterelectricReference
Starter volts12Reference
Oil capacity6.0 LReference
Transmission
8-speed gearReference
TypegearReference
Gears8 forward and 4 reverseReference
PTO & Hydraulics
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
