Tractor · 1974Unverified

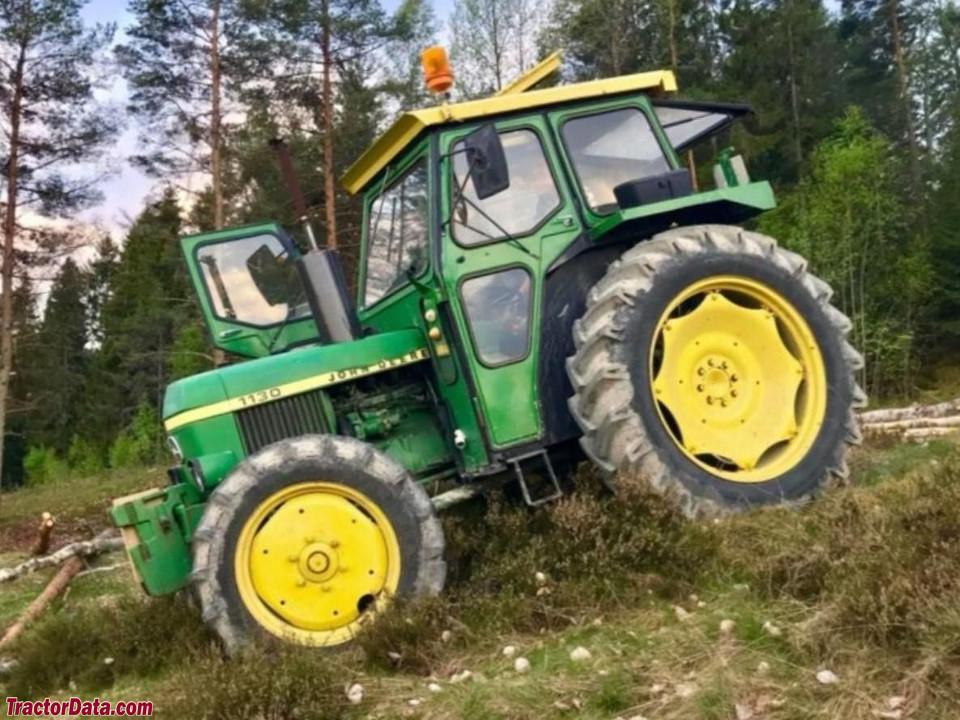

John Deere 1130

Name: John Deere 1130
Brand: John Deere

John Deere 1130 — Utility tractor · 54 hp. Reference specifications; pending source verification.

The John Deere 1130 is a tractor model rated at 54 hp, a compact option in its class. Manufactured from 1974 to 1979, this model features a 3-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a powershift transmission. Its listed weight is 2168 kg, making it suitable for tasks involving approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

54 hp

Weight

2168 kg

Catalogue coverage

Variants represented

Richest spec table

75 rows

Recorded power

54 hp

Recorded weight

2168 kg

Transmissions

8-speed

Production years

1974-1979

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Four-post ROPS. Cab available.Reference

Engine

John Deere 2.7L 3-cyl dieselReference

Engine (gross)40.0 kWReference

Engine (net)38.0 kWReference

John DeereReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.7 LReference

Bore/Stroke102 x 110 mmReference

Power (net)38.0 kWReference

Power (gross)40.0 kWReference

Fuel systemdirect injectionReference

Air cleanerdryReference

Compression16.2:1Reference

Rated RPM2500Reference

Idle RPM650-2650Reference

Operating RPM1400-2500Reference

Torque167.1 NmReference

Torque RPM1400Reference

StarterelectricReference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity10.4 LReference

Transmission

8-speedReference

16-speed two-speed power shiftReference

Gears8 forward and 4 reverseReference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

Oil capacity36.0 LReference

PTO & Hydraulics

PTO (claimed)32.0 kWReference

Hydraulic system36.0 LReference

Typeclosed centerReference

Capacity36.0 LReference

Pressure155.0 barReference

Pump flow25.0 lpmReference

Pump flow46.9 lpmReference

Rear TypeII/IReference

Controllower-link draft sensingReference

Rear lift1824 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Rear PTO Type540/1000Reference

Engine RPM540@2100Reference

Capacities

Fuel62.1 LReference

Dimensions

Wheelbase205 cmReference

Weight2168 kgReference

Front tire7.50x16Reference

Rear tire16.9x28Reference

Standard tires (ag)Front: 7.50x16. Rear: 16.9x28Reference

Length337 cmReference

Width186 cmReference

Height (ROPS)244 cmReference

Height (exhaust)200 cmReference

Shipping weight2168 kgReference

Clearance (front axle)64 cmReference

Front tread125 to 192 cmReference

Rear tread135 to 195 cmReference

1130 Serial Numbers

Location:Serial number plate on the right side of the 1130 tractor frame, above the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps28Reference

Charging volts14Reference

Batteries2Reference

Battery volts12Reference

Battery AH55Reference

Speeds

With 16.9-28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
