Tractor · 1980Unverified

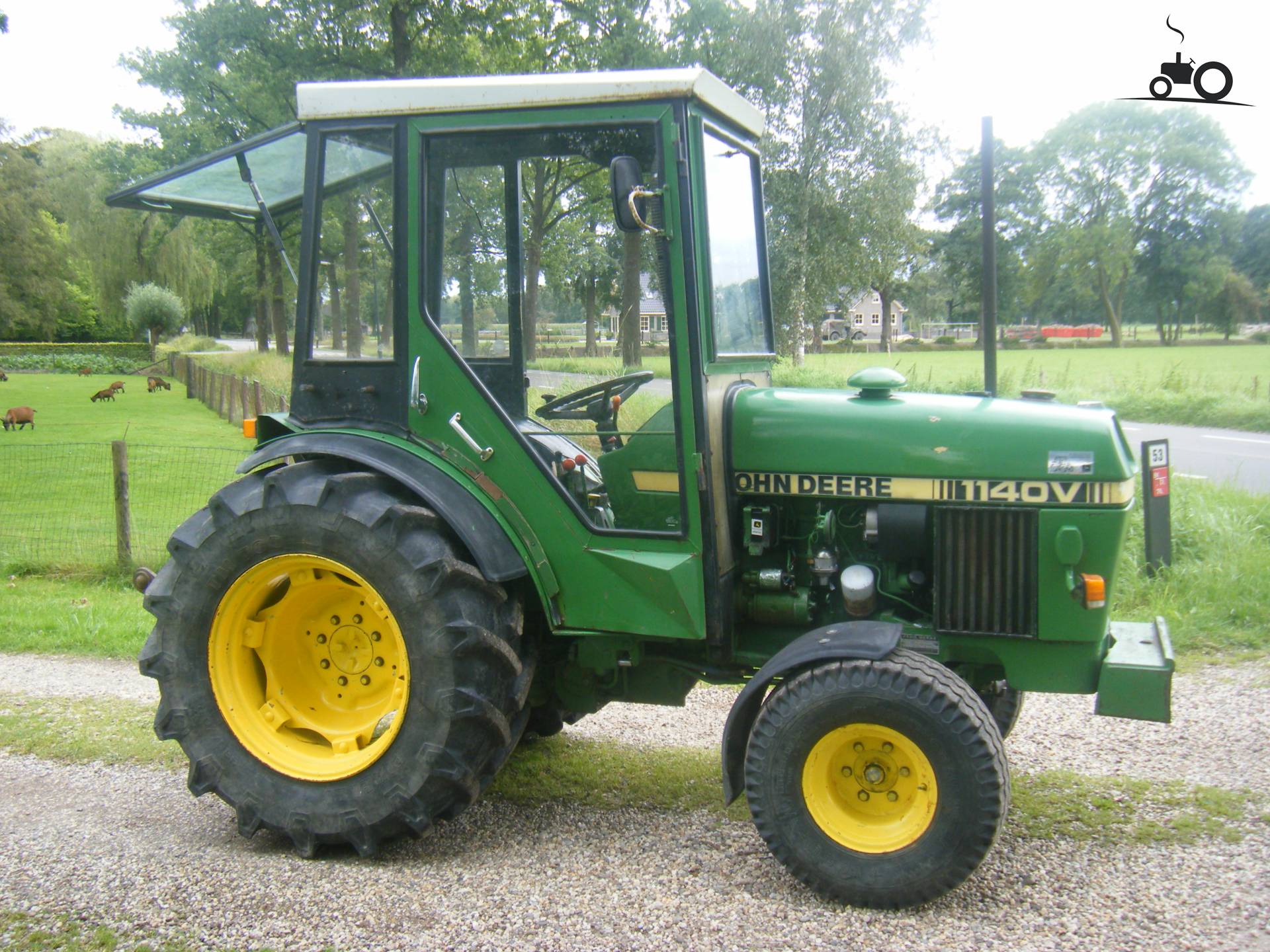

John Deere 1140

Name: John Deere 1140
Brand: John Deere

John Deere 1140 — Utility tractor · 50 hp. Reference specifications; pending source verification.

The John Deere 1140 is a compact tractor, rated at 50 hp, and was manufactured from 1980 to 1987. It features a 3-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with a powershift transmission. The listed weight of this tractor is 2404 kg, and it is designed for use on plots of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

50 hp

Weight

2404 kg

Catalogue coverage

Variants represented

Richest spec table

67 rows

Recorded power

50 hp

Recorded weight

2404 kg

Transmissions

8-speed collar shift

Production years

1980-1987

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Utility tractorReference

Built in Mannheim, Baden-Württemberg, GermanyReference

Two- or four-wheel driveReference

SteeringpowerReference

Hydraulic wet disc brakesReference

Four-post ROPS. Cab optional.Reference

Engine

John Deere 2.9L 3-cyl dieselReference

Engine41.0 kWReference

John DeereReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Power41.0 kWReference

Compression16.8:1Reference

Rated RPM2500Reference

Torque185.0 NmReference

Torque RPM1400Reference

Starter volts12Reference

Starter power3.0 kWReference

Oil capacity7.0 LReference

Coolant capacity15.5 LReference

Transmission

8-speed collar shiftReference

16-speed two-speed power shiftReference

Typecollar shiftReference

Gears8 forward and 4 reverseReference

Oil capacity55.0 LReference

TransmissionHi-LoReference

Typetwo-speed power shiftReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

PTO (claimed)37.0 kWReference

Hydraulic system54.9 LReference

Typeclosed center constant pressureReference

Capacity54.9 LReference

Pressure170.0 barReference

Pump flow46.9 lpmReference

Rear TypeII/IReference

Controllower-link draft controlReference

Rear lift2399 kgReference

Rear PTOindependentReference

Clutchhydraulic discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2400Reference

Capacities

Fuel78.0 LReference

Dimensions

Wheelbase204 cmReference

Weight2404 kgReference

Front tire7.50-16Reference

Rear tire13.6-36 (2WD)Reference

Standard tires (ag)Front: 7.50-16. Rear: 13.6-36 (2WD)Reference

Standard tires (ag)Front: 11.2-24. Rear: 13.6-36 (4WD)Reference

Length350 cmReference

Width181 cmReference

Height (cab)247 cmReference

Height (exhaust)264 cmReference

Shipping weight2404 kgReference

Ground clearance62 cmReference

Front tread125 to 205 cmReference

Rear tread150 to 199 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Batteries2Reference

Battery volts12Reference

Battery AH55Reference

Speeds

With 13.6-36 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
