Tractor · 1986Unverified

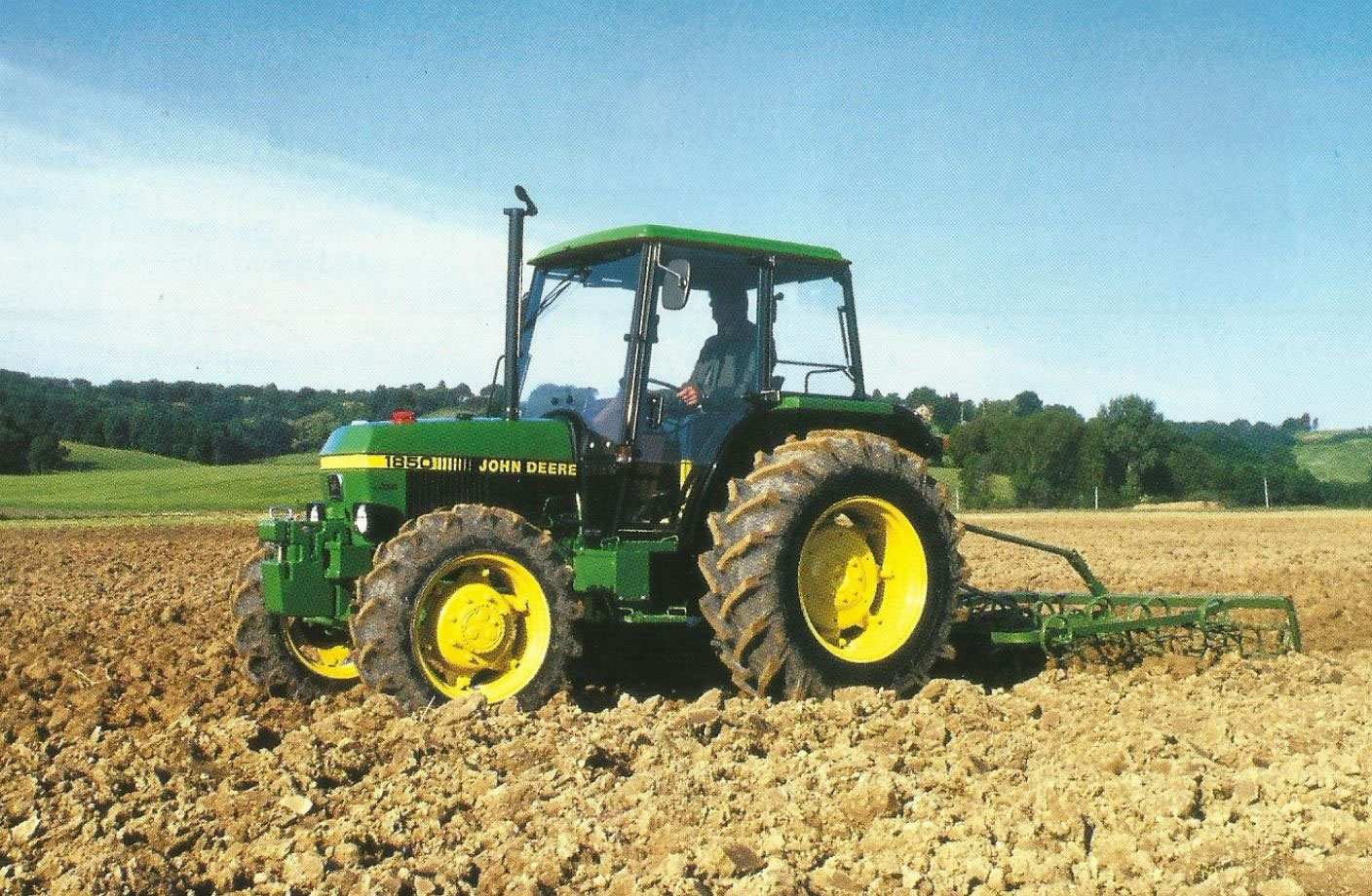

John Deere 1350
John Deere 1350 — Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2431 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two-wheel driveReference
SteeringmanualReference
Hydraulic wet disc brakesReference
four-post ROPS.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank71.9 LReference
Engine28.0 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke107 x 110 mmReference
Power28.0 kWReference
Rated RPM2300Reference
Starter volts12Reference
Starter power2.7 kWReference
Transmission
8-speed synchromeshReference
16-speedReference
12-speed creeperReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Gears16 forward and 8 reverseReference
TypecreeperReference
Gears12 forward and 8 reverseReference
Optional creeper adds additional range to the 8-speed transmission.Reference
PTO & Hydraulics
Pump flow22.0 lpmReference
Pump flow43.9 lpmReference
Rear TypeII/IReference
Rear lift2396 kgReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase220 cmReference
Weight2431 kgReference
Front tire6.50-16Reference
Rear tire9.5-36Reference
Ag front6.50-16Reference
Ag rear9.5-36Reference
Ag rear12.4-28Reference
Ag rear12.4-32Reference
Length375 cmReference
Width166 cmReference
Height204 cmReference
Shipping weight2431 kgReference
Clearance (front axle)53 cmReference
Front tread125 to 205 cmReference
Rear tread125 to 185 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Battery AH88Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
