Tractor · 1987Unverified

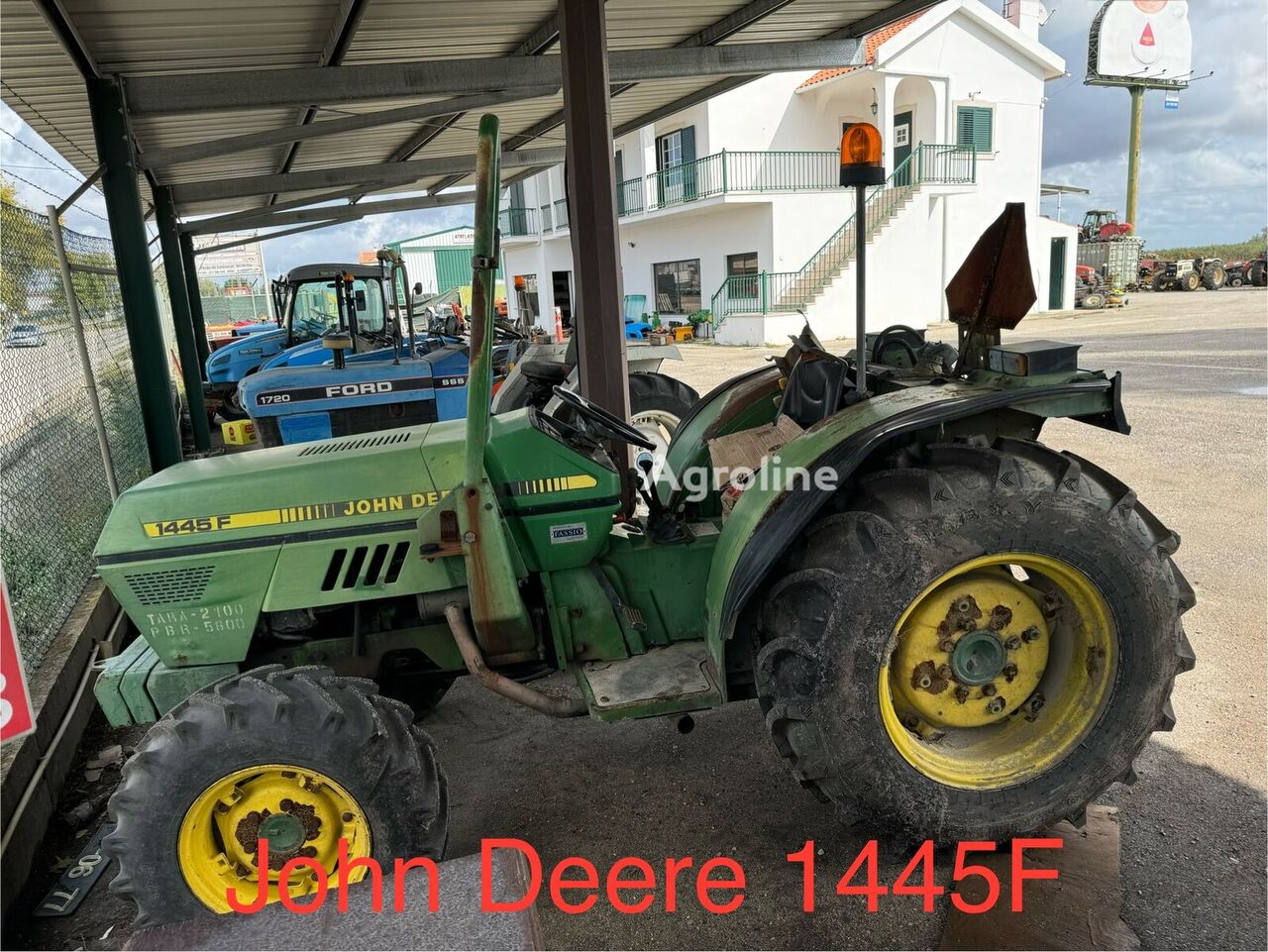

John Deere 1445F
John Deere 1445F — 45F Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
4057 to 4641 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerGoldoniReference
Orchard/Vineyard tractorReference
Built in ItalyReference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post mid-mount folding ROPS. Quick-mount cab available.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank40.1 LReference
Engine30.9 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power30.9 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Torque152.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil change200 hReference
Transmission
8-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears8 forward and 4 reverseReference
Four gears in two ranges, plus reverse range.Reference
TypecreeperReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
Typeopen centerReference
Pressure180.0 barReference
Rear valves3Reference
Mid valves3Reference
Pump flow32.9 lpmReference
Pump flow65.9 lpmReference
Rear TypeIIN/IReference
Controltop-link draft sensingReference
Rear lift (at 24"/610mm)1450 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2165Reference
Engine RPM540E@1624Reference
Dimensions
Wheelbase183 cmReference
Weight4057 to 4641 poundsReference
Front tire7.00-12Reference
2WD Low-Profile Rear tire11.2-24Reference
2WD Low-Profile Standard tires (ag)Front: 7.00-12. Rear: 11.2-24Reference
4WD Low-Profile Standard tires (ag)Front: 6.50-16. Rear: 11.2-24Reference
2WD High-Profile Standard tires (ag)Front: 6.50-16. Rear: 13.6-24Reference
4WD High-Profile Standard tires (ag)Front: 8.25-16. Rear: 11.2-28Reference
Length310 cmReference
Width131 cmReference
2WD Low-Profile Ground clearance35 cmReference
4WD Low-Profile Ground clearance24 cmReference
2WD High-Profile Ground clearance44 cmReference
4WD High-Profile Ground clearance37 cmReference
2WD Front tread114 to 144 cmReference
4WD Front tread112 to 149 cmReference
Rear tread99 to 147 cmReference
2WD ROPS1840 kgReference
2WD Cab1955 kgReference
4WD ROPS1989 kgReference
4WD Cab2105 kgReference
Low-Profile Steering wheel124 cmReference
High-Profile Steering wheel134 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Battery volts12Reference
Battery AH100Reference
Capacities
Max capacity3400 kgReference
John Deere 1445F Height
Low-Profile ROPS199 cmReference
High-Profile ROPS207 cmReference
Low-Profile Cab200 cmReference
High-Profile Cab207 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
