Tractor · 1973Unverified

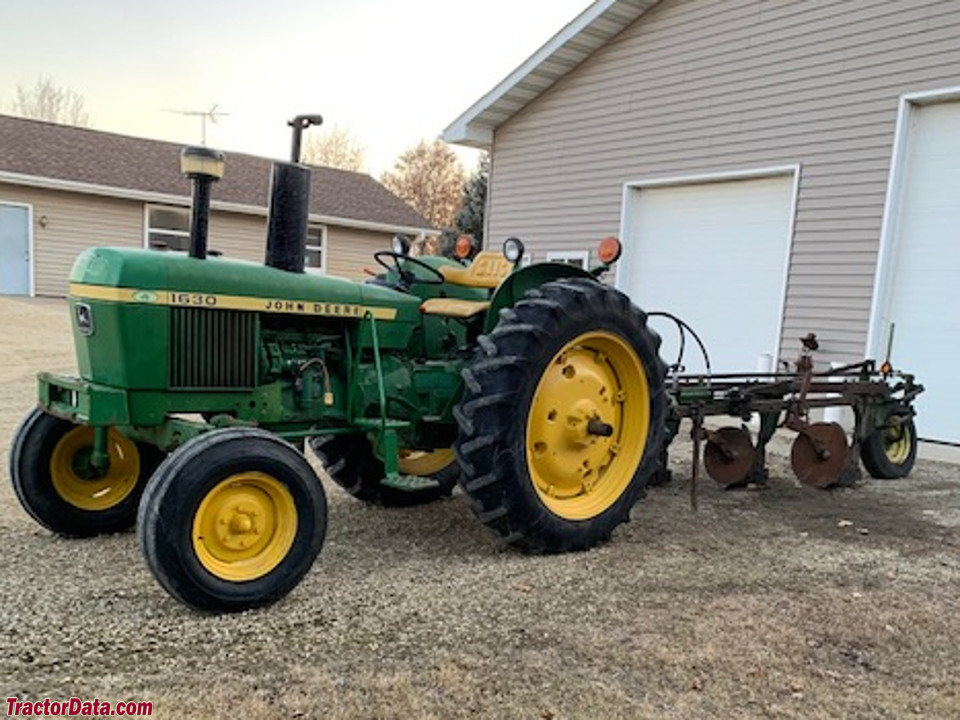

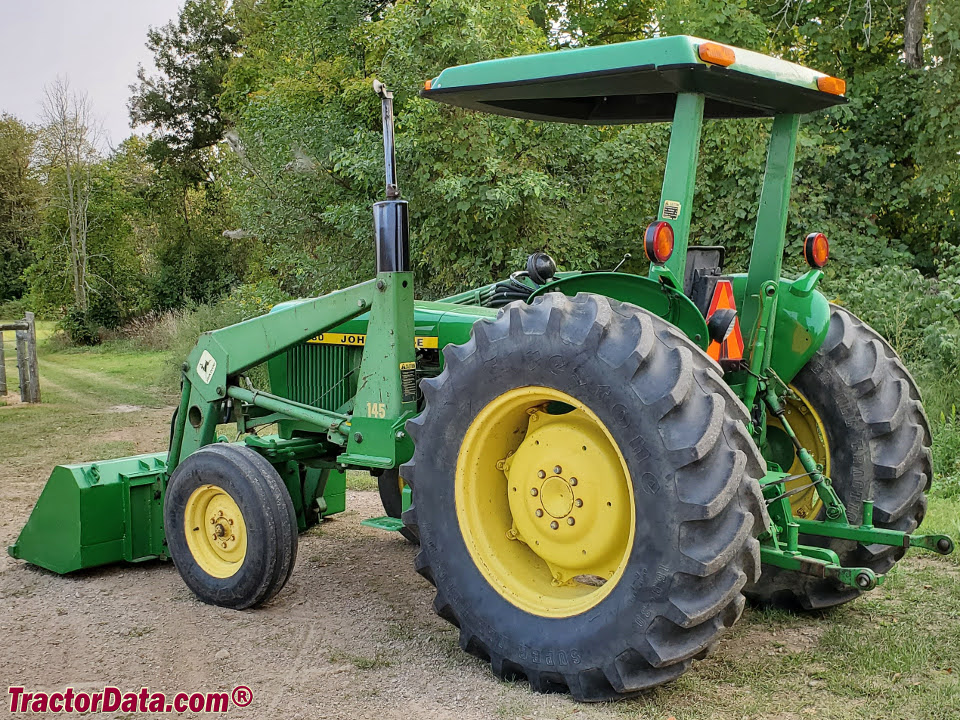

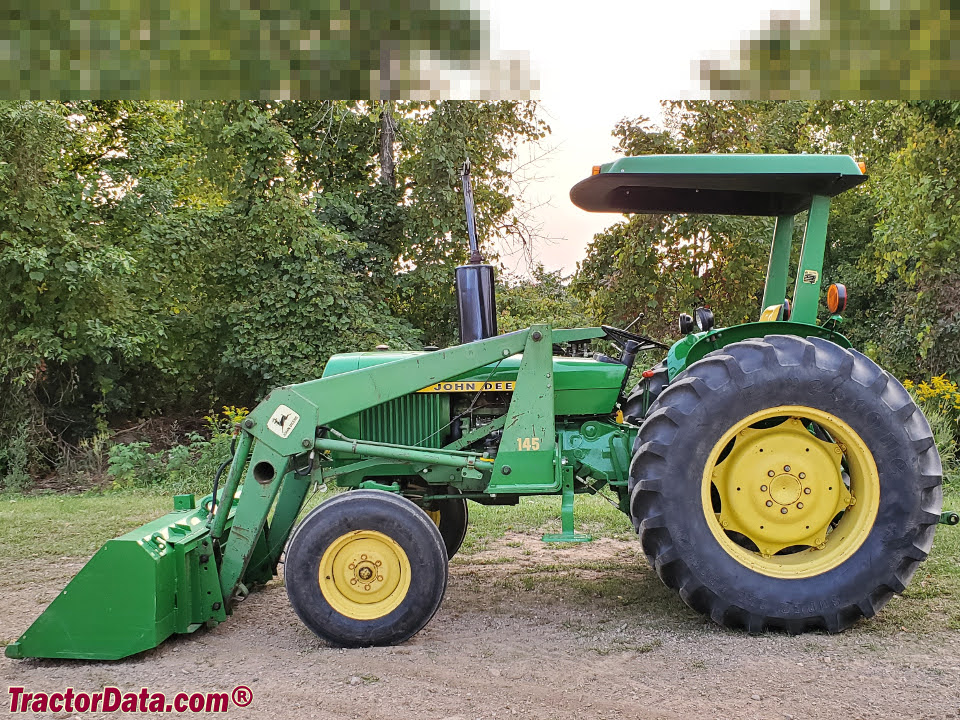

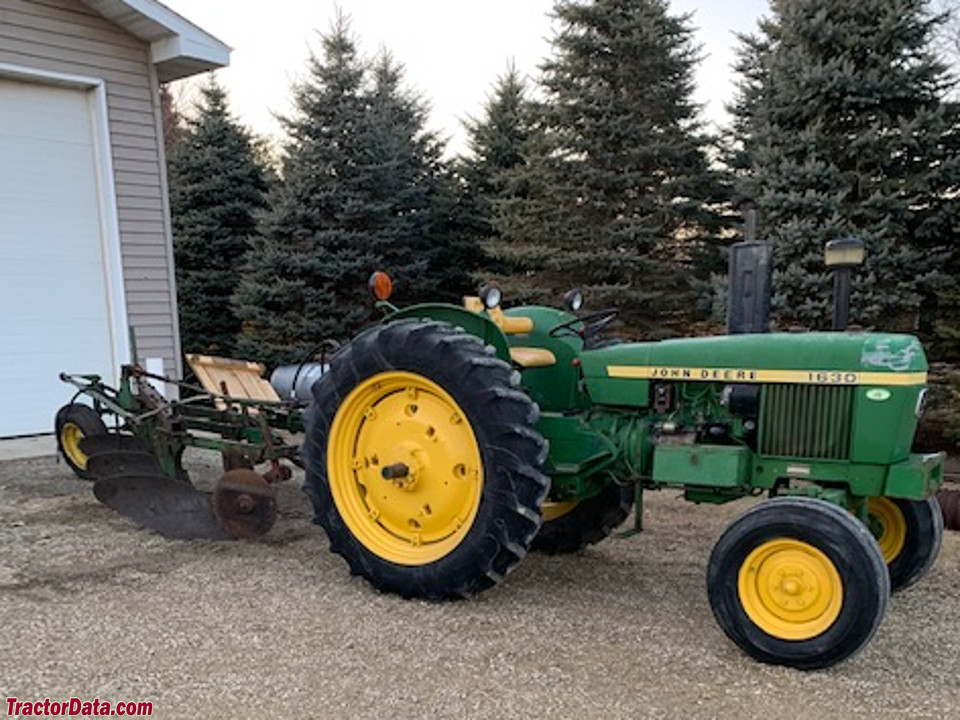

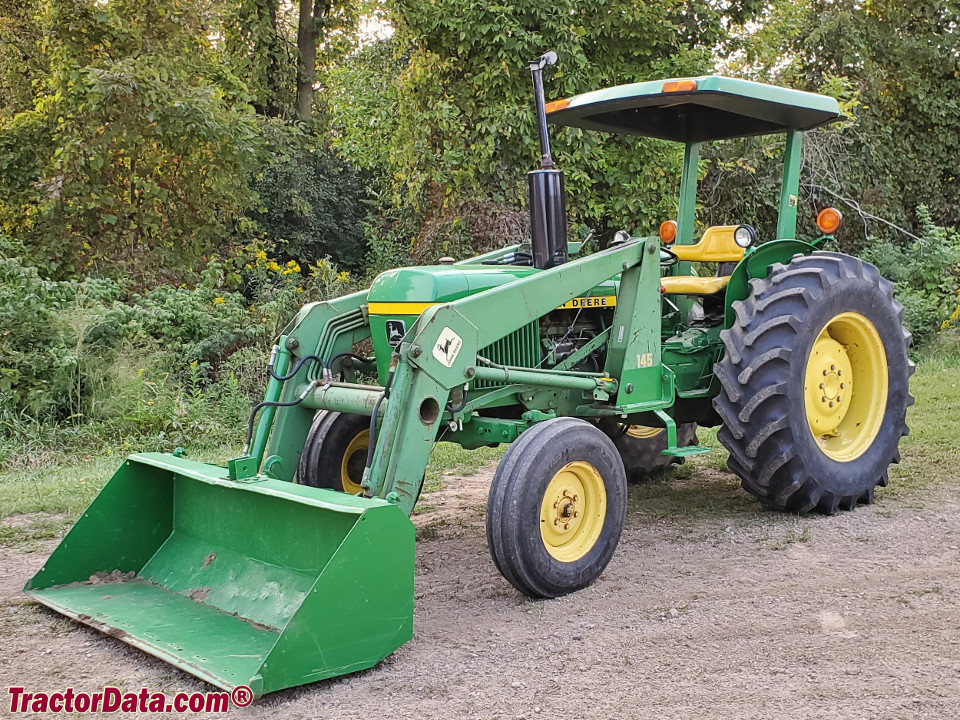

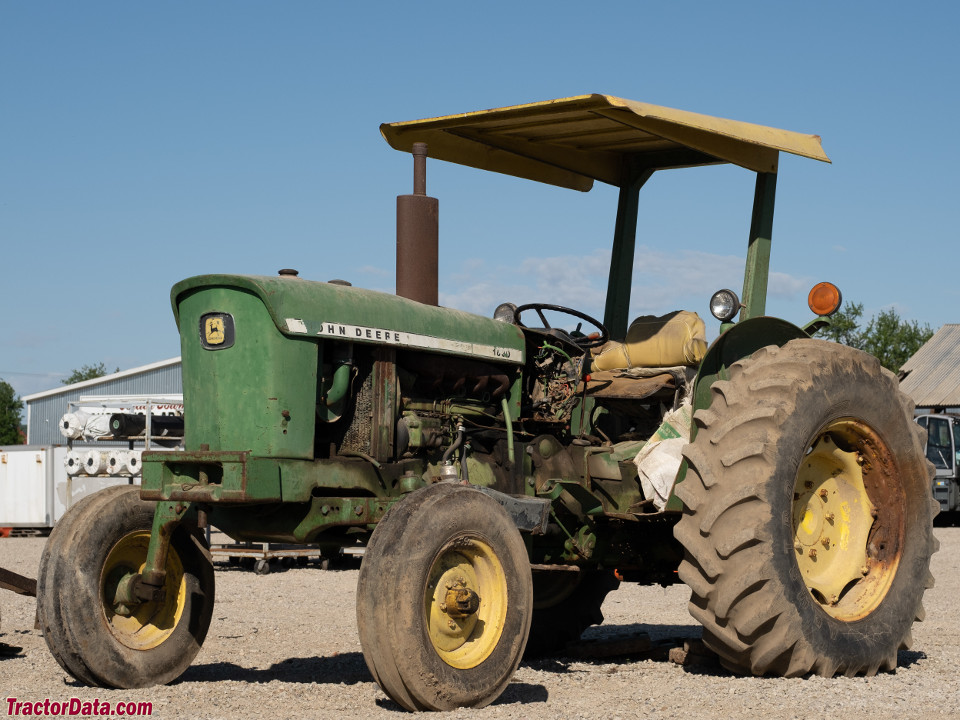

John Deere 1630
John Deere 1630 — Utility tractor · 59 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
59 hp
Weight
2168 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
FactoriesMannheim, Baden-Württemberg, GermanyReference
FactoriesGetafe, SpainReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Hydraulic wet disc brakesReference
Open operator station. ROPS and cab available.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine (gross)44.0 kWReference
Engine (net)41.8 kWReference
John Deere 3179DL-01Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power (net)41.8 kWReference
Power (gross)44.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.2:1Reference
Rated RPM2500Reference
Idle RPM800-2650Reference
Operating RPM1400-2500Reference
Torque188.1 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity5.7 LReference
Coolant capacity11.5 LReference
Transmission
8-speed partially synchronizedReference
16-speed two-speed power shiftReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four synchronized gear in two ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range.Reference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash.Reference
PTO & Hydraulics
PTO (claimed)37.3 kWReference
Hydraulic system36.0 LReference
Typeclosed centerReference
Capacity36.0 LReference
Pressure141.3 barReference
Rear TypeII/IReference
Controlposition control and lower-link draft sensingReference
Rear lift1859 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2100Reference
Capacities
Fuel62.5 LReference
Dimensions
2WD Wheelbase203 cmReference
Weight2168 kgReference
Front tire7.50-16Reference
2WD Rear tire13.6-36Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 13.6-36Reference
4WD Standard tires (ag)Front: 9.50-24. Rear: 13.6-36Reference
Ag front6.50-16Reference
Ag rear16.9/14-28Reference
Ag rear16.9/14-30Reference
Ag rear12.4/11-36Reference
Length359 cmReference
Width194 cmReference
Height (ROPS)246 cmReference
Height (exhaust)221 cmReference
Shipping weight2168 kgReference
2WD Clearance (front axle)50 cmReference
Front tread125 to 205 cmReference
Rear tread144 to 195 cmReference
1630 Serial Number Location
Serial number plate on the right side of the 1630 tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
