Tractor · 1984Unverified

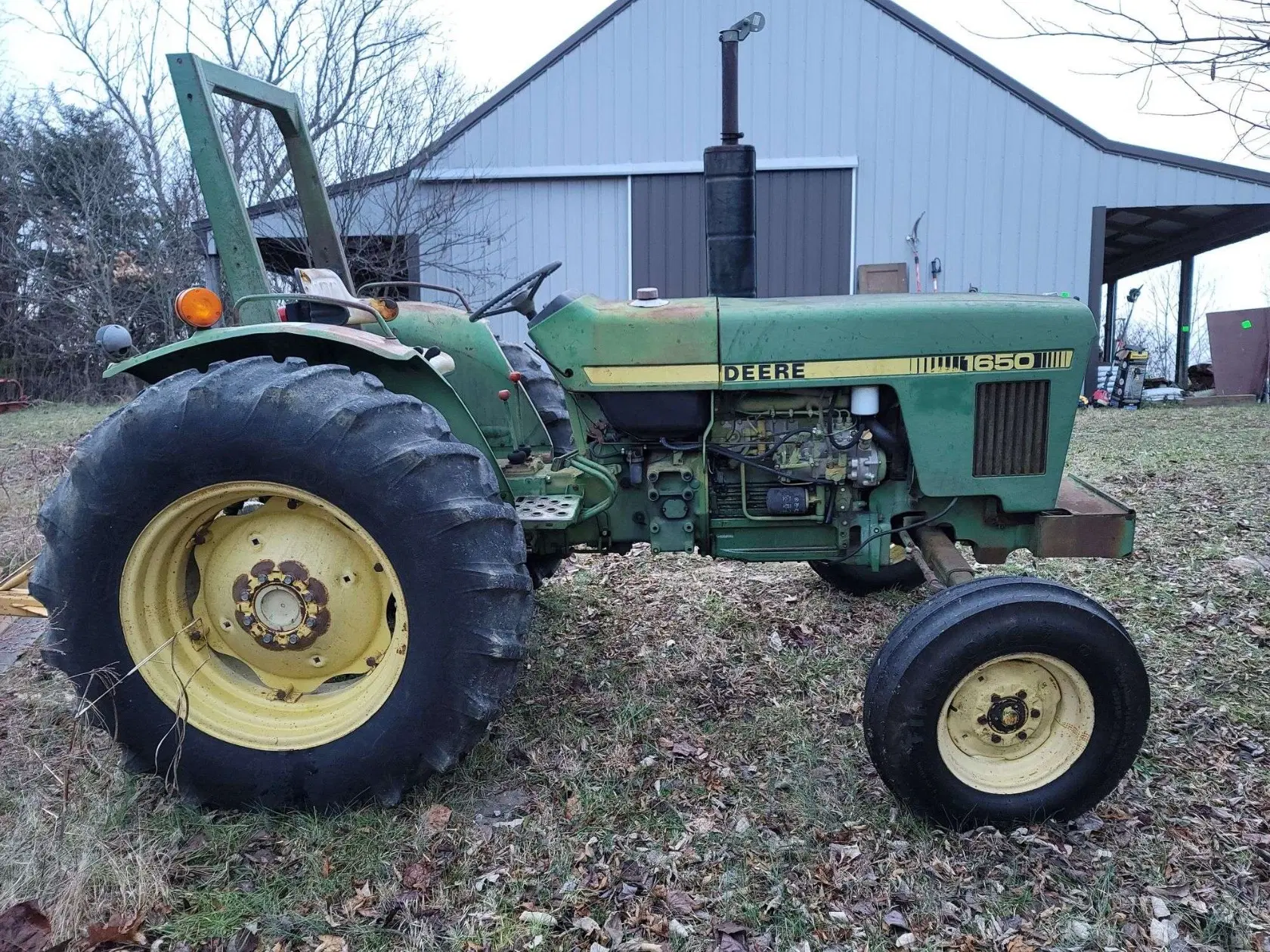

John Deere 1650
John Deere 1650 — Utility tractor · 67 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
67 hp
Max power
38.1 kW
Weight
4630 to 5350 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerYanmarReference
Utility tractorReference
Built in JapanReference
Original price$18,457 (1983 2WD )Reference
Original price$22,809 (1983 4WD )Reference
When tested at Nebraska, the John Deere 1650 set a new fuel economy record, breaking a nearly 30-year record previously held by the John Deere 720.Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanicalReference
Steeringpower assistReference
Differential hydraulic wet disc brakesReference
ROPS.Reference
Engine
Yanmar 3.1L 4-cyl dieselReference
Fuel tank79.9 LReference
Engine (gross)50.0 kWReference
Drawbar (tested)38.1 kWReference
YanmarReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Power (gross)50.0 kWReference
Fuel use12.6 l/hourReference
Fuel systemdirect injectionReference
Air cleanerdual paper elementsReference
Compression18:1Reference
Rated RPM2300Reference
Idle RPM800-2475Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity10.5 LReference
Oil capacity12.0 LReference
Oil change200 hReference
Power at rated engine speed46.4 kWReference
Max power38.1 kWReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
Three gears (1-3) plus reverse (R) in three ranges (I, II, III). Tractor must be stopped, and clutch used, to shift range or gear.Reference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
PTO (tested)46.4 kWReference
Typeopen centerReference
Pressure155.1 barReference
Valves0 to 2Reference
Pump flow38.6 lpmReference
Rear TypeII/IReference
Controlcenter link sensing with position and draft controlReference
Rear lift (at 24"/610mm)1223 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2250Reference
Power at rated PTO speed46.8 kWReference
Dimensions
2WD Wheelbase210 cmReference
4WD Wheelbase210 cmReference
Weight4630 to 5350 poundsReference
Front tire6.50-16Reference
2WD Rear tire16.9-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 16.9-28Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-28Reference
4WD Optional tires (ag)Front: 12.4-24. Rear: 16.9-30Reference
Lawn/turf front27x9.50-15Reference
Lawn/turf rear21.5L-16.1Reference
Length371 cmReference
2WD Width182 cmReference
4WD Width184 cmReference
2WD Front tread144 to 194 cmReference
4WD Front tread139 to 202 cmReference
Rear tread139 to 210 cmReference
Shipping2100 kgReference
Shipping2399 kgReference
Operating2426 kgReference
Ballasted3531 kgReference
John Deere 1650 attachments
front-end loaderReference
1650 Serial Numbers
Location:Serial number plate below the PTO on rear of transfer case.Reference
19841021Reference
19852401Reference
19863001Reference
19873501Reference
19883579Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps25Reference
Battery CCA485Reference
Battery volts12Reference
John Deere 1650 Height
2WD Hood149 cmReference
4WD Hood152 cmReference
2WD ROPS225 cmReference
4WD ROPS226 cmReference
Test results
Diesel 9-speed 2WDOctober 31 - November 11, 1983Link: Nebraska Tractor Test 1506 fileReference
PTO performanceReference
Fuel use12.5 l/hourReference
Drawbar performanceReference
Fuel use12.1 l/hourReference
Max pull2981 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
