Tractor · 1973Unverified

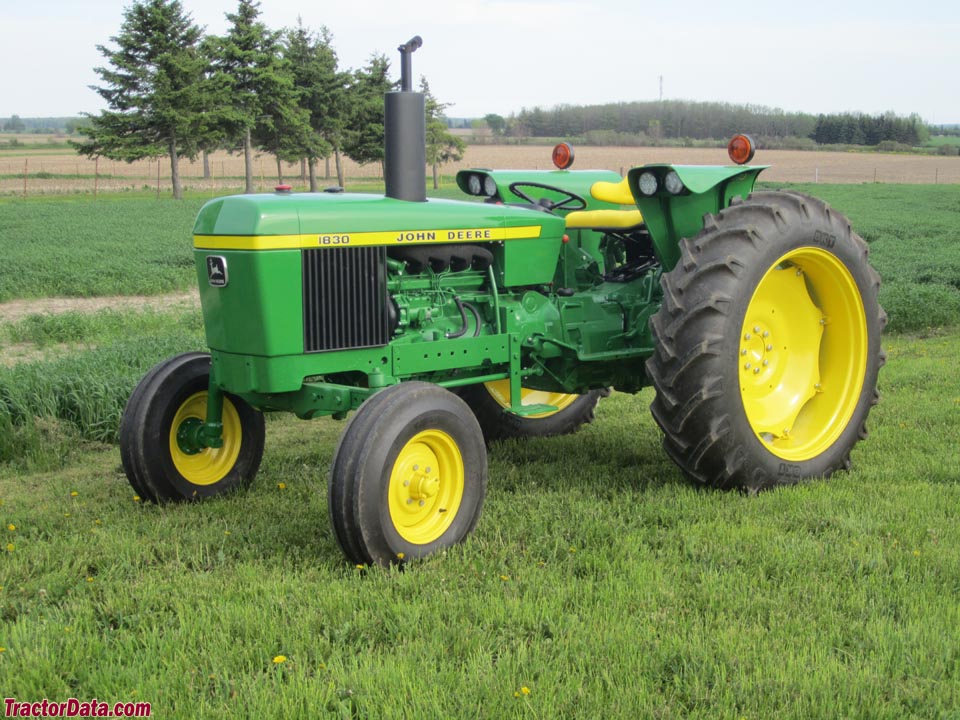

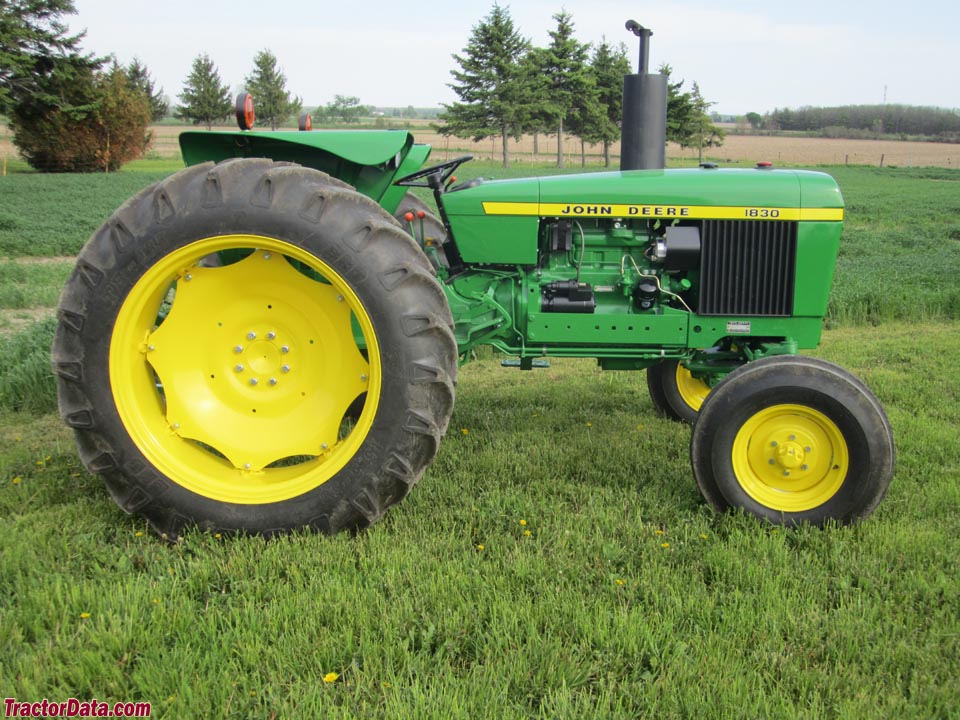

John Deere 1830
John Deere 1830 — Utility tractor · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
2540 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
The John Deere model 1830 was the designation for model 2030 tractors built in Mannheim that were exported to Canada. The name change to 1830 was done to avoid confusion with the model 2030 built in Dubuque.Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Power steeringReference
Hydraulic wet disc brakesReference
Open operator station.Reference
Engine
John Deere 3.6L 4-cyl dieselReference
Fuel tank74.9 LReference
Engine50.7 kWReference
John DeereReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.6 LReference
Bore/Stroke102 x 110 mmReference
Power50.7 kWReference
Air cleanerdryReference
Compression16.8:1Reference
Rated RPM2500Reference
Idle RPM650-2660Reference
Torque221.0 NmReference
Torque RPM1500Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Oil capacity8.5 LReference
Coolant capacity11.4 LReference
Intake valve clearance0.381 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
8-speed gearReference
16-speed two-speed power shiftReference
TypegearReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
TransmissionHi-LoReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)44.7 kWReference
Typeclosed centerReference
Pressure155.1 barReference
Rear TypeII/IReference
Controlposition control and lower-link draft sensingReference
Rear lift1428 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Dimensions
2WD Wheelbase217 cmReference
4WD Wheelbase214 cmReference
Weight2540 kgReference
Front tire7.50-16Reference
Rear tire15.5-38Reference
Ag front7.50-16Reference
Ag rear15.5-38Reference
Ag rear16.9-30Reference
Length359 cmReference
Width194 cmReference
John Deere 1830 attachments
front-end loaderReference
1830 Serial Number Location
Serial number plate on the right side of the tractor's frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Batteries2Reference
Battery volts12Reference
John Deere 1830 Height
Hood152 cmReference
ROPS261 cmReference
Exhaust222 cmReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
