Tractor · 1987Unverified

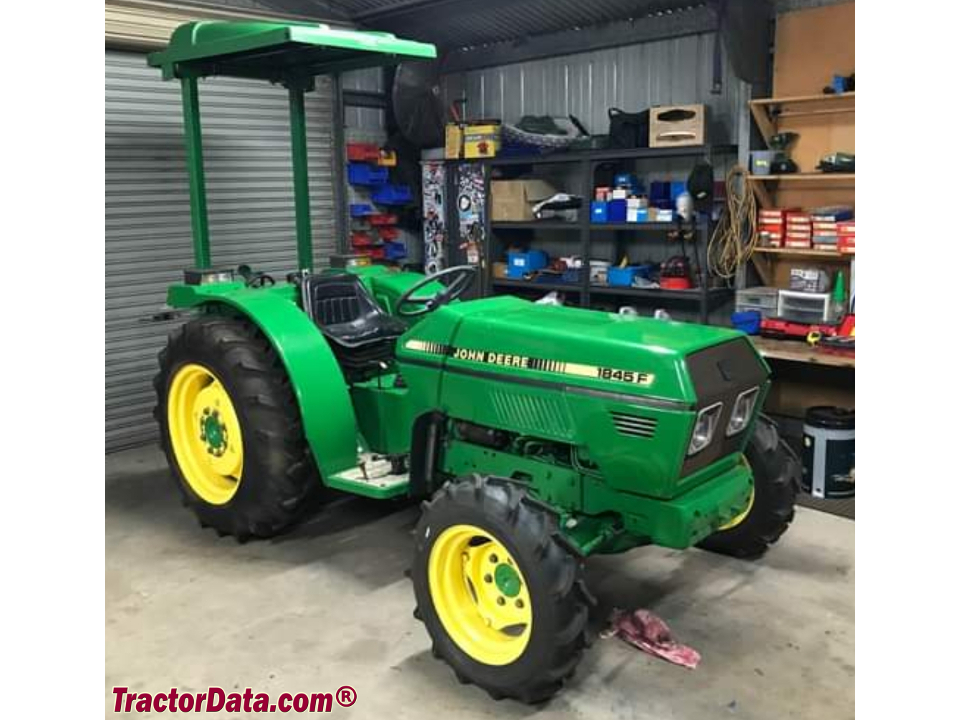

John Deere 1845F

Name: John Deere 1845F
Brand: John Deere

John Deere 1845F — 45F Series · 55 hp. Reference specifications; pending source verification.

The John Deere 1845F is a tractor with a rated power output of 55 hp, situated at the lower end of its class in terms of power. Built from 1987 to 1990, it features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and an 8-speed gearbox. The operating weight of this model ranges from 4057 to 4641 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

55 hp

Weight

4057 to 4641 pounds

Catalogue coverage

Variants represented

Richest spec table

79 rows

Recorded power

55 hp

Transmissions

8-speed synchronized

Production years

1987-1990

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerGoldoniReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post mid-mount folding ROPS. Quick-mount cab available.Reference

Engine

John Deere 2.9L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine41.2 kWReference

John DeereReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Power41.2 kWReference

Air cleanerdryReference

Rated RPM2300Reference

Torque195.0 NmReference

Torque RPM1300Reference

StarterelectricReference

Starter volts12Reference

Oil change200 hReference

Transmission

8-speed synchronizedReference

16-speed creeperReference

TypesynchronizedReference

Gears8 forward and 4 reverseReference

Four gears in two ranges, plus reverse range.Reference

TypecreeperReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure180.0 barReference

Rear valves3Reference

Mid valves3Reference

Pump flow32.9 lpmReference

Pump flow65.9 lpmReference

Rear TypeIIN/IReference

Controltop-link draft sensingReference

Rear lift (at 24"/610mm)1450 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2165Reference

Engine RPM540E@1624Reference

Dimensions

Wheelbase183 cmReference

Weight4057 to 4641 poundsReference

Front tire7.00-12Reference

2WD Low-Profile Rear tire14.5-20Reference

2WD Low-Profile Standard tires (ag)Front: 7.00-12. Rear: 14.5-20Reference

4WD Low-Profile Standard tires (ag)Front: 10.0/75-15.3. Rear: 380/70-24Reference

2WD High-Profile Standard tires (ag)Front: 7.50-16. Rear: 14.9-24Reference

4WD High-Profile Standard tires (ag)Front: 7.50-18. Rear: 12.4-28Reference

Length310 cmReference

Width131 cmReference

2WD Low-Profile Ground clearance35 cmReference

4WD Low-Profile Ground clearance24 cmReference

2WD High-Profile Ground clearance44 cmReference

4WD High-Profile Ground clearance37 cmReference

2WD Front tread114 to 144 cmReference

4WD Front tread112 to 149 cmReference

Rear tread99 to 147 cmReference

2WD ROPS1840 kgReference

2WD Cab1955 kgReference

4WD ROPS1989 kgReference

4WD Cab2105 kgReference

Low-Profile Steering wheel124 cmReference

High-Profile Steering wheel134 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps35Reference

Battery volts12Reference

Battery AH100Reference

Capacities

Max capacity3400 kgReference

John Deere 1845F Height

Low-Profile ROPS199 cmReference

High-Profile ROPS207 cmReference

Low-Profile Cab200 cmReference

High-Profile Cab207 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
