Tractor · 1988Unverified

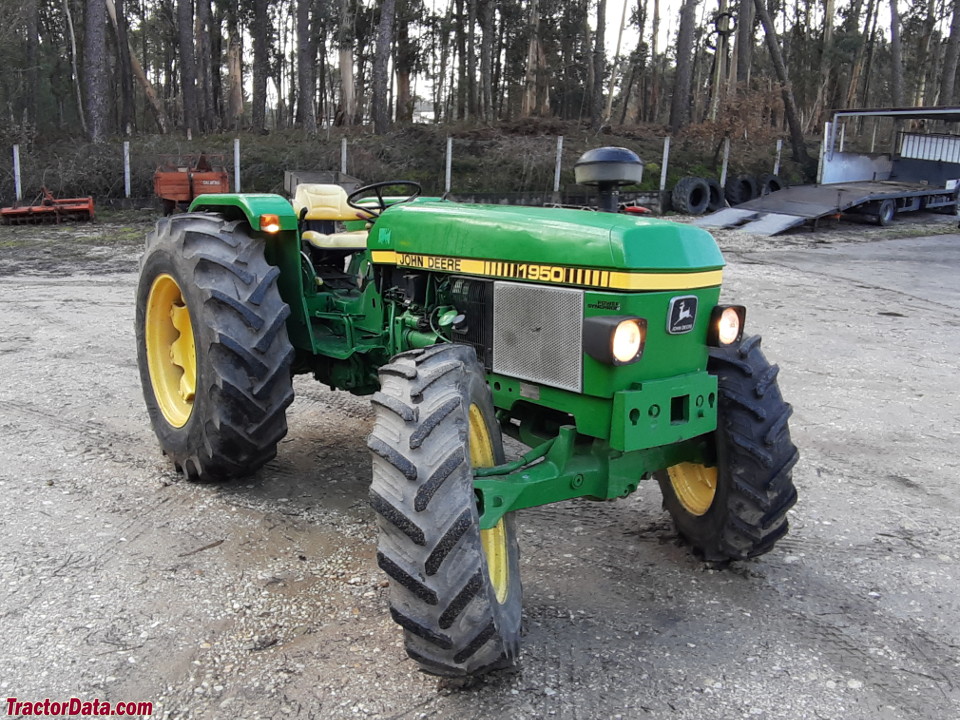

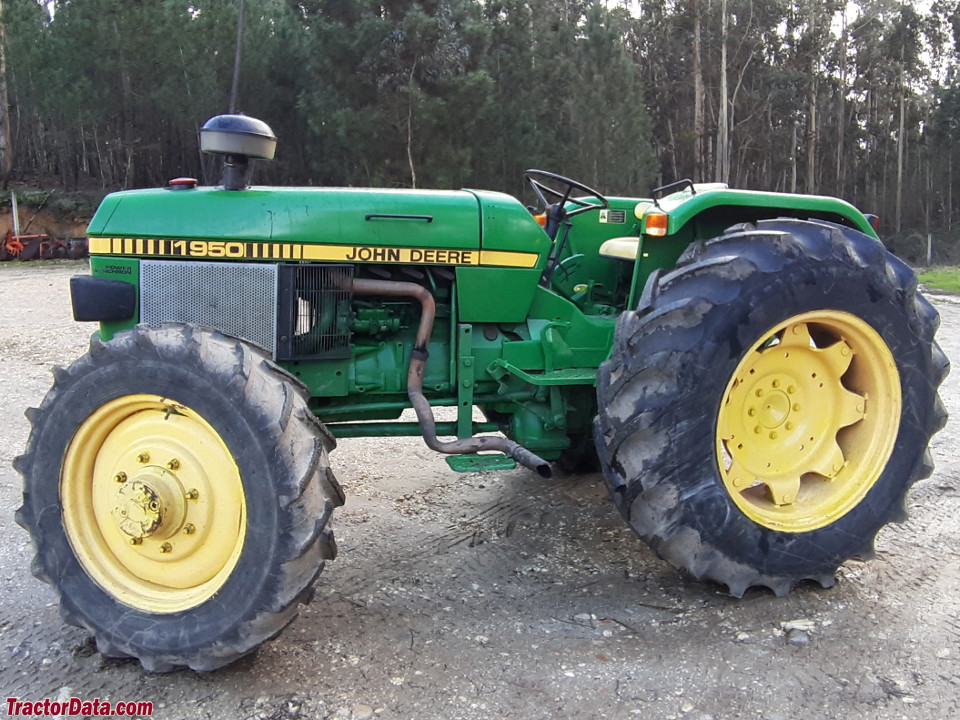

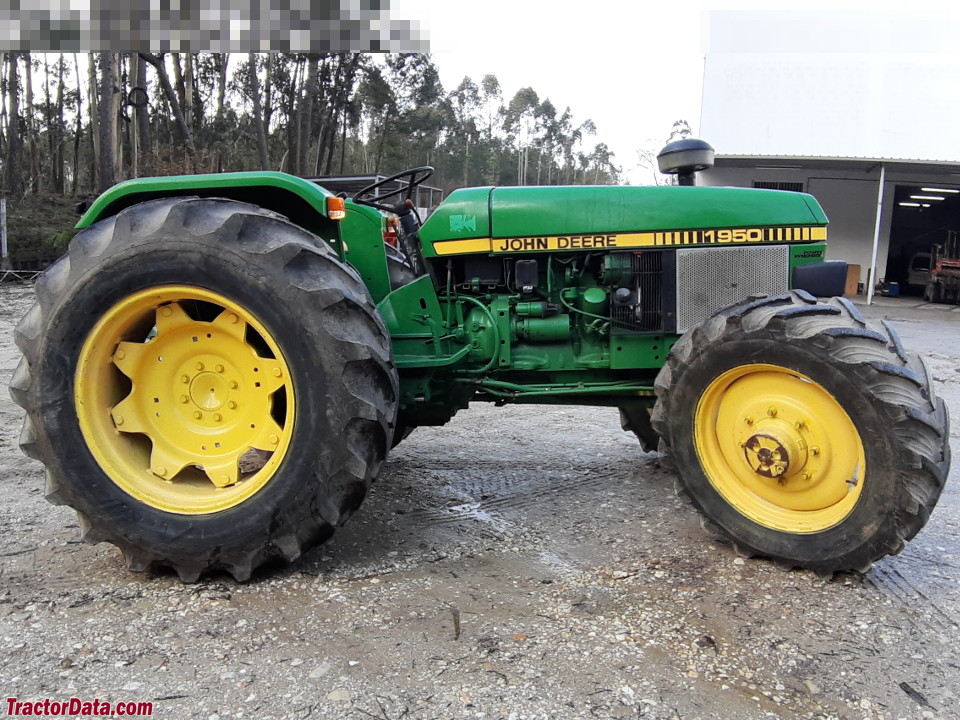

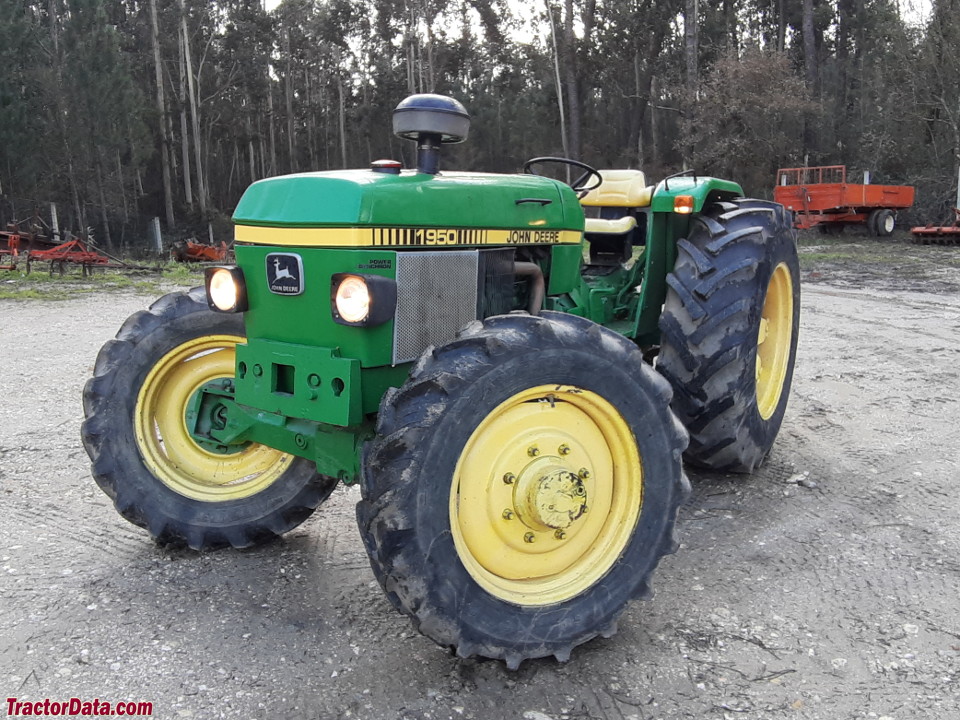

John Deere 1950
John Deere 1950 — Utility tractor · 62 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
62 hp
Weight
5798 to 6845 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
SteeringmanualReference
SteeringpowerReference
Hydraulic wet disc brakesReference
ROPS. Optional MC1 cab, or CC2 cab after 1990.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank71.9 LReference
Engine (net)46.0 kWReference
John DeereReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power (net)46.0 kWReference
Air cleanerdryReference
Rated RPM2300Reference
Torque229.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Oil change200 hReference
Transmission
8-speed synchromeshReference
16-speed two-speed power shiftReference
12-speed creeperReference
TypesynchromeshReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four synchronized gears (1-4) in two ranges (I/II) plus reverse range.Reference
TransmissionPower SynchronReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
The optional Power Synchron transmission adds a left-hand power shift to the basic transmission.Reference
TypecreeperReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
Typeclosed centerReference
Pressure190.0 barReference
Pump flow43.9 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2075Reference
Engine RPM1000@2172Reference
Dimensions
2WD Wheelbase215 cmReference
4WD Wheelbase215 cmReference
Weight5798 to 6845 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 14.9-30Reference
2WD Optional tires (ag)Front: 7.50-16. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 10.5-18. Rear: 14.9-30Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 12.4-36Reference
4WD Optional tires (ag)Front: 11.2-24. Rear: 13.6-36Reference
4WD Optional tires (ag)Front: 12.5-20. Rear: 14.9-30Reference
4WD Optional tires (ag)Front: 12.5-20. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 14.5-20. Rear: 16.9-30Reference
Length376 cmReference
Width185 cmReference
Height (cab)243 cmReference
2WD Clearance (front axle)64 cmReference
4WD Clearance (front axle)43 cmReference
2WD Front tread125 to 205 cmReference
4WD Front tread141 to 188 cmReference
Rear tread130 to 199 cmReference
2WD ROPS Shipping2629 kgReference
2WD Cab Shipping2790 kgReference
4WD ROPS Shipping2945 kgReference
4WD Cab Shipping3104 kgReference
1950 Serial Number Location
Serial number plate on the right side of the 1950 tractor frame, above the front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps85Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
