Tractor · 1960Unverified

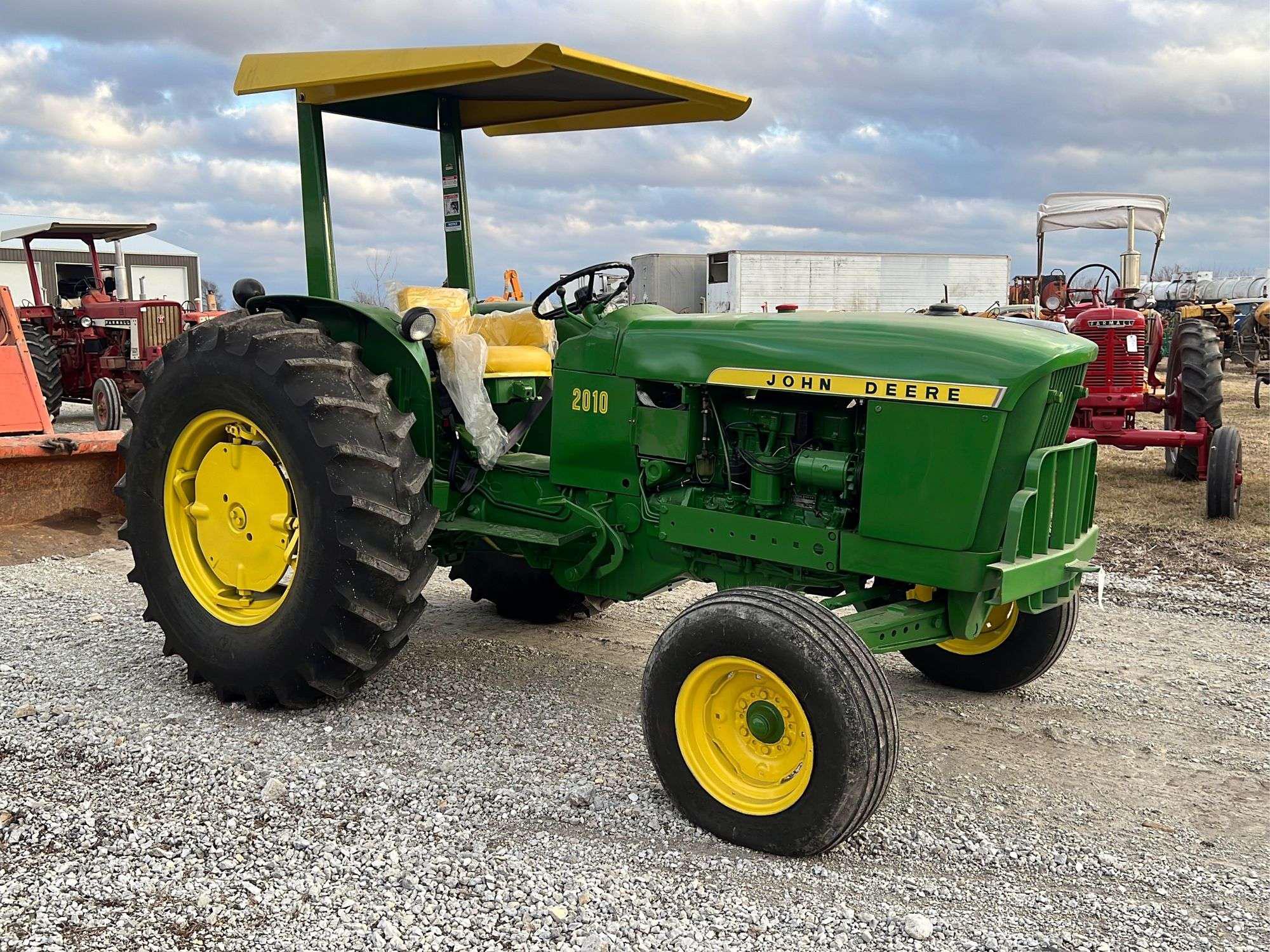

John Deere 2010
John Deere 2010 — New Generation Series · 47 hp. Reference specifications; pending source verification.
The John Deere 2010 is a tractor with a rated power of 47 hp, categorising it at the lighter end of its class. This model was manufactured between 1960 and 1965. It features a 4-cylinder diesel liquid-cooled engine, paired with two-wheel drive and an 8-speed gearbox. The operating weight of the John Deere 2010 ranges from 4700 to 5120 pounds, and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Max power
29.3 kW
Weight
4700 to 5120 pounds
Catalogue coverage
Variants represented
2
Richest spec table
134 rows
Recorded power
47 hp
Transmissions
8-speed
Production years
1960-1965
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Row-Crop tractorReference
Built in Dubuque, Iowa, USAReference
Original price was $4,600 in 1965Reference
Two-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
2010ag tractorReference
2010Cag crawlerReference
2010 Hi-Crophigh-clearanceReference
Dimensions
2010 Wheelindustrial tractorReference
Row-crop Wheelbase228 cmReference
Utility Wheelbase220 cmReference
Weight4700 to 5120 poundsReference
Front tire6.00/6.50/7.50-16Reference
Rear tire12.4/13.6/14.9-28Reference
Ag front6.00/6.50/7.50-16 (utility)Reference
Ag rear12.4/13.6/14.9-28 (utility)Reference
Ag front6.00-14Reference
Ag front6.50-16Reference
Ag front9.00-10 (row-crop)Reference
Ag rear11.2/12.4/13.9-36 (row-crop)Reference
Row-crop Length355 cmReference
Utility Length354 cmReference
Row-crop Width218 cmReference
Utility Width180 cmReference
Row-crop Clearance (front axle)60 cmReference
Utility Clearance (front axle)49 cmReference
Gas row-crop Shipping2131 kgReference
Diesel row-crop Shipping2177 kgReference
Gas utility Shipping2199 kgReference
Diesel utility Shipping2231 kgReference
Gas Operating2292 kgReference
Diesel Operating2322 kgReference
Ballasted2899 kgReference
Engine
John Deere 2.4L 4-cyl gasolineReference
John Deere 2.7L 4-cyl dieselReference
John Deere 2.4L 4-cyl LP gasReference
Drawbar (tested)29.3 kWReference
John DeereReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement2.4 LReference
Bore/Stroke92 x 89 mmReference
Air cleaneroil bathReference
Compression8.3:1Reference
Rated RPM2500Reference
Starter volts12Reference
dieselReference
Displacement2.7 LReference
Bore/Stroke98 x 89 mmReference
Pre-heatingglow plugsReference
Compression19:1Reference
LP gasReference
Compression8.9:1Reference
Power at rated engine speed34.8 kWReference
Max power29.3 kWReference
Power at rated engine speed34.9 kWReference
Max power29.2 kWReference
Fuel TypeDieselReference
No of Cylinders4-cylinder | 4-cylinder | 4-cylinderReference
Rated engine speed2,500 | 2,500 | 2,500Reference
Bore and stroke3.625x3.50 inchesReference
Compression ratio8.3:1 | 19:1 | 8.9:1Reference
Cooling systemliquid-cooled | liquid-cooled | liquid-cooledReference
Transmission
8-speedReference
TransmissionJohn Deere Syncro-RangeReference
Gears8 forward and 3 reverseReference
forward and reverse options8 forward and 3 reverseReference
PTO & Hydraulics
PTO (tested)34.9 kWReference
Hydraulic system30.3 LReference
Typeopen centerReference
Capacity30.3 LReference
Pressure79.3 barReference
Valves1 or 2Reference
Total flow41.6 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear PTOindependentReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@1900Reference
Power at rated PTO speed28.8 kWReference
Power at rated PTO speed28.7 kWReference
Capacities
Fuel60.6 LReference
John Deere 2010 attachments
front-end loaderReference
2010 Serial Number Location
Right-hand side of engine block.Reference
2010 Serial Numbers
196110001Reference
196219240Reference
196329001Reference
196442001Reference
196554826Reference
Final68259Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundpositiveReference
Charging systemgeneratorReference
Gas Battery CCA420Reference
Diesel Battery CCA625Reference
Battery volts12Reference
John Deere 2010 Height
Row-crop Hood152 cmReference
Utility Hood141 cmReference
Row-crop Exhaust217 cmReference
Test results
NTTL 799: diesel 8-speed 2WDReference
NTTL 800: gasoline 8-speed 2WDReference
Diesel 8-speed 2WDJune 6 - 22, 1961Link: Nebraska Tractor Test 799 fileReference
PTO performanceReference
Fuel use14.0 l/hourReference
Fuel use11.0 l/hourReference
Drawbar performanceReference
Fuel use13.6 l/hourReference
Gear 3 used for power test.Reference
Max pull2065 kgReference
Gear 1 used for pull test.Reference
Gasoline 8-speed 2WDJune 13 - 22, 1961Link: Nebraska Tractor Test 800 fileReference
Fuel use15.1 l/hourReference
Fuel use12.1 l/hourReference
Fuel use14.8 l/hourReference
Max pull2084 kgReference
General
Make & ModelJohn DeereReference
PTO
Rear PTO PowerAvailableReference
Hydraulics
Hydraulics Typeopen centerReference
Maximum operating pressure1,150 psiReference
Remote Valves1 or 2Reference
Rear Hitch category (SAE designation)Category II/IReference
Rear Hitch Sensing Typeposition and draft controlReference
Dimensions & weight
Wheelbase221 cmReference
Overall Height141.2 cmReference
Overall Length355 cmReference
Overall Width180.3 cmReference
Wheels & tyres
Rear wheel tread range12.4/13.6/14.9-28 (utility), 11.2/12.4/13.9-36 (row-crop) inchReference
Front Wheel Type6.00/Reference
Steering & brakes
Steering typepowerReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
