Tractor · 1960Unverified

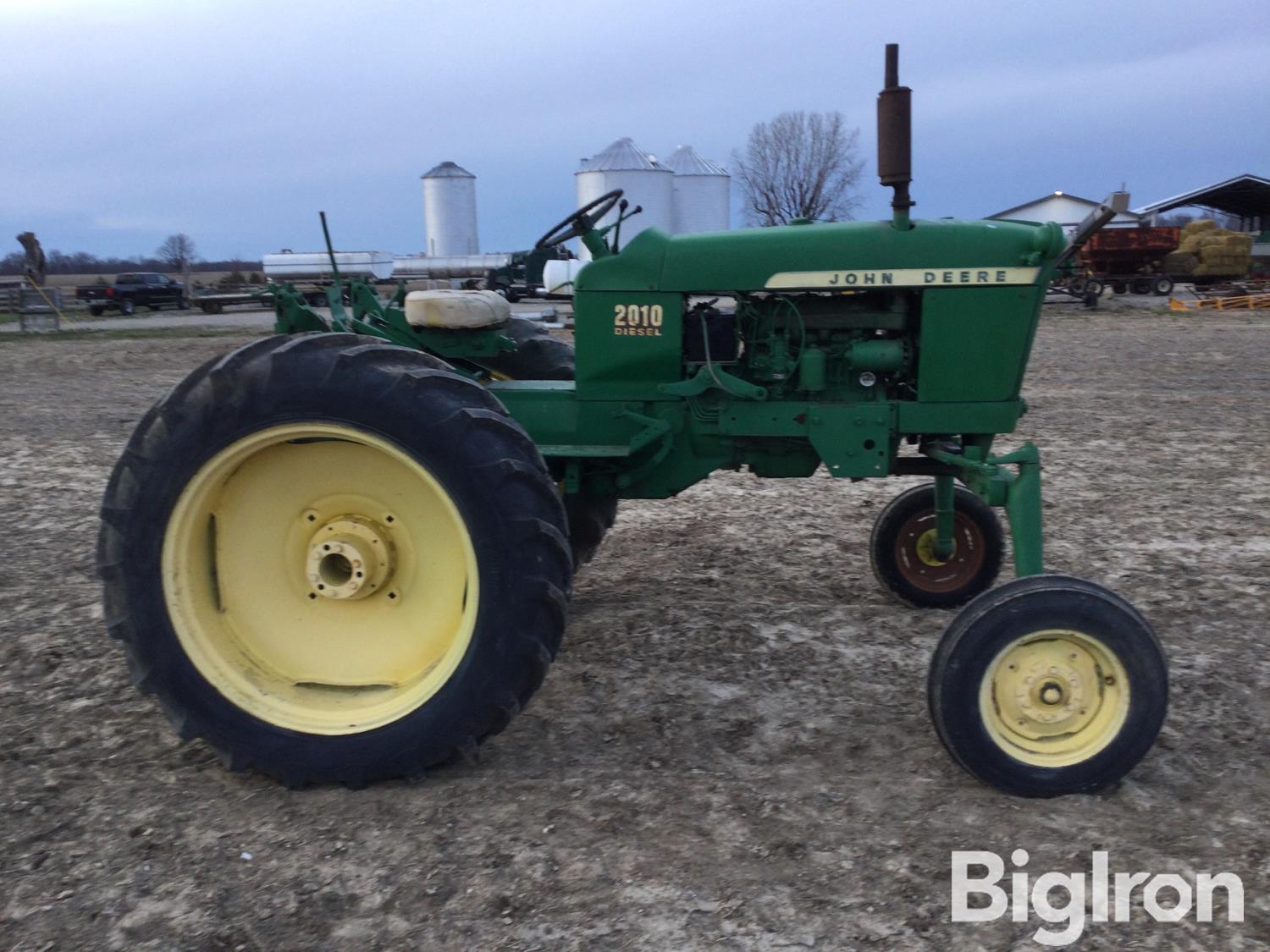

John Deere 2010 Hi-Crop
John Deere 2010 Hi-Crop — New Generation Series · 47 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
47 hp
Weight
5345 to 5450 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Built in Dubuque, Iowa, USAReference
Two-wheel driveReference
Open operator station.Reference
Variants
2010ag tractorReference
2010Cag crawlerReference
2010 Hi-Crophigh-clearanceReference
Dimensions
2010 Wheelindustrial tractorReference
Wheelbase227 cmReference
Weight5345 to 5450 poundsReference
Front tire6.50-16Reference
Rear tire13.6-38Reference
Ag front6.50-16Reference
Ag rear13.6-38Reference
Ag front6.00-16Reference
Ag front7.50-16Reference
Ag rear11.2-38Reference
Ag rear12.4-38Reference
Length362 cmReference
Width191 cmReference
Height (hood)184 cmReference
Height (exhaust)236 cmReference
Gas Shipping weight2424 kgReference
Diesel Shipping weight2472 kgReference
Clearance (front axle)87 cmReference
Engine
John Deere 2.4L 4-cyl gasolineReference
John Deere 2.7L 4-cyl dieselReference
John DeereReference
gasolineReference
4-cylinderReference
liquid-cooled inlineReference
Displacement2.4 LReference
Bore/Stroke92 x 89 mmReference
Compression7.6:1Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.7 LReference
Coolant capacity11.4 LReference
dieselReference
Displacement2.7 LReference
Bore/Stroke98 x 89 mmReference
Compression19:1Reference
Transmission
8-speed partially synchronizedReference
TransmissionJohn Deere Syncro-RangeReference
Typepartially synchronizedReference
Gears8 forward and 3 reverseReference
Clutchmechanical dry discReference
PTO & Hydraulics
Diesel PTO (claimed)34.8 kWReference
Gas PTO (claimed)34.9 kWReference
Hydraulic system30.3 LReference
Capacity30.3 LReference
Rear PTOindependentReference
Clutch540:1900Reference
Clutch1000:1900Reference
Rear PTO Type540/1000 (1.375)Reference
Capacities
Fuel60.6 LReference
Speeds
With 13.6-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
