Tractor · 2013Unverified

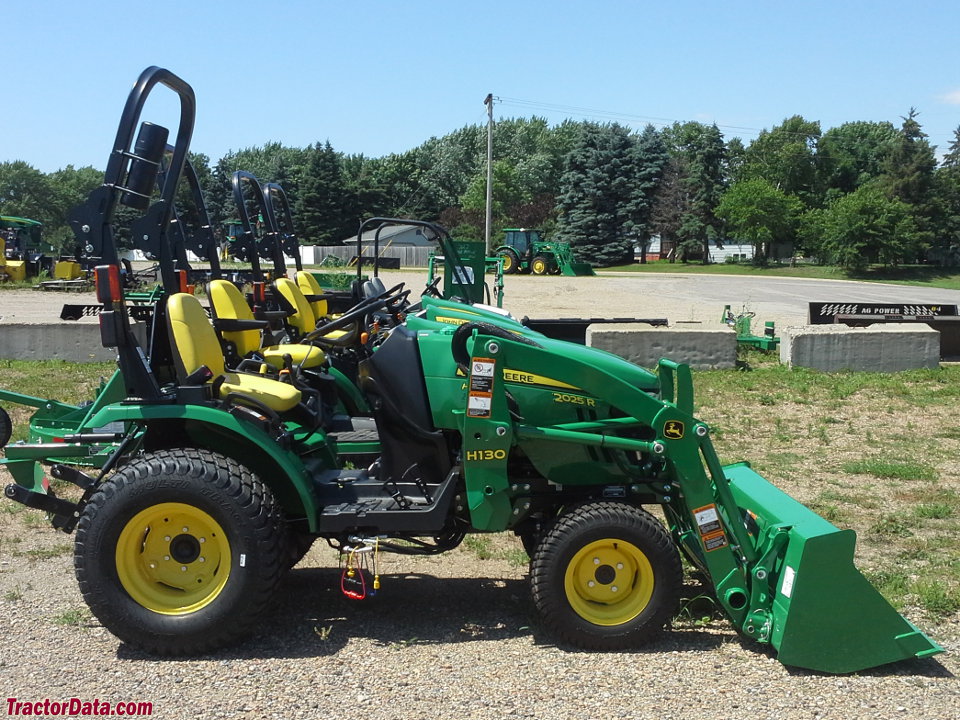

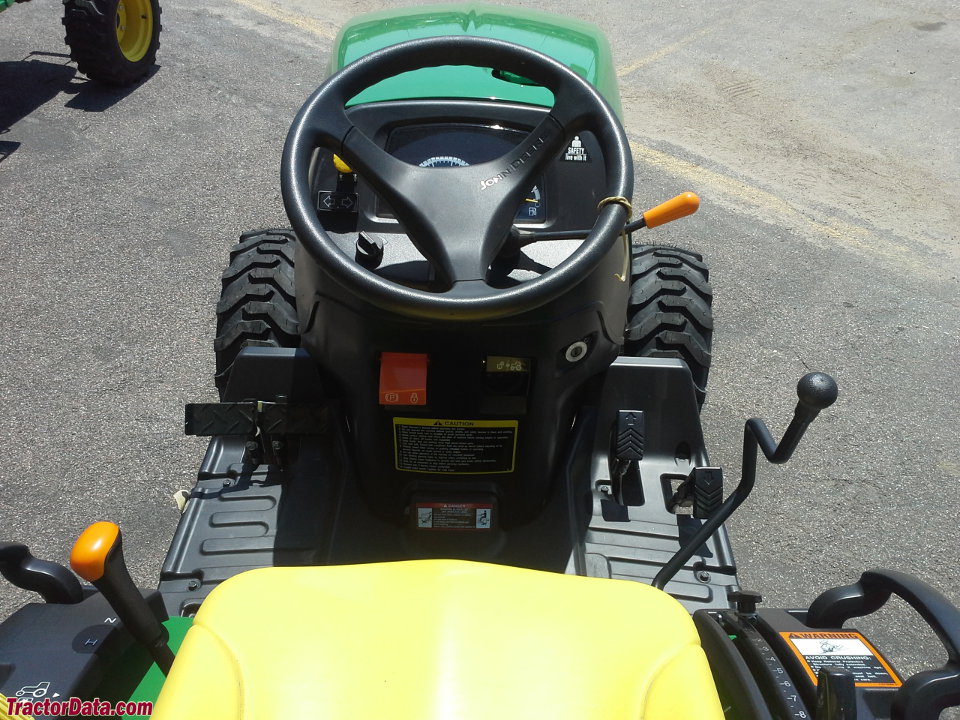

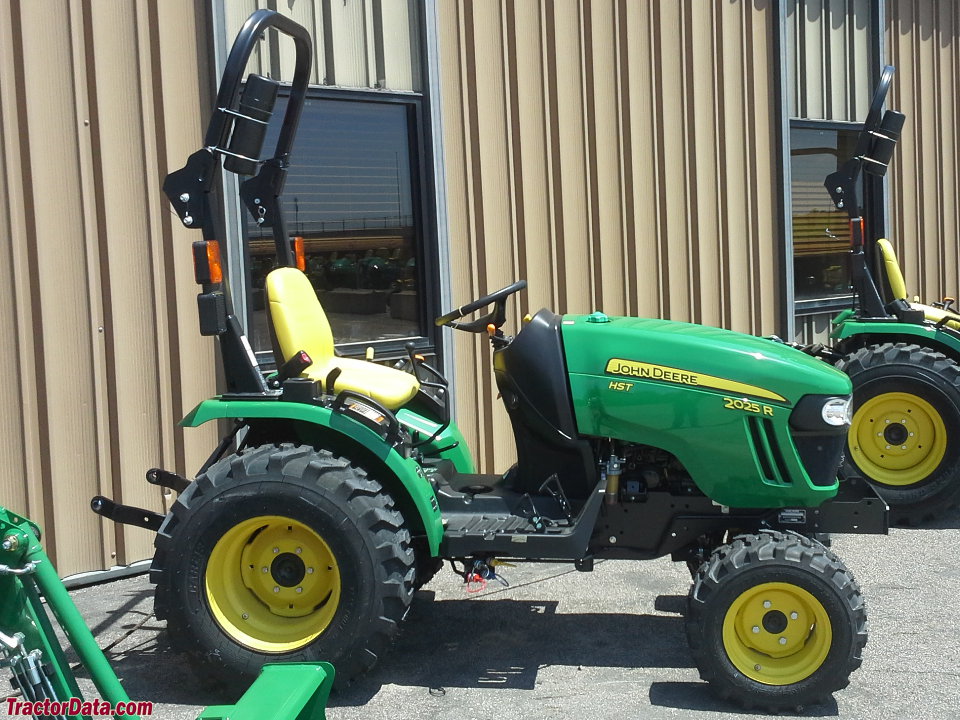

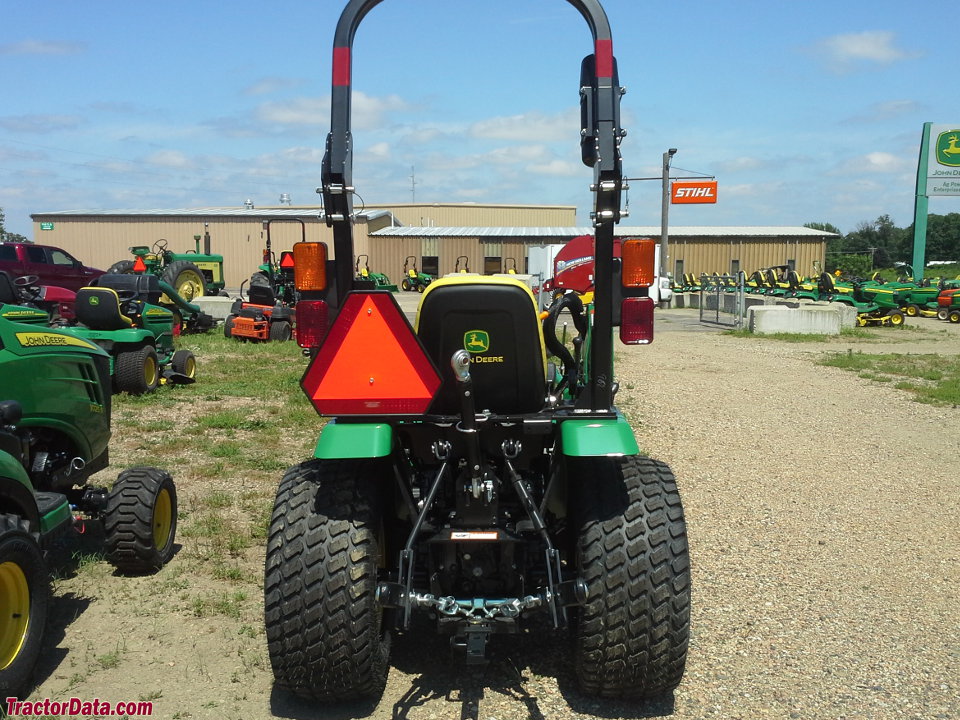

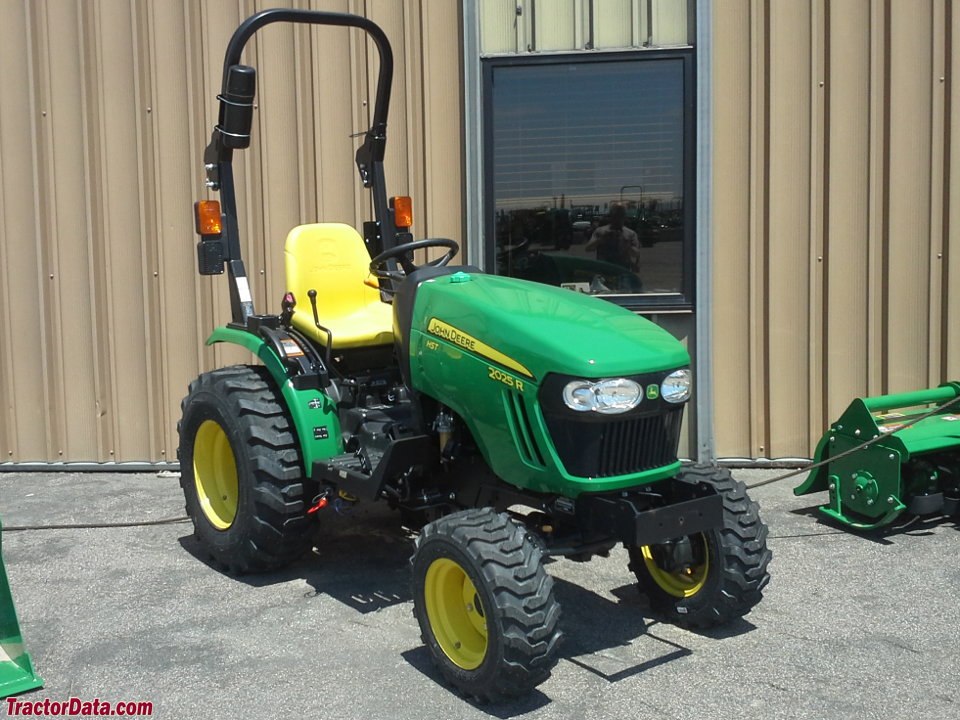

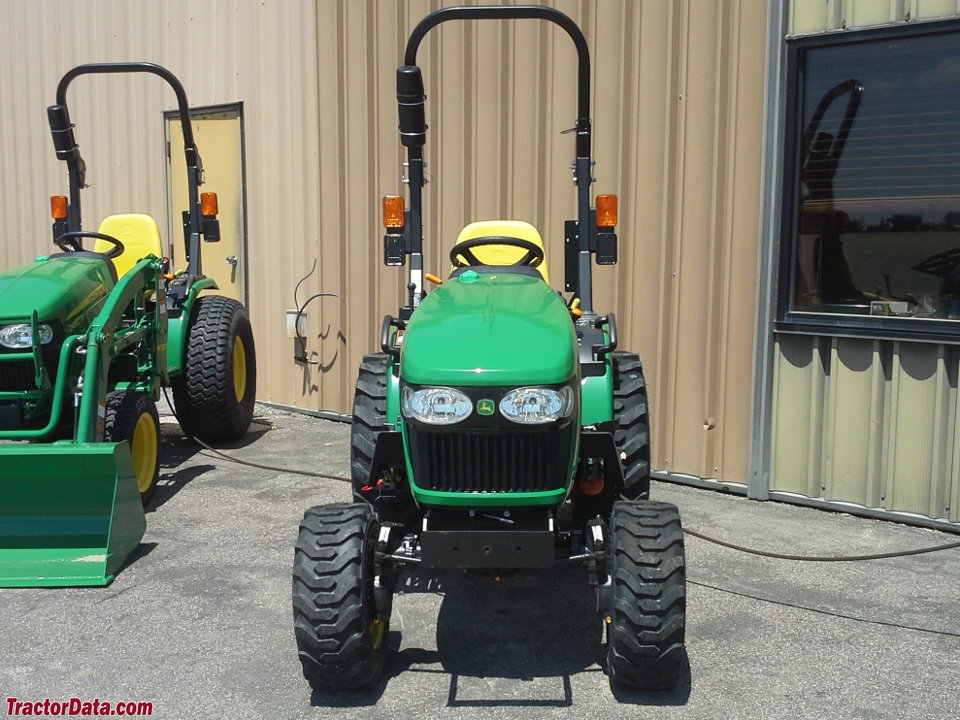

John Deere 2025R

Name: John Deere 2025R
Brand: John Deere

John Deere 2025R — Model year 2013-20162017-2027 · 24 hp. Reference specifications; pending source verification.

The John Deere 2025R is a compact tractor model with a rated output of 24 hp, making it suitable for smaller-scale operations. It features a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. The listed weight of the 2025R is 752 kg, and it is designed for use on plots of up to 200 acres. Production of this model took place between 2013 and 2027.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

23.9 hp (3,200 rpm)

Weight

752 kg

Catalogue coverage

Variants represented

Richest spec table

140 rows

Recorded power

24 hp

Recorded weight

752 kg

Transmissions

hydrostatic

Production years

2013-2027

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price$14,434 (2013)Reference

Original price$15,348 (2014)Reference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.3L 3-cyl dieselReference

Engine (gross)18.0 kWReference

Engine18.6 kWReference

Yanmar 3TNV80Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.3 LReference

Bore/Stroke80 x 84 mmReference

Power18.6 kWReference

Rated Power (gross)18.0 kWReference

Fuel systemindirect injectionReference

Air cleanerdual stage dryReference

Compression23.4:1Reference

Rated RPM3000Reference

StarterelectricReference

Starter volts12Reference

Starter power1.2 kWReference

Coolant capacity3.2 LReference

Oil capacity3.2 LReference

Oil change200 hReference

Fuel TypeDieselReference

No of CylindersThreeReference

Rated engine speed3,200 rpmReference

Emissions complianceFinal Tier 4Reference

Cylinder linersCast-in-blockReference

Engine torque at rated speed53.1 NmReference

Injection pump typeIndirect injectionReference

AspirationNaturalReference

Bore and stroke80 x 84 mmReference

Compression ratio23.1:01Reference

Cooling systemWater pumpReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity9.8 LReference

Oil typeDeere Hy-GardReference

Transmission TypeE-HSTReference

forward and reverse optionstwo rangeReference

Wheel Drive4WDReference

Gear Shift LocationLeft-hand sideReference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Hydraulic system9.8 LReference

Typeopen centerReference

Capacity9.8 LReference

Pressure166.9 barReference

Pump flow12.9 lpmReference

Total flow21.2 lpmReference

Steering flow8.3 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)650 kgReference

Rear lift (at 24"/610mm)521 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@3000Reference

Mid PTOindependentReference

Mid PTO Type2000Reference

Engine RPM2100@3000Reference

Capacities

Fuel23.1 LReference

Front axle0.9 LReference

Rear Axle capacity1,100 kgReference

Front Axle capacity611.9 kgReference

Fuel tank20.4 LReference

Crankcase oil volume2.7 LReference

Dimensions

Wheelbase160 cmReference

Weight752 kgReference

Industrial front23x8.5-12Reference

Industrial rear31x12-16.5Reference

Length277 cmReference

Width93 cmReference

Width129 cmReference

Height (hood)119 cmReference

Height (ROPS)226 cmReference

Height (Folded ROPS)169 cmReference

Clearance (front axle)31 cmReference

Flange rear axleReference

Front tread78 cmReference

Shipping752 kgReference

Max Drawbar254 kgReference

Max front axle879 kgReference

Max rear axle1100 kgReference

John Deere 2025R attachments

54" mid-mount mower deckReference

62" mid-mount mower deckReference

snowblowerReference

bladeReference

front-end loaderReference

backhoeReference

2025R Serial Number Location

Right side of tractor frame, above and behind the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Charging volts12Reference

Battery CCA500Reference

Battery volts12Reference

Battery size500 CCAReference

Alternator size40 ampReference

Attachment overview

54" mid-mount mower deckReference

62" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

John Deere 270A Backhoe

Backhoe typeJohn Deere 270A BackhoeReference

General

Make & ModelYanmar® @ 3TNV80F-NCJTReference

LubricationPressurizedReference

Cruise controlStandardReference

SCV controlJoystick: AvailableReference

Rollover protective structureType\\nFoldable\\nOSHA, SAE, ASAEReference

PlatformThree-piece semi flatReference

Power

Max Power23.9 hp (3,200 rpm)Reference

PTO

PTO Power17.2 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlIndependentReference

Rear PTO RPM540 rpmReference

Front PTO PowerFalseReference

Steering & brakes

BrakesWet discReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)26.5 l/minReference

Hydraulics TypeGearReference

Maximum operating pressure1,987 psiReference

Remote ValvesTwoReference

Steering & Implements flow13.25 L/min (13.25 L/min)Reference

Rear Hitch category (SAE designation)3-Point | Limited Category 1Reference

Dimensions & weight

Turning radius2.5 mReference

Overall weight849.1 kgReference

Operator station

Cab AvailabilityOptionalReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
