Tractor · 2013Unverified

John Deere 2032R

Name: John Deere 2032R
Brand: John Deere

John Deere 2032R — Model year 2013-20162017-2027 · 32 hp. Reference specifications; pending source verification.

The John Deere 2032R is a compact tractor with a rated output of 32 hp, offering a more compact option within its class. Produced from 2013 to 2027, this model features a 3-cylinder diesel liquid-cooled engine, which powers four-wheel drive via a hydrostatic transmission. The listed weight of the John Deere 2032R is 894 kg, with an intended application of around 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Max power

30.7 hp (2,500 rpm)

Weight

894 kg

Catalogue coverage

Variants represented

Richest spec table

143 rows

Recorded power

32 hp

Recorded weight

894 kg

Transmissions

hydrostatic

Production years

2013-2027

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price$18,595 (2013)Reference

Original price$19,339 (2014)Reference

Four-wheel driveReference

Final drivesspur gearReference

Differential lockmechanical rearReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.6L 3-cyl dieselReference

Engine (gross)23.6 kWReference

Engine23.9 kWReference

Yanmar 3TNV88Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.6 LReference

Bore/Stroke88 x 90 mmReference

Power23.9 kWReference

Rated Power (gross)23.6 kWReference

Fuel systemdirect injectionReference

Air cleanerdual stage dryReference

Compression19.1:1Reference

Rated RPM2500Reference

Operating RPM1000-2650Reference

StarterelectricReference

Starter volts12Reference

Coolant capacity4.0 LReference

Oil capacity3.4 LReference

Oil change200 hReference

Fuel TypeDieselReference

No of CylindersThreeReference

Rated engine speed2,500 rpmReference

Emissions complianceFinal Tier 4Reference

Cylinder linersCast-in-blockReference

Engine torque at rated speed87.5 NmReference

Injection pump typeDirect InjectionReference

AspirationNaturalReference

Bore and stroke88x90 mmReference

Compression ratio19.1:1Reference

Cooling systemWater pumpReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity14.8 LReference

Oil typeDeere Hy-GardReference

Transmission TypeE-HSTReference

Wheel Drive4WDReference

PTO & Hydraulics

PTO (claimed)17.5 kWReference

Hydraulic system14.8 LReference

Typeopen centerReference

Capacity14.8 LReference

Pressure166.9 barReference

Mid valves2Reference

Pump flow18.9 lpmReference

Total flow39.7 lpmReference

Steering flow20.8 lpmReference

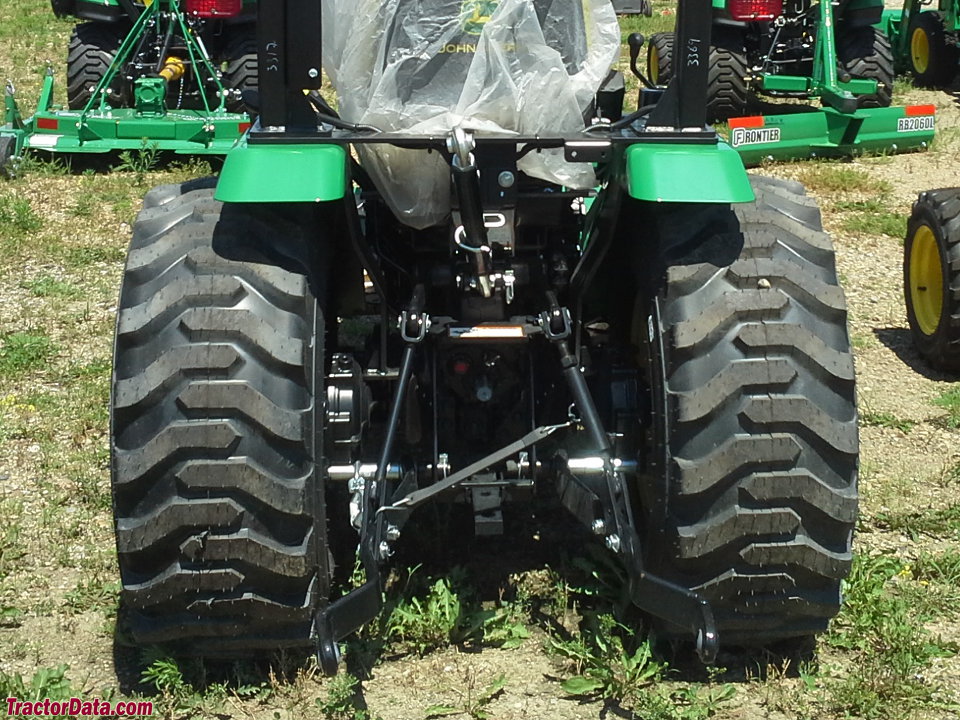

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)650 kgReference

Rear lift (at 24"/610mm)567 kgReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type540 (1.375)Reference

Engine RPM540@2600Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Engine RPM2100@2600Reference

Capacities

Fuel26.9 LReference

Front axle0.9 LReference

Front Axle capacity880 kgReference

Rear Axle capacity1,799.9 kgReference

Fuel tank32 LReference

Crankcase oil volume4.5 LReference

Dimensions

Wheelbase165 cmReference

Weight894 kgReference

Lawn/turf front24x8.5-14Reference

Lawn/turf rear36x14.00-15Reference

Industrial front23x8.5-12Reference

Industrial rear14-17.5Reference

Length276 cmReference

Width119 cmReference

Width141 cmReference

Height (hood)135 cmReference

Height (ROPS)227 cmReference

Height (Folded ROPS)171 cmReference

Clearance (front axle)33 cmReference

Front axleFlangeReference

Front tread83 cmReference

Shipping894 kgReference

Max Drawbar254 kgReference

Max front axle879 kgReference

Max rear axle1100 kgReference

John Deere 2032R attachments

62" mid-mount mower deckReference

72" mid-mount mower deckReference

snowblowerReference

bladeReference

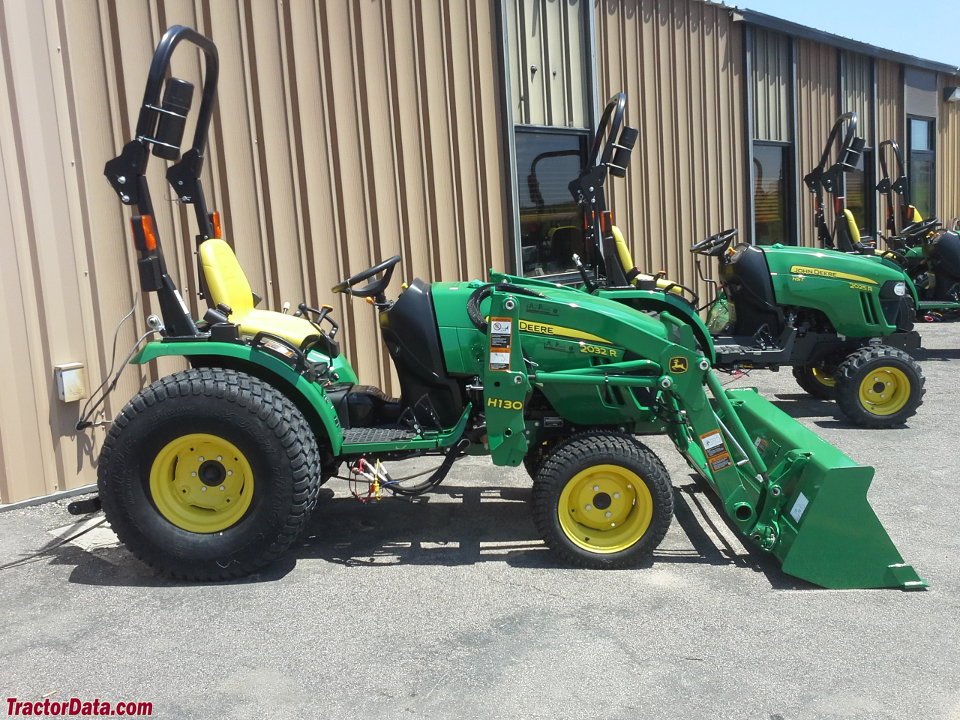

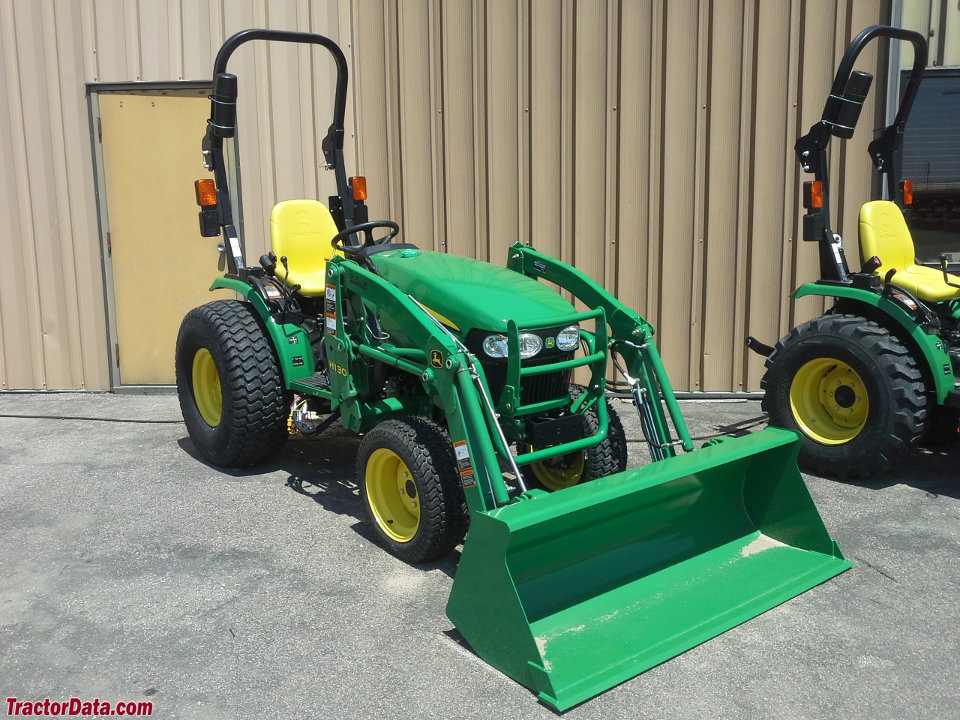

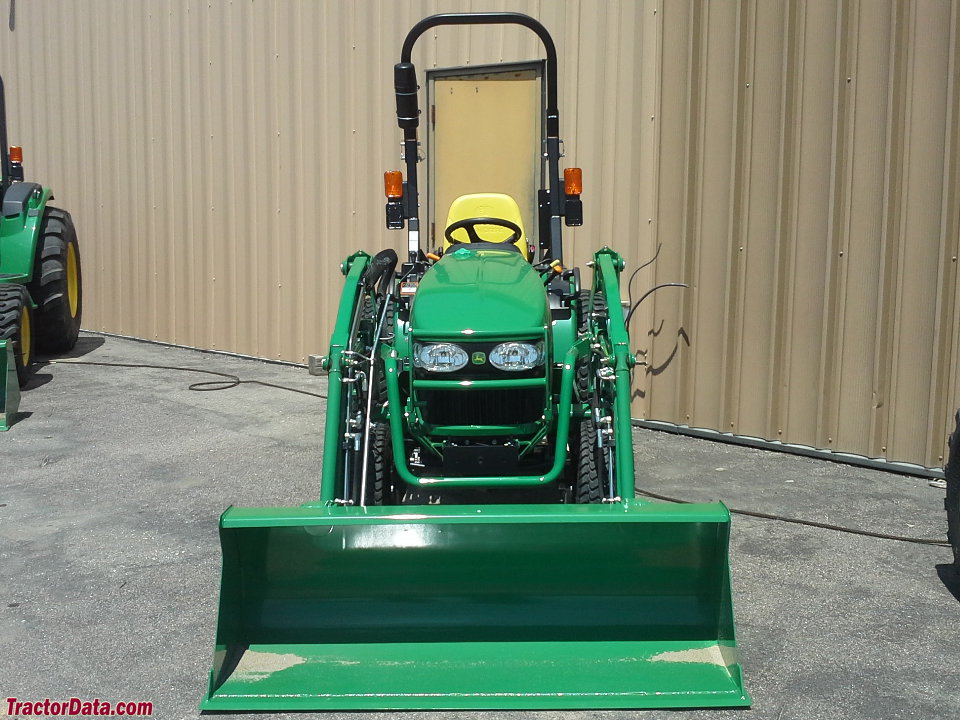

front-end loaderReference

backhoeReference

2032R Serial Number Location

Right side of tractor frame, above and behind the front axle.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps40Reference

Charging volts12Reference

Battery CCA500Reference

Battery volts12Reference

Battery size500 CCAReference

Alternator size85 ampReference

Attachment overview

62" mid-mount mower deckReference

72" mid-mount mower deckReference

SnowblowerReference

BladeReference

Front-end loaderReference

BackhoeReference

John Deere 46 Backhoe

Backhoe typeJohn Deere 46 BackhoeReference

2-Foot flat digging depth198 cmReference

Bucket force1288 kgReference

General

Make & ModelYanmar® @ 3TNV88C-NJT2Reference

LubricationPressurizedReference

Cruise controlStandardReference

Rollover protective structureType\\nFoldable\\nASABE S478Reference

PlatformSemi-flatReference

Power

Max Power30.7 hp (2,500 rpm)Reference

PTO

PTO Power24.2 hpReference

Rear PTO PowerAvailableReference

Rear PTO ControlIndependentReference

Rear PTO RPM543 rpmReference

Mid PTO ControlIndependentReference

Mid PTO RPM1,998 rpmReference

Steering & brakes

BrakesWet discReference

Steering typePower steeringReference

Hydraulics

Pump Rated Output (total)35.2 l/minReference

Hydraulics TypeDual gearReference

Maximum operating pressure2,495 psiReference

Remote ValvesthreeReference

Steering & Implements flow15 L/min (20.2 L/min)Reference

Rear Hitch category (SAE designation)3-Point | Category 1Reference

Dimensions & weight

Turning radius2.5 mReference

Overall weight1,305.9 kgReference

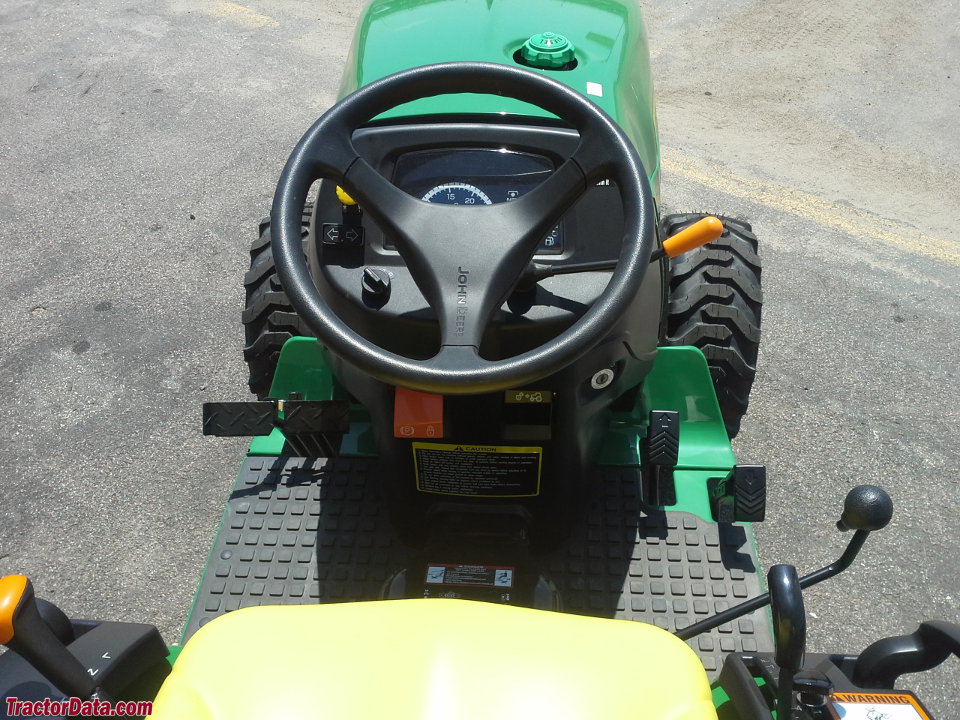

Operator station

Cab AvailabilityTrueReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
