Industrial Tractor · 2012Unverified

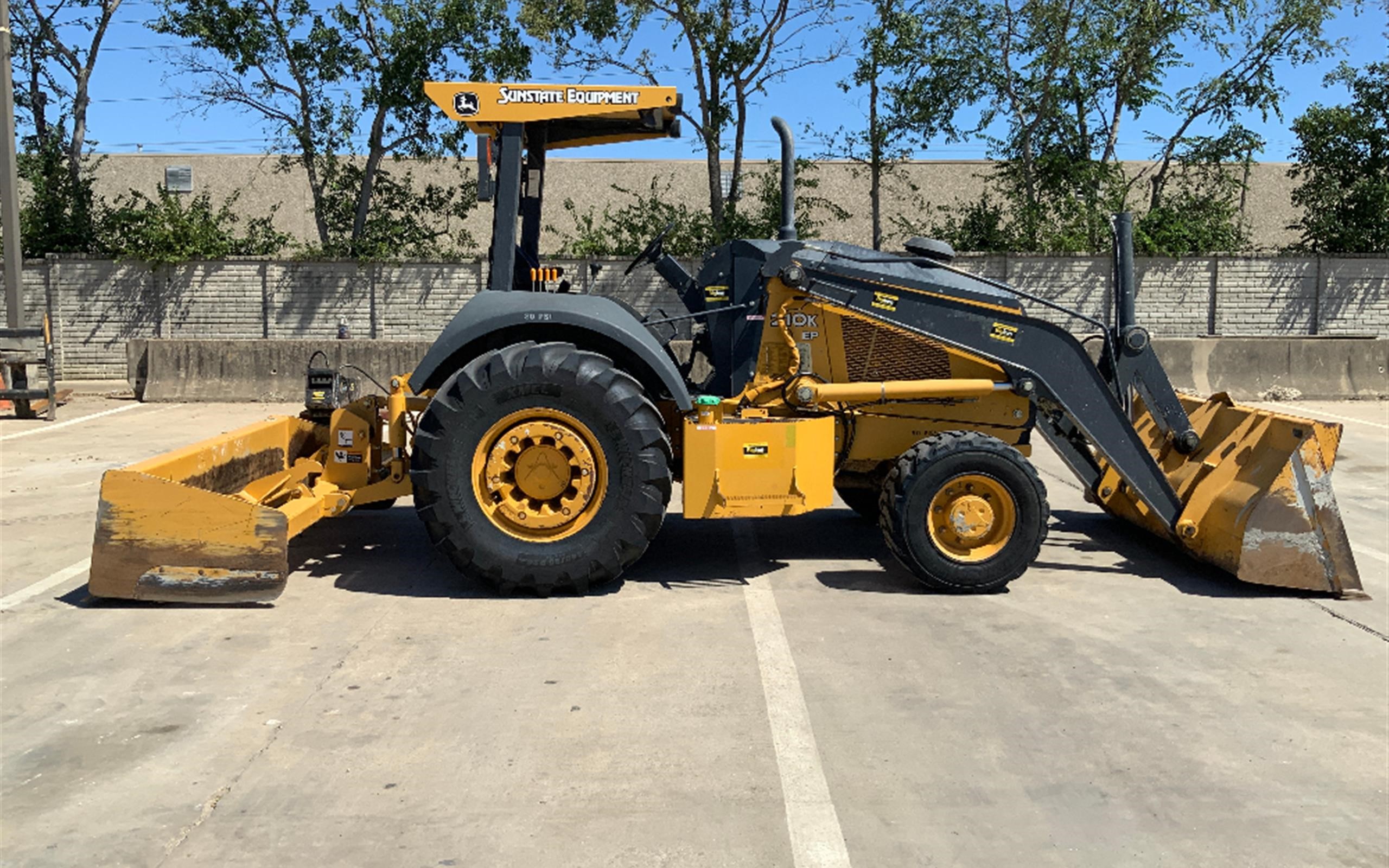

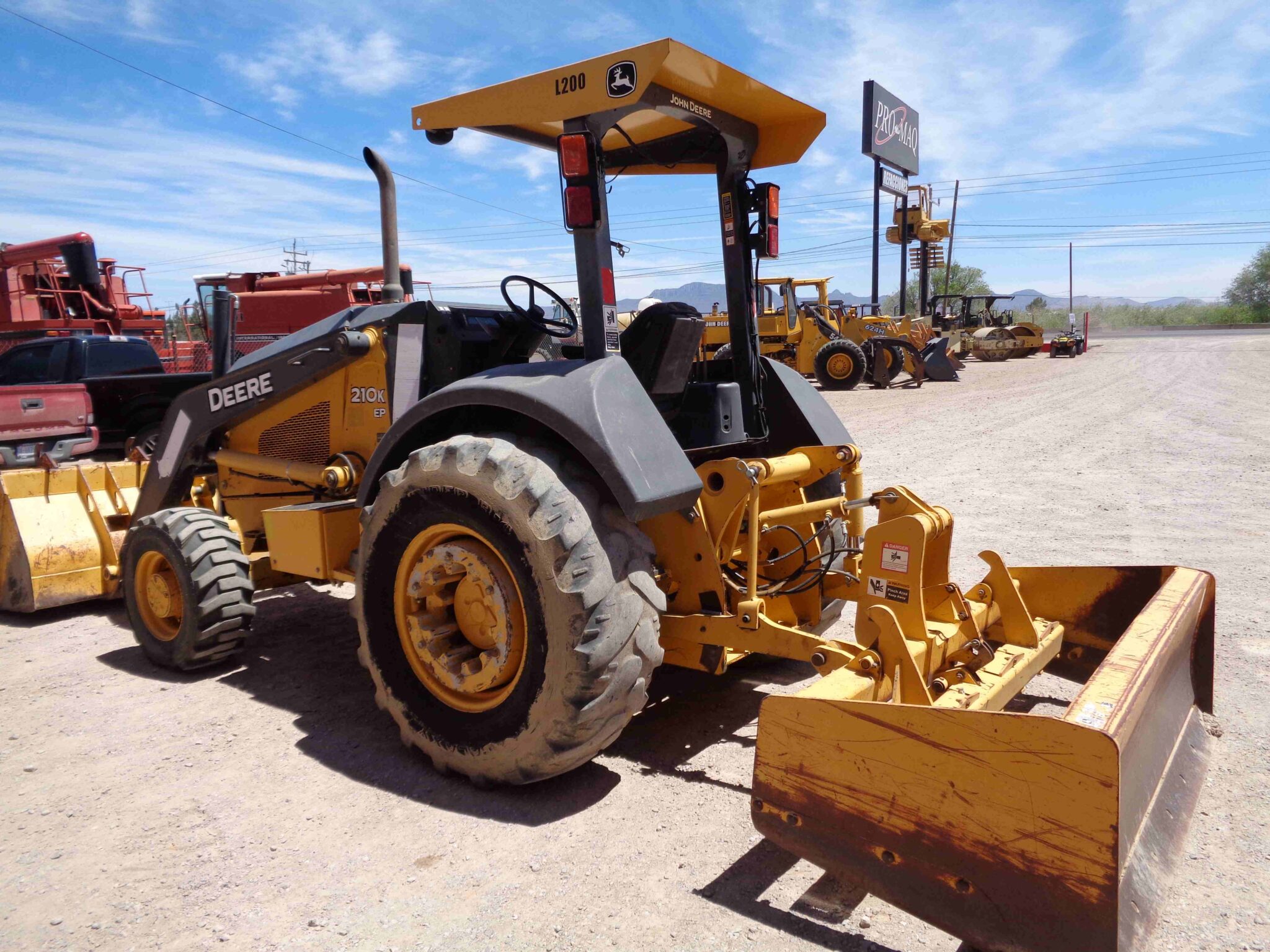

John Deere 210K
John Deere 210K — K Series · 88 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
88 hp
Weight
10936 to 13816 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Industrial tractorReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS/FOPS. Optional cab with air-conditioning.Reference
Variants
210Kpremium modelReference
210K EPeconomy modelReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (net)65.6 kWReference
John Deere PowerTech E 4045HT073Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier IVReference
Emission controlcooled exhaust-gas recirculation, diesel particulate filter, and diesel oxidation catalystReference
Power (net)65.6 kWReference
Air cleanerdual stage dryReference
Pre-heatingglow plugsReference
Rated RPM2000Reference
Torque375.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity24.6 LReference
Transmission
4-speed full power shiftReference
TransmissionPowerShiftReference
Typefull power shiftReference
Gears4 forward and 2 reverseReference
Oil capacity15.1 LReference
Full power shift transmission with reverser and torque converter.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system89.3 LReference
Typeopen centerReference
Capacity89.3 LReference
Pressure189.6 barReference
Pump flow95.8 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel102.2 LReference
Front axle6.6 LReference
Front hubs0.9 LReference
Rear axle18.0 LReference
Dimensions
Wheelbase210 cmReference
Weight10936 to 13816 poundsReference
Front tire12-16.5Reference
Rear tire16.9-24Reference
Industrial front12-16.5Reference
Industrial rear16.9-24Reference
Length523 cmReference
Width213 cmReference
Height (ROPS)254 cmReference
Height (cab)264 cmReference
Shipping weight4960 kgReference
Operating weight6266 kgReference
Clearance (front axle)28 cmReference
John Deere 210K attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps120Reference
Batteries1Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
