Industrial Tractor · 2012Unverified

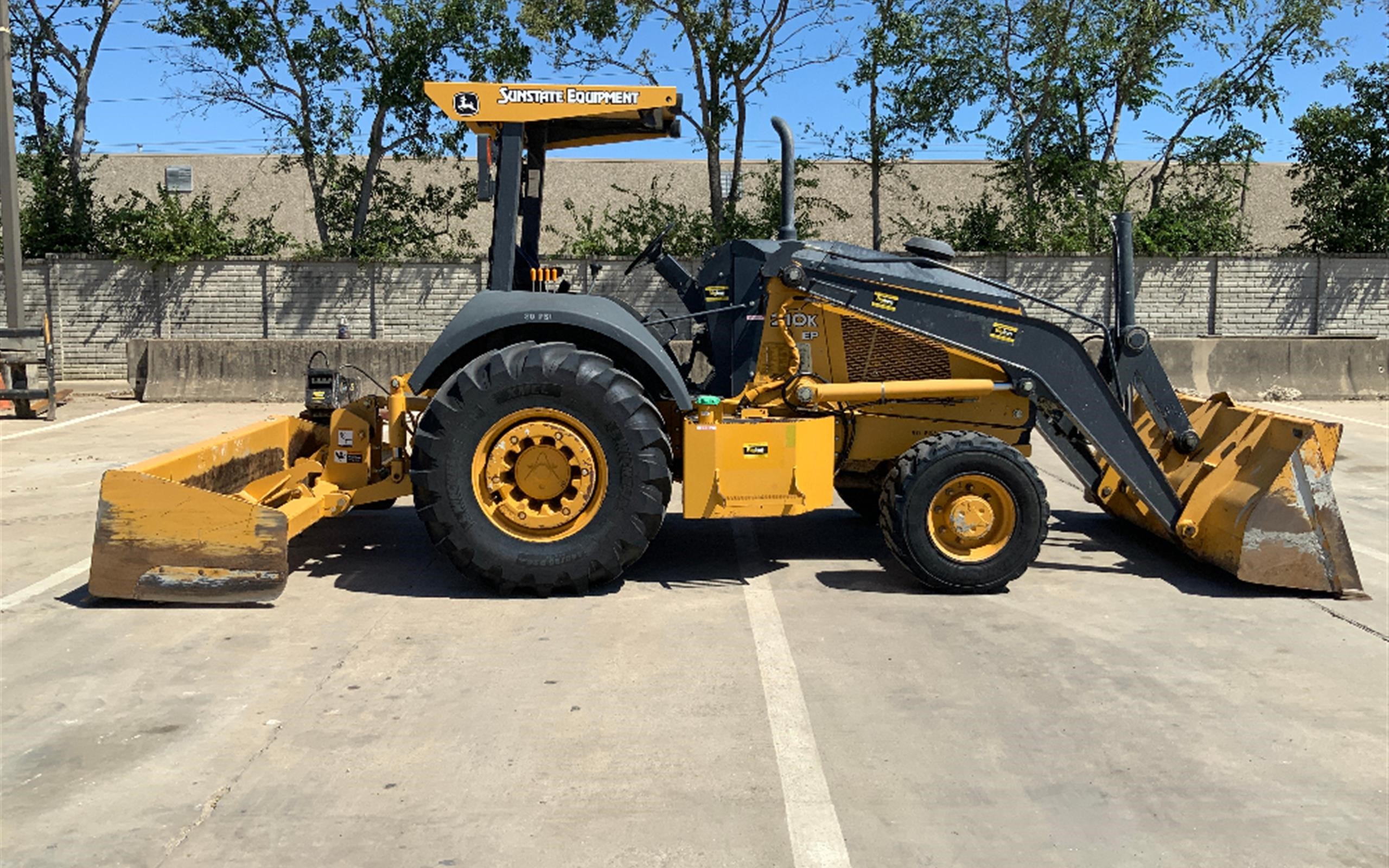

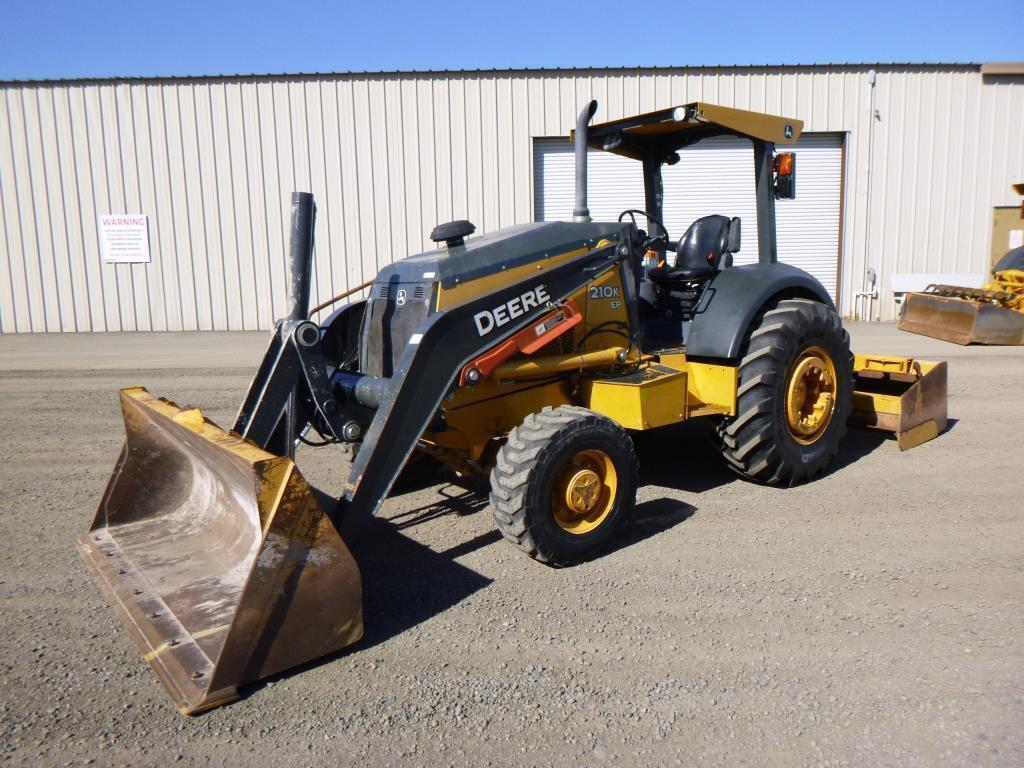

John Deere 210K EP
John Deere 210K EP — K Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
10379 to 13259 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Industrial tractorReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS/FOPS. Optional cab with air-conditioning.Reference
Variants
210Kpremium modelReference
210K EPeconomy modelReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (net)52.2 kWReference
John Deere PowerTech E 4045HT072Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsInterim Tier IVReference
Power (net)52.2 kWReference
Air cleanerdual stage dryReference
Pre-heatingether injectionReference
Rated RPM2000Reference
Torque314.6 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.2 LReference
Coolant capacity24.6 LReference
Transmission
4-speed full power shiftReference
TransmissionPowerShiftReference
Typefull power shiftReference
Gears4 forward and 2 reverseReference
Oil capacity15.1 LReference
Full power shift transmission with reverser and torque converter.Reference
Capacities
Fuel102.2 LReference
Front axle6.6 LReference
Front hubs0.9 LReference
Rear axle18.0 LReference
PTO & Hydraulics
Hydraulic system89.3 LReference
Typeopen centerReference
Capacity89.3 LReference
Pressure189.6 barReference
Pump flow77.6 lpmReference
Rear TypeIIReference
Dimensions
Wheelbase210 cmReference
Weight10379 to 13259 poundsReference
Front tire12-16.5Reference
Rear tire16.9-24Reference
Industrial front12-16.5Reference
Industrial rear16.9-24Reference
Length523 cmReference
Width213 cmReference
Height (ROPS)254 cmReference
Height (cab)264 cmReference
Shipping weight4707 kgReference
Operating weight6014 kgReference
Clearance (front axle)28 cmReference
John Deere 210K EP attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps90Reference
Batteries1Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
