Industrial Tractor · 2015Unverified

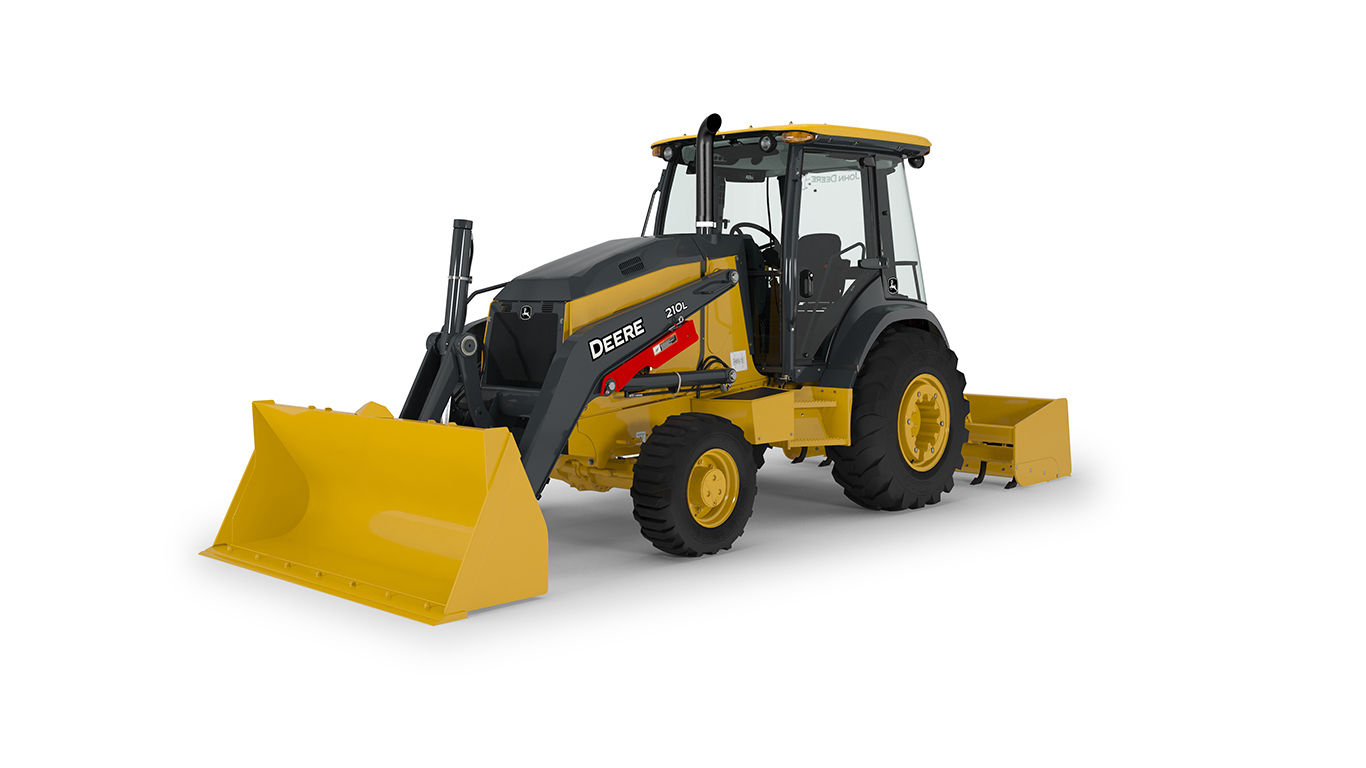

John Deere 210L
John Deere 210L — L Series · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
11326 to 14206 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Industrial tractorReference
Four-wheel driveReference
Final drivesoutboard planetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Two-post ROPS/FOPS. Optional cab with air-conditioning. JDLinkReference
Variants
210Lpremium modelReference
210L EPeconomy modelReference
Engine
John Deere 4.5L 4-cyl dieselReference
Engine (net)69.4 kWReference
John Deere PowerTech E 4045HT082Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.5 LReference
Bore/Stroke106 x 127 mmReference
EmissionsTier IVReference
Emission controlselective catalytic reduction (SCR)Reference
Power (net)69.4 kWReference
Air cleanerdual stage dryReference
Pre-heatinggrid heaterReference
Pre-heatingcoolant heaterReference
Rated RPM2244Reference
Torque382.4 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Oil capacity13.0 LReference
Coolant capacity35.0 LReference
Transmission
4-speed full power shiftReference
TransmissionPowerShiftReference
Typefull power shiftReference
Gears4 forward and 2 reverseReference
Oil capacity15.1 LReference
Full power shift transmission with reverser and torque converter.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system71.9 LReference
Typeopen centerReference
Capacity71.9 LReference
Pressure189.6 barReference
Pump flow95.8 lpmReference
Rear TypeIIReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel117.3 LReference
Exhaust fluid (DEF)16.3 LReference
Front axle6.5 LReference
Front hubs0.9 LReference
Rear axle18.0 LReference
Dimensions
Wheelbase215 cmReference
Weight11326 to 14206 poundsReference
Front tire12-16.5Reference
Rear tire16.9-24Reference
Industrial front12-16.5Reference
Industrial rear16.9-24Reference
Length530 cmReference
Width213 cmReference
Height (ROPS)261 cmReference
Height (cab)264 cmReference
Shipping weight5137 kgReference
Operating weight6443 kgReference
Ground clearance26 cmReference
John Deere 210L attachments
front-end loaderReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps120Reference
Cab Charging amps150Reference
Batteries1Reference
Batteries2Reference
Battery CCA925Reference
Battery volts12Reference
Speeds
With 16.9L-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
