Tractor · 1973Unverified

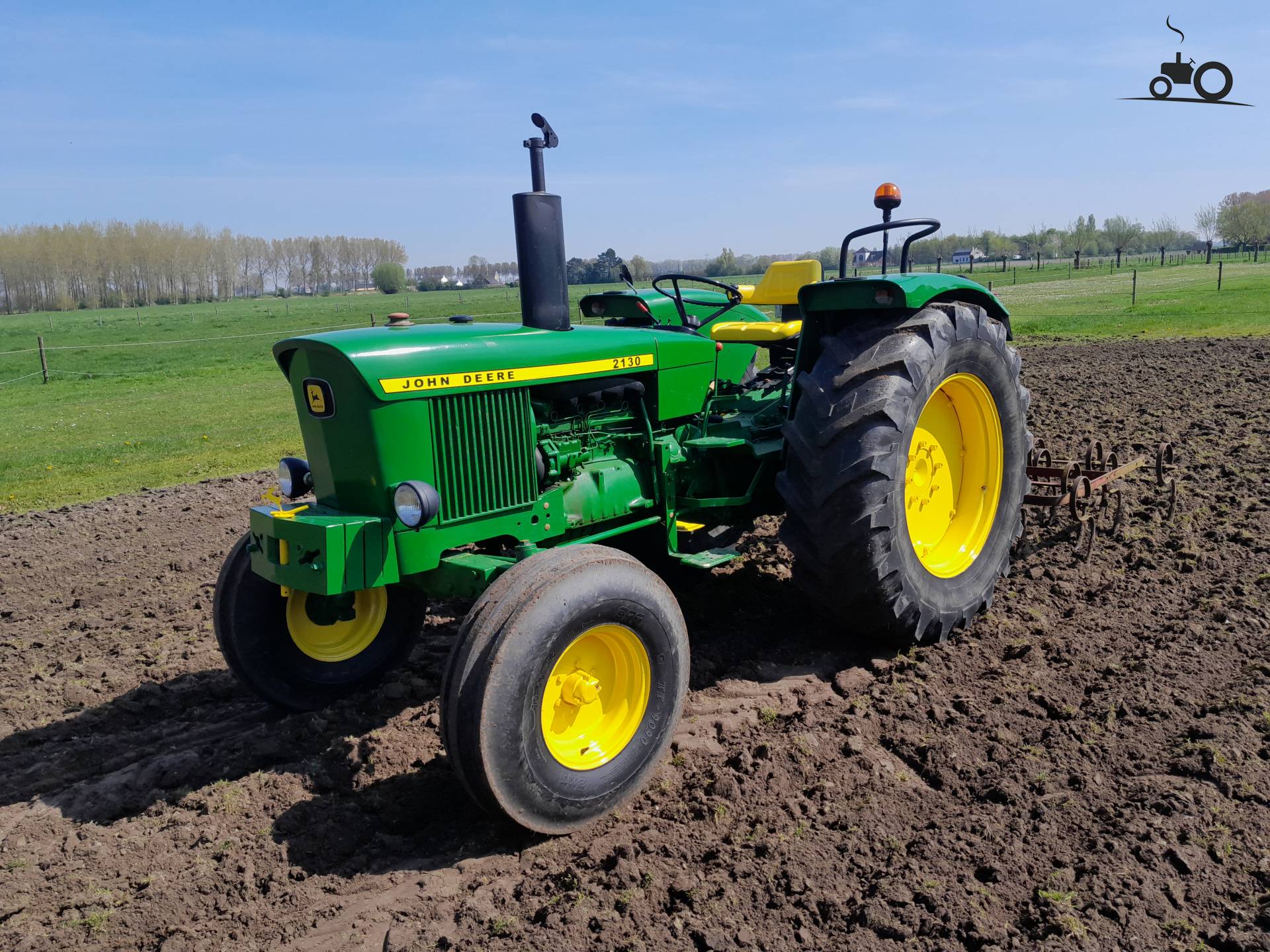

John Deere 2130
John Deere 2130 — Utility tractor · 79 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
79 hp
Weight
2712 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Drive4x2 2WDReference
Drive4x4 HFWD 4WDReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Hydraulic wet disc brakesReference
Open operator station. Cab optional.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank90.1 LReference
Engine (gross)59.0 kWReference
Engine (net)55.0 kWReference
John DeereReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Power (net)55.0 kWReference
Power (gross)59.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression16.8:1Reference
Rated RPM2500Reference
Idle RPM650-2660Reference
Operating RPM1400-2500Reference
Torque246.0 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
StarterelectricReference
Starter volts12Reference
Coolant capacity11.5 LReference
Transmission
8-speedReference
16-speed two-speed power shiftReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Oil capacity25.5 LReference
Oil capacity36.0 LReference
TransmissionHi-LoReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)45.0 kWReference
Typeclosed centerReference
Pressure155.0 barReference
Pump flow25.0 lpmReference
Pump flow46.9 lpmReference
Rear TypeIIReference
Controlposition control and lower-link draft sensingReference
Rear lift2522 kgReference
Rear PTOtransmissionReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM540@2100Reference
Engine RPM1000@2100Reference
Dimensions
Wheelbase217 cmReference
Weight2712 kgReference
Rear tire15.5-38Reference
Ag rear15.5-38Reference
Length354 cmReference
Width203 cmReference
Height260 cmReference
Flange rear axleReference
Rack-and-pinion rear axleReference
Front tread135 to 186 cmReference
Rear tread154 to 195 cmReference
Rear tread154 to 244 cmReference
2130 Serial Number Location
Right side of tractor frame, above front axle.Reference
2130 Serial Numbers
1973------Reference
1974140000Reference
1975155483Reference
1976190675Reference
1977230487Reference
1978274909Reference
1979309934Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps28Reference
Charging volts14Reference
Batteries2Reference
Battery volts12Reference
Battery AH55Reference
Speeds
With 16.9-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
