Tractor · 1983Unverified
John Deere 2150
John Deere 2150 — Utility tractor · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Max power
28.4 kW
Weight
4970 to 5670 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price$16,425 (1983 2WD )Reference
Original price$21,455 (1983 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post fixed ROPS. Canopy available.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank73.8 LReference
Drawbar (tested)28.4 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Fuel use12.2 l/hourReference
Air cleanerdual paper elementsReference
Compression17.4:1Reference
Rated RPM2500Reference
Operating RPM1500-2500Reference
Starter volts12Reference
Coolant capacity10.4 LReference
Power at rated engine speed34.7 kWReference
Max power28.4 kWReference
Transmission
8-speed partially synchronizedReference
16-speed two-speed power shiftReference
8-speed power shuttleReference
TransmissionJohn Deere Top-Shaft SynchronizedReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.Reference
TransmissionJohn Deere Hi-Lo TSSReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
The Hi-Low adds a hydraulic power shift to the standard TSS transmission. A left-hand lever enables a clutchless shift between direct (high) range and a lower range.Reference
TransmissionJohn Deere Direction ReverserReference
Typepower shuttleReference
The Direction Reverser transmission provides clutchless hydraulic shuttle shifting using a left-hand reverser lever. Reverser not available with 4WD or cab. Reverse only operates in low range.Reference
PTO & Hydraulics
PTO (claimed)33.6 kWReference
PTO (tested)34.7 kWReference
Typeclosed centerReference
Pressure155.1 barReference
Rear valves0 to 2Reference
Pump flow49.2 lpmReference
Rear TypeII/IReference
Controlload and depth controlReference
Rear lift917 kgReference
Rear PTOindependentReference
Rear PTOlive (with reverser)Reference
Rear PTO Type540Reference
Power at rated PTO speed34.4 kWReference
Dimensions
2WD Wheelbase188 cmReference
4WD Wheelbase205 cmReference
Weight4970 to 5670 poundsReference
Front tire6.50-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 16.9-28Reference
Lawn/turf front27x9.5-15Reference
Lawn/turf rear16.9-24Reference
2WD Length305 cmReference
4WD Length311 cmReference
Width174 cmReference
2WD Clearance (front axle)51 cmReference
4WD Clearance (front axle)41 cmReference
Flange rear axleReference
Front tread125 to 201 cmReference
Front tread109 to 196 cmReference
Rear tread139 to 200 cmReference
2WD Shipping2254 kgReference
4WD Shipping2571 kgReference
2WD Operating2317 kgReference
Ballasted2689 kgReference
Steering wheel152 cmReference

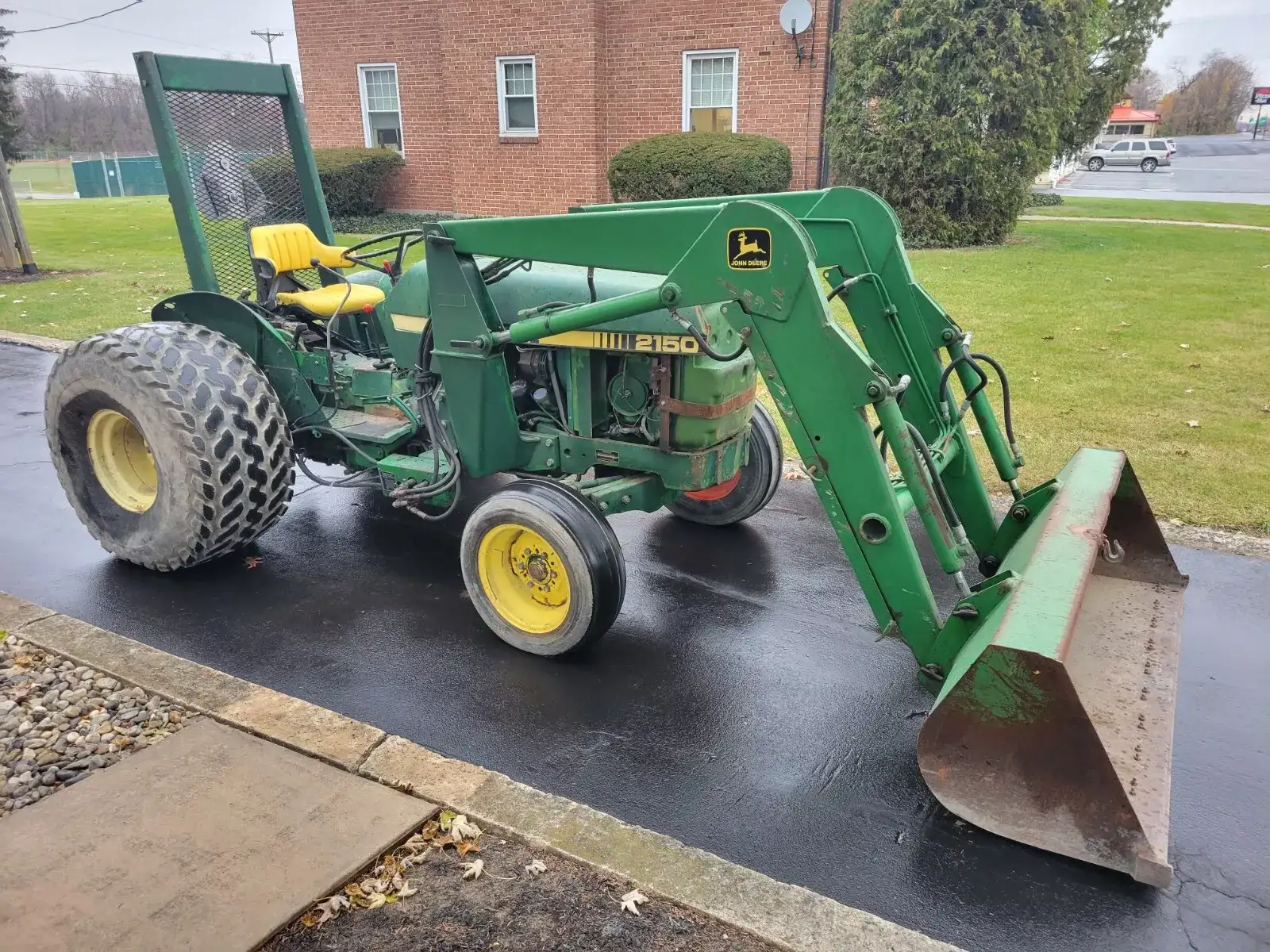

John Deere 2150 attachments
front-end loaderReference
2150 Serial Number Location
Right side of main tractor frame, above front axle.Reference
2150 Serial Numbers
1983433467Reference
1984505001Reference
1985532000Reference
1986562001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps33Reference
Batteries2Reference
Battery volts12Reference
Battery AH55Reference
John Deere 2150 Height
Hood140 cmReference
Exhaust198 cmReference
Test results
Diesel 16-speed 2WDApril 15 - May 9, 1983Link: Nebraska Tractor Test 1469 fileReference
PTO performanceReference
Fuel use12.1 l/hourReference
Fuel use11.7 l/hourReference
Drawbar performanceReference
Gear 5L used for power test.Reference
Max pull2211 kgReference
Gear 3L used for pull test.Reference
Speeds
With 13.6-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
