Tractor · 1987Unverified
John Deere 2155
John Deere 2155 — 55 Utility Series · 46 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
46 hp
Max power
27.9 kW
Weight
5105 to 5986 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price was $18,000 in 1992Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post fixed ROPS.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank67.0 LReference
Engine41.0 kWReference
Drawbar (tested)27.9 kWReference
John DeereReference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power41.0 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.8:1Reference
Rated RPM2300 (CST)Reference
Rated RPM2500 (TSS)Reference
Starter volts12Reference
Oil capacity6.0 LReference
Coolant capacity10.0 LReference
Power at rated engine speed34.0 kWReference
Max power27.9 kWReference
Transmission
8-speed non-synchronizedReference
8-speed partially synchronizedReference
16-speed partial power shiftReference
8-speed power shuttleReference
TransmissionJohn Deere Collar Shift (CST)Reference
Typenon-synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four gears with two forward and one reverse range.Reference
TransmissionJohn Deere Top-Shaft Synchronized (TSS)Reference
Typepartially synchronizedReference
Four gears (1-4) with two ranges (I-II) and reverse range. Optional creeper range provides 12 forward and 8 reverse speeds.Reference
TransmissionJohn Deere Hi-Lo Top-Shaft Synchronized (TSS)Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Adds a hydraulic high-low power shift to the basic TSS transmission.Reference
TransmissionJohn Deere Collar Shift ReverserReference
Typepower shuttleReference
Gears8 forward and reverseReference
Adds a hydraulic reverse to the CST transmission.Reference
PTO & Hydraulics
CST PTO (claimed)33.6 kWReference
TSS PTO (claimed)34.3 kWReference
PTO (tested)34.0 kWReference
Typeclosed centerReference
Pressure155.1 barReference
Valves0 to 3Reference
Pump flow45.4 lpmReference
Total flow49.2 lpmReference
Rear TypeII/IReference
Controllower-link draft sensingReference
Rear lift (at 24"/610mm)1172 kgReference
Rear PTOliveReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2070Reference
Mid PTOliveReference
Mid PTO Type1000Reference
Power at rated PTO speed33.3 kWReference
Dimensions
2WD Wheelbase204 cmReference
4WD Wheelbase205 cmReference
Weight5105 to 5986 poundsReference
Front tire6.50-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.50-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 9.5-24. Rear: 16.9-28Reference
2WD Optional tires (ag)Front: 6.50-16. Rear: 14.9-24Reference
4WD Optional tires (ag)Front: 10.5-18. Rear: 14.9-24Reference
2WD Length305 cmReference
4WD Length311 cmReference
2WD Width174 cmReference
4WD Width183 cmReference
2WD Clearance (front axle)53 cmReference
4WD Clearance (front axle)36 cmReference
2WD Front tread125 to 201 cmReference
4WD Front tread134 to 196 cmReference
Rear tread119 to 179 cmReference
2WD ROPS Shipping2390 kgReference
4WD ROPS Shipping2715 kgReference
2WD ROPS Operating2315 kgReference
2WD Steering wheel148 cmReference
4WD Steering wheel152 cmReference

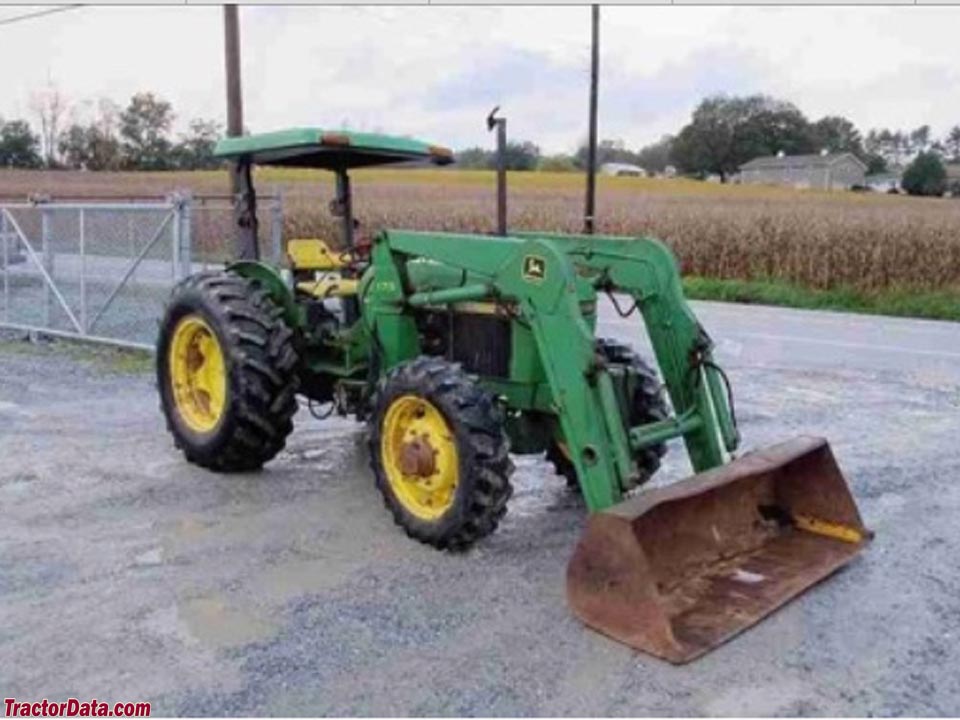

John Deere 2155 attachments
front-end loaderReference
2155 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
2155 Serial Numbers
1987600000Reference
1988624800Reference
1989652073Reference
1990686146Reference
1991717916Reference
1992746510Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Batteries2Reference
Battery CCA400Reference
Battery volts12Reference
Attachment overview
John Deere 520 loaderReference
John Deere 540 loaderReference
John Deere 540 MSL loaderReference
John Deere 2155 Height
2WD Hood134 cmReference
4WD Hood141 cmReference
2WD ROPS172 cmReference
4WD ROPS223 cmReference
Test results
Diesel 8-speed 2WDJune 1987 - July 1987, Link: OCED Tractor Test 1094 fileReference
PTO performanceReference
Fuel use11.4 l/hourReference
Fuel use10.6 l/hourReference
Drawbar performanceReference
Fuel use11.0 l/hourReference
Gear 2II used for power test.Reference
Max pull1803 kgReference
Gear 3I used for pull test.Reference
Speeds
With 14.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
