Tractor · 2003Unverified

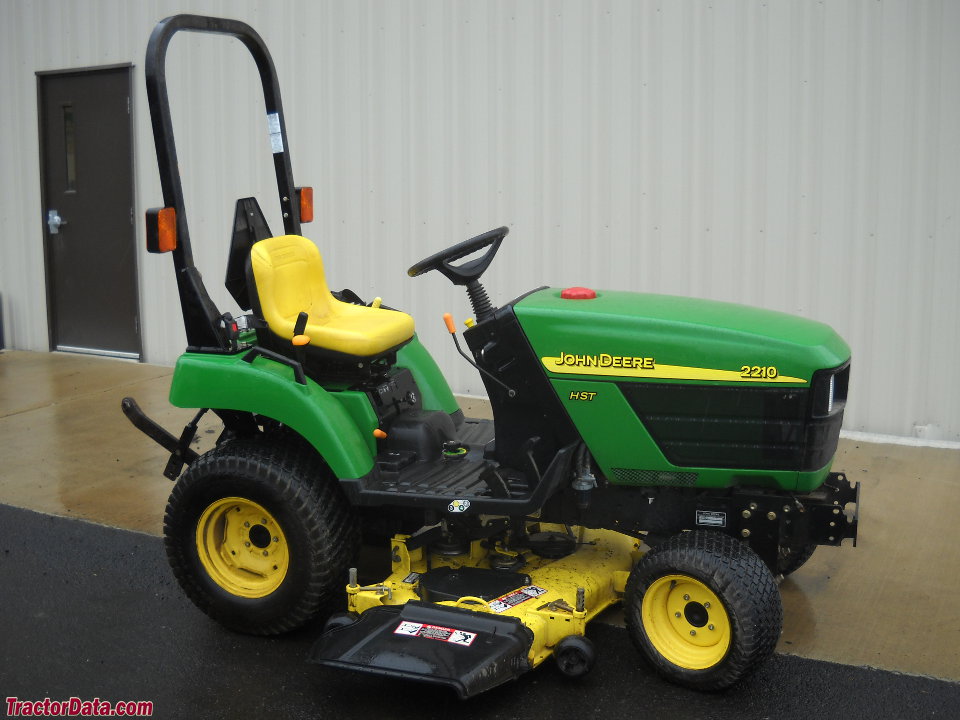

John Deere 2210
John Deere 2210 — Sub-Compact Utility tractor · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
635 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Sub-Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Power steeringReference
Two-post fixed ROPS.Reference
Engine
Yanmar 1.0L 3-cyl dieselReference
Engine (gross)17.2 kWReference
Engine (net)16.8 kWReference
Yanmar 3TNE74Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.0 LReference
Bore/Stroke74 x 78 mmReference
Power (net)16.8 kWReference
Power (gross)17.2 kWReference
Fuel systemindirect injectionReference
Air cleanerdryReference
Pre-heatingcoolant heaterReference
Compression23.5:1Reference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Starter power1.1 kWReference
Oil capacity2.0 LReference
Coolant capacity2.9 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity12.9 LReference
PTO & Hydraulics
PTO (claimed)13.2 kWReference
Hydraulic system12.9 LReference
Typeopen centerReference
Capacity12.9 LReference
Pressure137.0 barReference
Mid valves2Reference
Pump flow11.4 lpmReference
Total flow20.8 lpmReference
Steering flow9.5 lpmReference
Rear TypeIReference
Rear lift (at 24"/610mm)317 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@2600Reference
Mid PTOindependentReference
Engine RPM2100@2600Reference
Capacities
Fuel18.9 LReference
Dimensions
Wheelbase144 cmReference
Weight635 kgReference
Front tire18x8.50-10Reference
Rear tire26x12.00-12Reference
Ag front18x8.50-10Reference
Ag rear26x12.00-12Reference
Lawn/turf front18x8.50-10Reference
Lawn/turf rear26x12.00-12Reference
Industrial front18x8.50-10Reference
Industrial rear26x12.00-12Reference
Length264 cmReference
Width121 cmReference
Height (hood)106 cmReference
Height (ROPS)199 cmReference
Clearance (front axle)19 cmReference
Front tread78 cmReference
Rear tread89 cmReference
635 kgReference
Max Drawbar254 kgReference
Max front axle340 kgReference
Max rear axle1100 kgReference
John Deere 2210 attachments
54" mid-mount mower deckReference
62" mid-mount mower deckReference
snowblowerReference
bladeReference
front-end loaderReference
2210 Serial Number Location
Right side of main tractor frame, above the front axle.Reference
2210 Serial Numbers
20032100001Reference
20043100001Reference
20054310001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps20Reference
Battery CCA435Reference
Battery volts12Reference
Attachment overview
54" mid-mount mower deckReference
62" mid-mount mower deckReference
SnowblowerReference
BladeReference
Front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
