Tractor · 1993Unverified

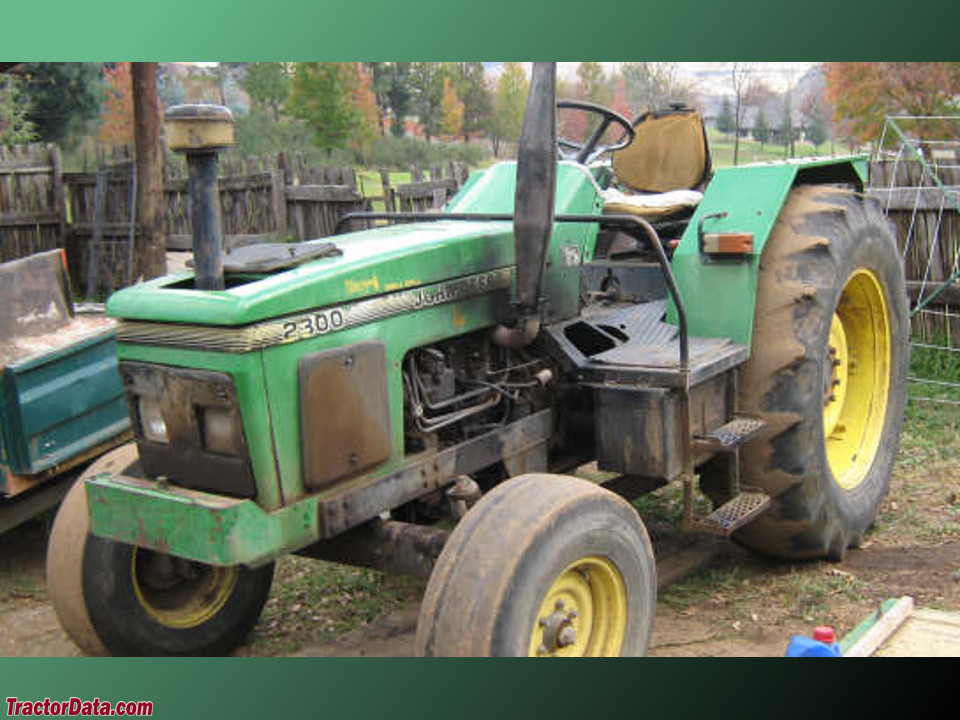

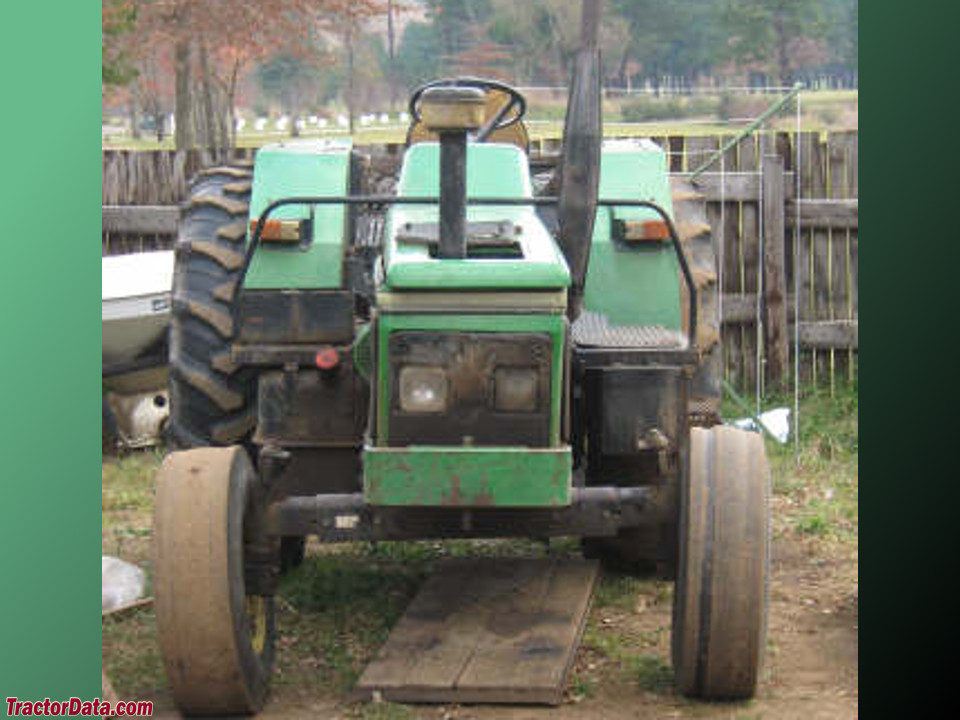

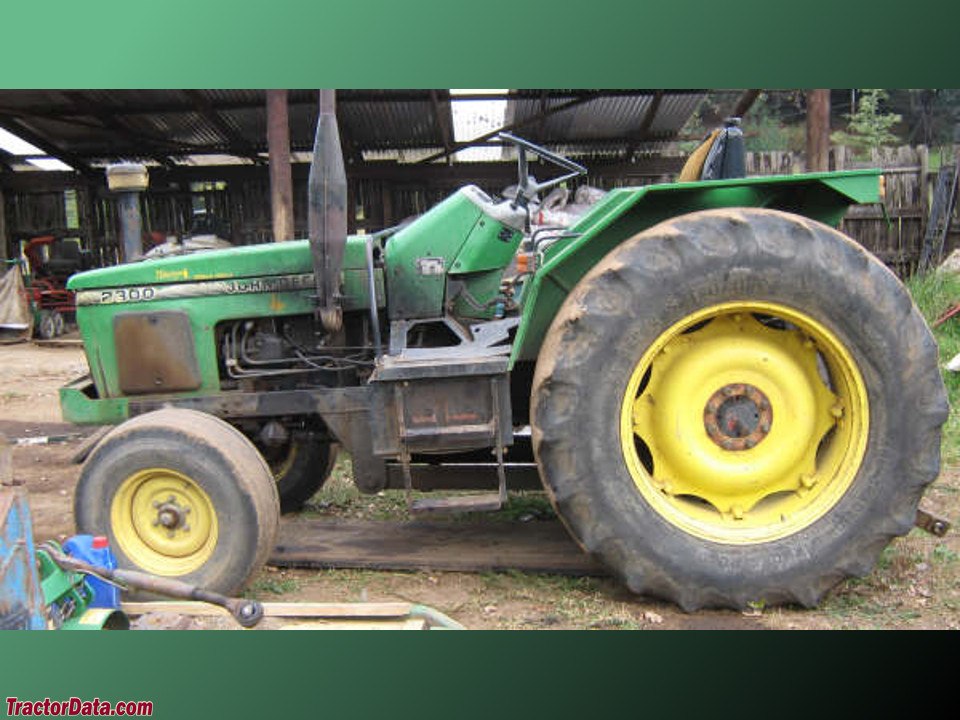

John Deere 2300

Name: John Deere 2300
Brand: John Deere

John Deere 2300 — Utility tractor · 69 hp. Reference specifications; pending source verification.

The John Deere 2300 is a tractor with a rated power output of 69 hp, falling within the mid-range of its class. It was produced from 1993 to 1998. The tractor features a 4-cylinder diesel liquid-cooled engine and four-wheel drive with a 10-speed gearbox, and it has an operating weight of 3025 kg. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

69 hp

Weight

3025 kg

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

69 hp

Recorded weight

3025 kg

Transmissions

10-speed gear

Production years

1993-1998

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerZetorReference

Utility tractorReference

Built in Brno, Czech RepublicReference

Two- or four-wheel driveReference

Power steeringReference

Hydraulic disc brakesReference

Open platform. Cab optional.Reference

Engine

Zetor 3.9L 4-cyl dieselReference

Fuel tank70.0 LReference

Fuel tank95.0 LReference

Engine (net)51.5 kWReference

ZetorReference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement3.9 LReference

Bore/Stroke102 x 120 mmReference

Rated Power (net)51.5 kWReference

Air cleanerdryReference

Compression17:1Reference

Rated RPM2200Reference

Starter volts12Reference

Transmission

10-speed gearReference

TypegearReference

Gears10 forward and 2 reverseReference

Clutch310mm cerametallic discReference

PTO & Hydraulics

PTO (claimed)49.0 kWReference

Typeopen centerReference

Pressure180.0 barReference

Valves1Reference

Pump flow40.1 lpmReference

SCV flow15.9 lpmReference

Rear TypeIIReference

Controltop link draft sensingReference

Rear lift3568 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type540/1000Reference

Engine RPM540@1994Reference

Dimensions

Weight3025 kgReference

Front tire9.00-16Reference

Rear tire16.9-34Reference

Standard tires (ag)Front: 9.00-16. Rear: 16.9-34Reference

Length409 cmReference

Width199 cmReference

Shipping weight3025 kgReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps55Reference

Battery volts12Reference

Speeds

With 16.9-34 rear tires and 25 KPH transmission.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
