John Deere 2305

Name: John Deere 2305
Brand: John Deere

John Deere 2305 — Sub-Compact Utility tractor · 24 hp. Reference specifications; pending source verification.

The John Deere 2305 is a compact tractor model with a power rating of 24 hp, placing it amongst the smaller options in its class. Manufactured from 2005 to 2010, this tractor features a 3-cylinder diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a hydrostatic transmission. The listed operating weight of the John Deere 2305 ranges from 1450 to 1865 pounds. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

24.1 hp

Weight

1450 to 1865 pounds

Catalogue coverage

Variants represented

Richest spec table

132 rows

Recorded power

24 hp

Transmissions

hydrostatic

Production years

2005-2010

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Sub-Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Original price was $11,069 in 2011Reference

Four-wheel driveReference

Final drivesspur gearReference

Power steeringReference

Wet disc brakesReference

Two-post fixed ROPS.Reference

Engine

Yanmar 1.1L 3-cyl dieselReference

Engine (gross)18.0 kWReference

Yanmar 3TNV76Reference

dieselReference

3-cylinderReference

liquid-cooled inlineReference

Displacement1.1 LReference

Bore/Stroke76 x 82 mmReference

Rated Power (gross)18.0 kWReference

Air cleanerdual dry elementReference

Compression23.4:1Reference

Rated RPM3000Reference

Operating RPM1170-3170Reference

Torque56.5 NmReference

Torque RPM3000Reference

Starter volts12Reference

Starter power1.2 kWReference

Coolant capacity3.2 LReference

Oil capacity3.2 LReference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Rated engine speed3,000 RPMReference

Engine torque at rated speed18.9 kgReference

Bore and stroke2.99x3.23 inchesReference

Compression ratio23.4:1Reference

Cooling systemliquid-cooled inlineReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity12.9 LReference

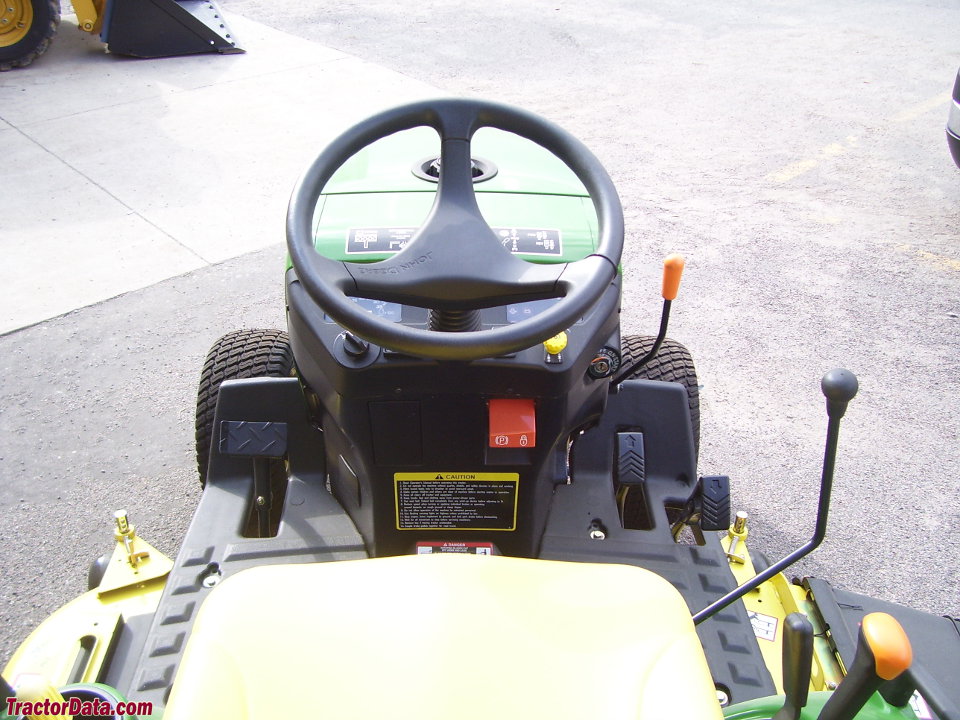

Hydrostatic transmission operated with two foot pedals and range-shift lever. Tractor must be stopped to shift ranges. Optional cruise control is engaged by dashboard button.Reference

Transmission TypeE-HSTReference

forward and reverse optionshydrostatic - infinite F and (2-range)RReference

Wheel Drive4WDReference

Rear Axle Drive Typespur gearReference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Hydraulic system12.9 LReference

Typeopen centerReference

Capacity12.9 LReference

Pressure137.0 barReference

Valves2Reference

Pump flow11.0 lpmReference

Total flow19.7 lpmReference

Steering flow8.7 lpmReference

Rear TypeI (limited)Reference

Rear lift (at ends)650 kgReference

Rear lift (at 24"/610mm)308 kgReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Capacities

Fuel20.8 LReference

Front axle2.5 LReference

Fuel tank20.8 LReference

Crankcase oil volume13.6 qtsReference

Dimensions

Wheelbase145 cmReference

Weight1450 to 1865 poundsReference

Lawn/turf front18x8.5-10Reference

Lawn/turf rear26x12.00-12Reference

Industrial front18x8.5-10Reference

Industrial rear26x12.00-12Reference

Length260 cmReference

Width114 cmReference

Height (hood)106 cmReference

Height (ROPS)196 cmReference

Clearance (front axle)19 cmReference

Front tread100 cmReference

Rear tread85 cmReference

Shipping657 kgReference

Operating845 kgReference

Max Drawbar254 kgReference

Max front axle750 kgReference

Max rear axle669 kgReference

John Deere 2305 attachments

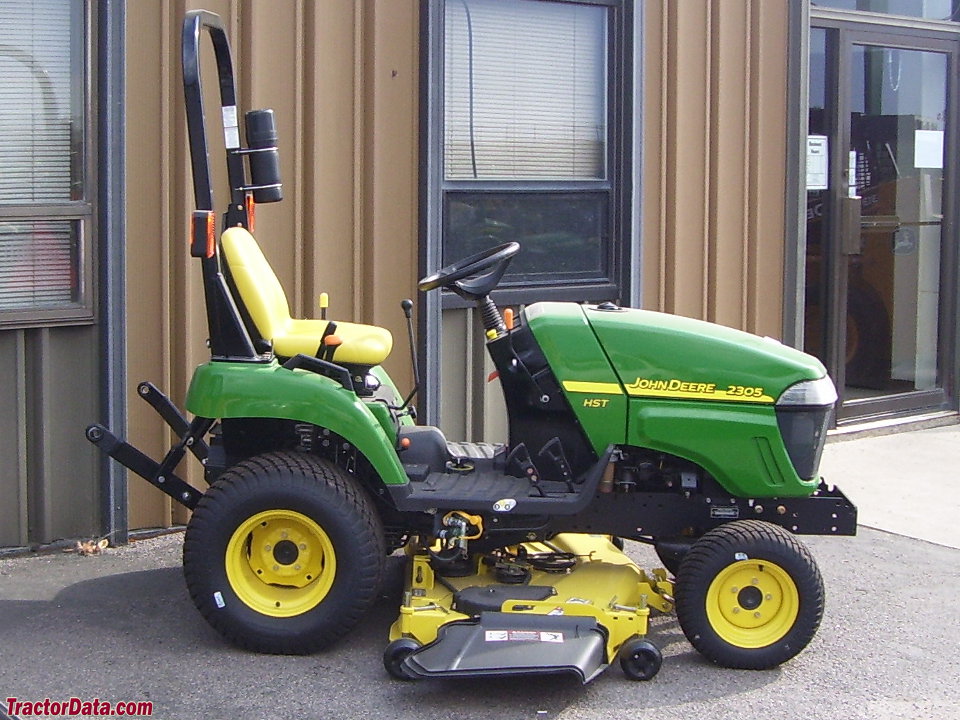

54" mid-mount mower deckReference

62" mid-mount mower deckReference

front-end loaderReference

2305 Serial Number Location

Serial number plate on the right side of the John Deere 2305 tractor frame, above the front wheel.Reference

2305 Serial Numbers

2005100001Reference

2006200001Reference

2007320001Reference

2008420001Reference

2009520001Reference

2010620001Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Battery CCA500Reference

Battery volts12Reference

Total cold cranking amps500 CCAReference

Attachment overview

54" mid-mount mower deckReference

62" mid-mount mower deckReference

Front-end loaderReference

Speeds

With 26x12.00-12 R4 rear tires.Reference

General

Make & ModelJohn DeereReference

Cruise controlAvailableReference

SCV controljoystickReference

Drawbar Maximum vertical load254.9 kgReference

Rollover protective structureTwo-post fixed ROPSReference

Country of manufacturerUSAReference

Power

Max Power24.1 hpReference

PTO

PTO Power18 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,100 RPMReference

Steering & brakes

Brakeswet discReference

Steering typePowerReference

Hydraulics

Pump Rated Output (total)5.2 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure1,987 psiReference

Remote Valves2 ValvesReference

Steering & Implements flow2.3 gpm (2.9 gpm)Reference

Rear Hitch category (SAE designation)Category I (limited)Reference

Rear Hitch maximum lift capacity650 kgReference

Dimensions & weight

Height Over ROPS196.9 cmReference

Overall Length260.6 cmReference

Overall Width114 cmReference

Front axle clearance19.6 cmReference

Overall weight657.7 kgReference

Wheels & tyres

Rear Wheel Type26x12.00-12 inchesReference

Rear wheel tread range85.3 cmReference

Front Wheel Type18x8.5-10 inchesReference

Front Wheel tread range100.6 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
