Tractor · 2006Unverified

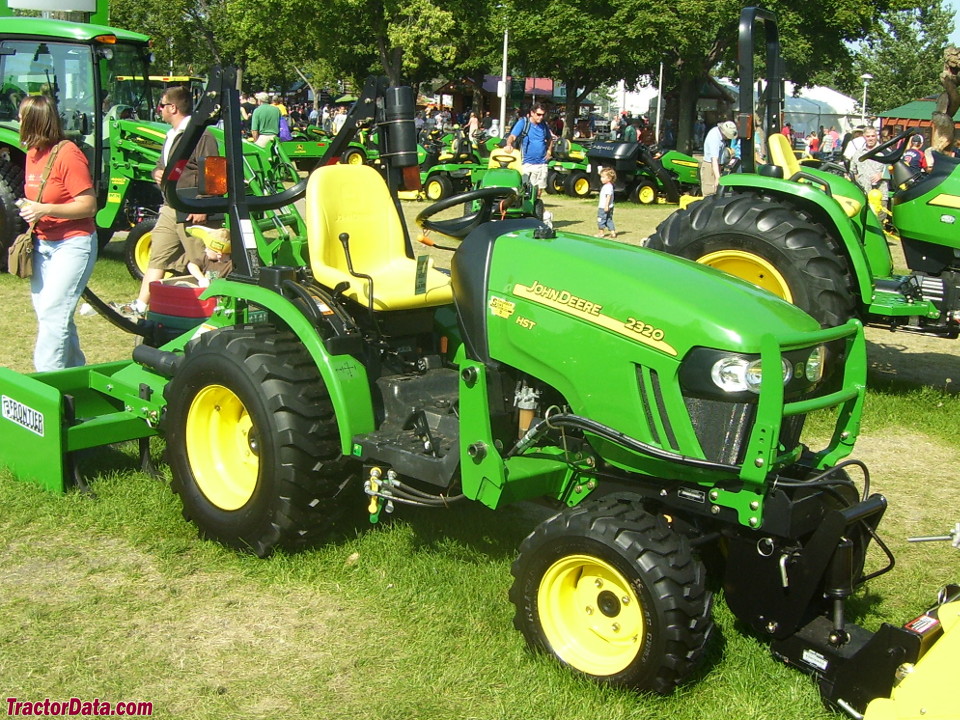

John Deere 2320

Name: John Deere 2320
Brand: John Deere

John Deere 2320 — Compact Utility tractor · 24 hp. Reference specifications; pending source verification.

The John Deere 2320 is a tractor with a power rating of approximately 24 hp, positioning it at the lower end of its class. Produced from 2006 to 2011, this model is equipped with a 3-cylinder diesel liquid-cooled engine, coupled with four-wheel drive and a hydrostatic transmission. The tractor's operating weight is listed at 752 kg, and it is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

24 hp

Max power

24.1 hp

Weight

752 kg

Catalogue coverage

Variants represented

Richest spec table

135 rows

Recorded power

24 hp

Recorded weight

752 kg

Transmissions

hydrostatic

Production years

2006-2011

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

Compact Utility tractorReference

Built in Augusta, Georgia, USAReference

Four-wheel driveReference

Final drivesspur gearReference

SteeringpowerReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Yanmar 1.1L 3-cyl dieselReference

Engine (gross)18.0 kWReference

Yanmar 3TNV76Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke76 x 82 mmReference

Rated Power (gross)18.0 kWReference

Air cleanerdry dual elementReference

Compression23.4:1Reference

Oil capacity3.2 LReference

Coolant capacity3.2 LReference

Fuel TypeDieselReference

No of Cylinders3 cylinderReference

Bore and stroke2.99x3.23 inchesReference

Compression ratio23.4:1Reference

Cooling systemliquid-cooledReference

Transmission

hydrostaticReference

TypehydrostaticReference

Gearsinfinite forward and reverse (2-range)Reference

Oil capacity9.8 LReference

Transmission TypeE-HSTReference

forward and reverse optionshydrostatic - infinite F and (2-range)RReference

Wheel Drive4WDReference

Rear Axle Drive Typespur gearReference

PTO & Hydraulics

PTO (claimed)13.4 kWReference

Hydraulic system9.8 LReference

Typeopen centerReference

Capacity9.8 LReference

Pressure166.9 barReference

Valves2Reference

Pump flow12.9 lpmReference

Total flow21.2 lpmReference

Steering flow8.3 lpmReference

Rear TypeIReference

Controlposition controlReference

Rear lift (at ends)650 kgReference

Rear lift (at 24"/610mm)521 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Mid PTOindependentReference

Mid PTO Type2100Reference

Capacities

Fuel23.1 LReference

Fuel tank23.1 LReference

Crankcase oil volume3.4 qtsReference

Dimensions

Wheelbase160 cmReference

Weight752 kgReference

Front tire23x8.5-12Reference

Rear tire31x12-16.5Reference

Weight165 kgReference

Weight406 kgReference

Ag front23x8.5-12Reference

Ag rear31x12-16.5Reference

Length277 cmReference

Width94 cmReference

Width129 cmReference

Height (hood)135 cmReference

Height (ROPS)226 cmReference

Height (Folded ROPS)172 cmReference

Shipping weight752 kgReference

John Deere 2320 attachments

54" mid-mount mower deckReference

front-end loaderReference

backhoeReference

2320 Serial Number Location

Serial number on the right side of the tractor frame, above the front axle.Reference

2320 Serial Numbers

2006H100001 (USA)Reference

2007H202001 (USA)Reference

2008H302001 (USA)Reference

2009H402001 (USA)Reference

2010H502001 (USA)Reference

2011H610001 (USA)Reference

2007E286001 (EU)Reference

2008E382001 (EU)Reference

2009E482001 (EU)Reference

2010E582001 (EU)Reference

2011E61001 (EU)Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps20Reference

Battery CCA500Reference

Battery volts12Reference

Total cold cranking amps500 CCAReference

Attachment overview

54" mid-mount mower deckReference

Front-end loaderReference

BackhoeReference

54" Mower deck

Typemid-mount John Deere 54DReference

Type3-bladeReference

Cutting width137 cmReference

Overall width163 cmReference

Cut height2 to 13 cmReference

John Deere 46 Backhoe

Backhoe typeJohn Deere 46 BackhoeReference

Transport height152 cmReference

2-Foot flat digging depth198 cmReference

Reach from pivot256 cmReference

Loading height152 cmReference

Bucket Rotation180°Reference

Swing Arc180°Reference

Bucket force1111 kgReference

Dipperstick force567 kgReference

General

Make & ModelJohn DeereReference

Cruise controlAvailableReference

SCV controljoystickReference

Rollover protective structureTwo-post folding ROPSReference

Country of manufacturerUSAReference

Power

Max Power24.1 hpReference

PTO

PTO Power18 hpReference

Rear PTO PowerAvailableReference

Rear PTO RPM540 RPMReference

Mid PTO RPM2,100 RPMReference

Steering & brakes

Brakeswet discReference

Steering typepowerReference

Hydraulics

Pump Rated Output (total)5.6 gpmReference

Hydraulics Typeopen centerReference

Maximum operating pressure2,421 psiReference

Remote Valves2 ValvesReference

Steering & Implements flow2.2 gpm (3.4 gpm)Reference

Rear Hitch category (SAE designation)Category IReference

Rear Hitch maximum lift capacity650 kgReference

Rear Hitch Sensing Typeposition controlReference

Dimensions & weight

Height Over ROPS226.1 cmReference

Overall Length277.4 cmReference

Overall weight753 kgReference

Wheels & tyres

Rear Wheel Type31x12-16.5Reference

Front Wheel Type23x8.5-12Reference

Operator station

Cab AvailabilityAvailableReference

Seat SuspensionAvailableReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
