Tractor · 1987Unverified

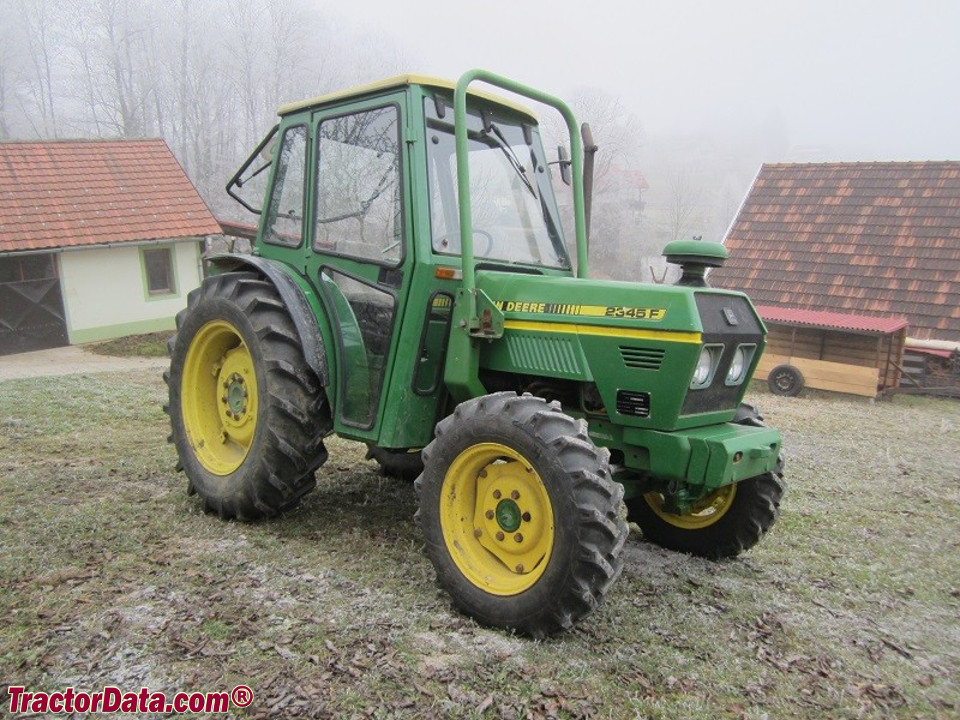

John Deere 2345F

Name: John Deere 2345F
Brand: John Deere

John Deere 2345F — 45F Series · 66 hp. Reference specifications; pending source verification.

The John Deere 2345F is a tractor model with a rating of approximately 66 hp, a mid-range output for its class. Production of the model occurred between 1987 and 1990. It features a 3-cylinder turbocharged diesel liquid-cooled engine paired with a four-wheel drive system and an 8-speed gearbox. The tractor's operating weight is specified as 4057 to 4641 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

66 hp

Weight

4057 to 4641 pounds

Catalogue coverage

Variants represented

Richest spec table

80 rows

Recorded power

66 hp

Transmissions

8-speed synchronized

Production years

1987-1990

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

DistributorJohn DeereReference

ManufacturerGoldoniReference

Orchard/Vineyard tractorReference

Built in ItalyReference

Two- or four-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Mechanical wet disc brakesReference

Two-post mid-mount folding ROPS. Quick-mount cab available.Reference

Engine

John Deere 2.9L 3-cyl dieselReference

Fuel tank40.1 LReference

Engine49.3 kWReference

John DeereReference

turbocharged dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.9 LReference

Bore/Stroke106 x 110 mmReference

Power49.3 kWReference

Air cleanerdryReference

Rated RPM2300Reference

Torque245.0 NmReference

Torque RPM1500Reference

StarterelectricReference

Starter volts12Reference

Oil change200 hReference

Transmission

8-speed synchronizedReference

16-speed creeperReference

TypesynchronizedReference

Gears8 forward and 4 reverseReference

Four gears in two ranges, plus reverse range.Reference

TypecreeperReference

Gears16 forward and 8 reverseReference

PTO & Hydraulics

Typeopen centerReference

Pressure180.0 barReference

Rear valves3Reference

Mid valves3Reference

Pump flow32.9 lpmReference

Pump flow65.9 lpmReference

Rear TypeIIN/IReference

Controltop-link draft sensingReference

Rear lift (at 24"/610mm)1450 kgReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@2165Reference

Engine RPM540E@1624Reference

Dimensions

Wheelbase183 cmReference

Weight4057 to 4641 poundsReference

Front tire6.50-16Reference

2WD Low-Profile Rear tire380/70R24Reference

2WD Low-Profile Standard tires (ag)Front: 6.50-16. Rear: 380/70R24Reference

4WD Low-Profile Standard tires (ag)Front: 280/60-15.5. Rear: 14.5-20Reference

2WD High-Profile Standard tires (ag)Front: 6.50-16. Rear: 11.2-28Reference

4WD High-Profile Standard tires (ag)Front: 250/70-18. Rear: 14.9-24Reference

4WD High-Profile Optional tires (ag)Front: 7.50-18. Rear: 14.9-24Reference

Length310 cmReference

Width131 cmReference

2WD Low-Profile Ground clearance35 cmReference

4WD Low-Profile Ground clearance24 cmReference

2WD High-Profile Ground clearance44 cmReference

4WD High-Profile Ground clearance37 cmReference

2WD Front tread114 to 144 cmReference

4WD Front tread112 to 149 cmReference

Rear tread99 to 147 cmReference

2WD ROPS1840 kgReference

2WD Cab1955 kgReference

4WD ROPS1989 kgReference

4WD Cab2105 kgReference

Low-Profile Steering wheel124 cmReference

High-Profile Steering wheel134 cmReference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps35Reference

Battery volts12Reference

Battery AH100Reference

Capacities

Max capacity3400 kgReference

John Deere 2345F Height

Low-Profile ROPS199 cmReference

High-Profile ROPS207 cmReference

Low-Profile Cab200 cmReference

High-Profile Cab207 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
