Tractor · 1983Unverified

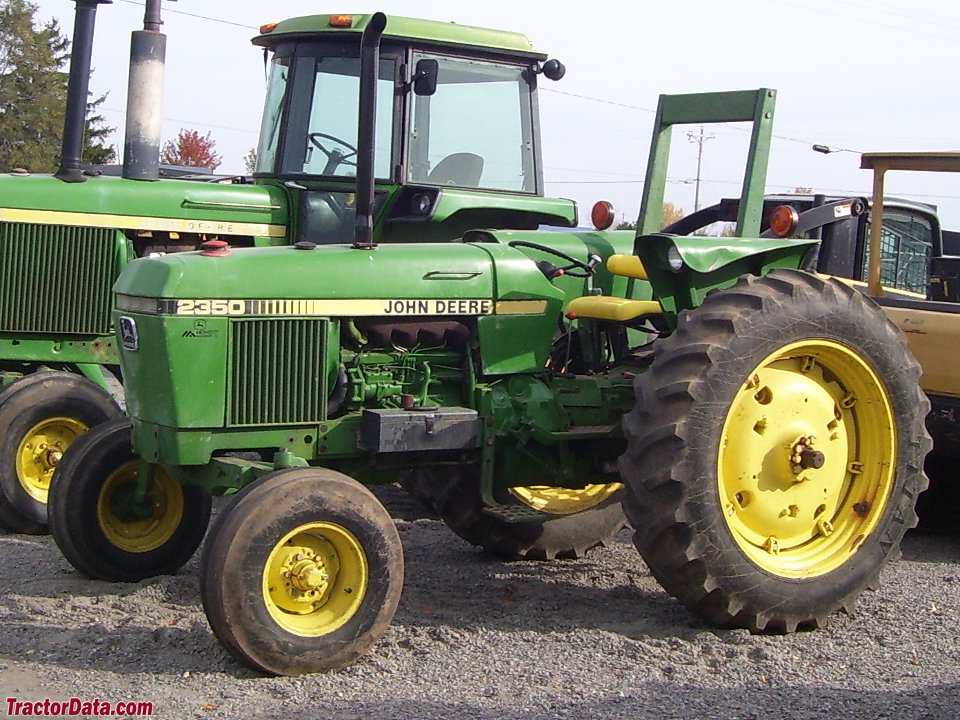

John Deere 2350
John Deere 2350 — Utility tractor · 56 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
56 hp
Max power
34.8 kW
Weight
6810 to 8220 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price$19155 (1983 2WD )Reference
Original price$23,770 (1983 4WD )Reference
Two- or four-wheel driveReference
Final drivesinboard planetaryReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post fixed ROPS. Canopy available. Sound-Gard cab optional with available heat and air-conditioning.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank90.8 LReference
Drawbar (tested)34.8 kWReference
John DeereReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Compression17.4:1Reference
Rated RPM2500Reference
Operating RPM1500-2500Reference
Torque217.0 NmReference
Torque RPM1400Reference
Firing order1-3-4-2Reference
Starter volts12Reference
Coolant capacity12.9 LReference
Oil capacity8.4 LReference
Oil change100 hReference
Power at rated engine speed41.9 kWReference
Max power34.8 kWReference
Transmission
8-speed partially synchronizedReference
16-speed two-speed power shiftReference
8-speed power shuttleReference
TransmissionJohn Deere Top-Shaft SynchronizedReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Oil capacity45.0 LReference
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.Reference
TransmissionJohn Deere Hi-Lo Top-Shaft SynchronizedReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
Clutchdry discReference
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle).Reference
TransmissionJohn Deere Direction ReverserReference
Typepower shuttleReference
The Direction Reverser transmission provides clutchless hydraulic shuttle shifting using a left-hand reverser lever. Reverser not available with 4WD or cab. Reverse only operates in low range.Reference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
PTO (tested)41.9 kWReference
Typeclosed centerReference
Pressure155.1 barReference
Rear valves1 or 2Reference
Pump flow49.2 lpmReference
Pump flow87.1 lpmReference
Rear TypeII/IReference
Controlload and depth controlReference
Rear lift1240 kgReference
Rear PTOindependentReference
Rear PTOliveReference
Rear PTO Type540Reference
Engine RPM540@2382Reference
Power at rated PTO speed41.9 kWReference
Dimensions
2WD Wheelbase226 cmReference
4WD Wheelbase228 cmReference
Weight6810 to 8220 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 11.2-24. Rear: 16.9-30Reference
4WD Optional tires (ag)Front: 9.5-24. Rear: 16.9-28Reference
Lawn/turf front27x9.5-15Reference
Lawn/turf rear21.5L-16.1Reference
2WD Length335 cmReference
4WD Length338 cmReference
Height (steering wheel)155 cmReference
Height (cab)256 cmReference
2WD Clearance (front axle)62 cmReference
4WD Clearance (front axle)44 cmReference
Flange rear axleReference
Rack-and-pinion rear axleReference
2WD cab Shipping3411 kgReference
4WD cab Shipping3728 kgReference
2WD ROPS Operating3089 kgReference
Ballasted3261 kgReference
John Deere 2350 attachments
front-end loaderReference
2350 Serial Number Location
Right side of main tractor frame, above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps33Reference
Cab Charging amps55Reference
Batteries1 (ROPS)Reference
Batteries2 (cab)Reference
Battery volts12Reference
Battery AH55Reference
Attachment overview
John Deere 146 loaderReference
John Deere 175 loaderReference
John Deere 240 loaderReference
John Deere 245 loaderReference
Test results
Diesel 16-speed 2WDApril 12 - May 5, 1983Link: Nebraska Tractor Test 1470 fileReference
PTO performanceReference
Fuel use14.0 l/hourReference
Fuel use13.6 l/hourReference
Drawbar performanceReference
Gear 9 used for power test.Reference
Max pull2580 kgReference
Gear 3L used for pull test.Reference
Speeds
With 16.9-30 rear tires.Reference
With 16.9-28 rear tires.Reference
