Tractor · 1987Unverified

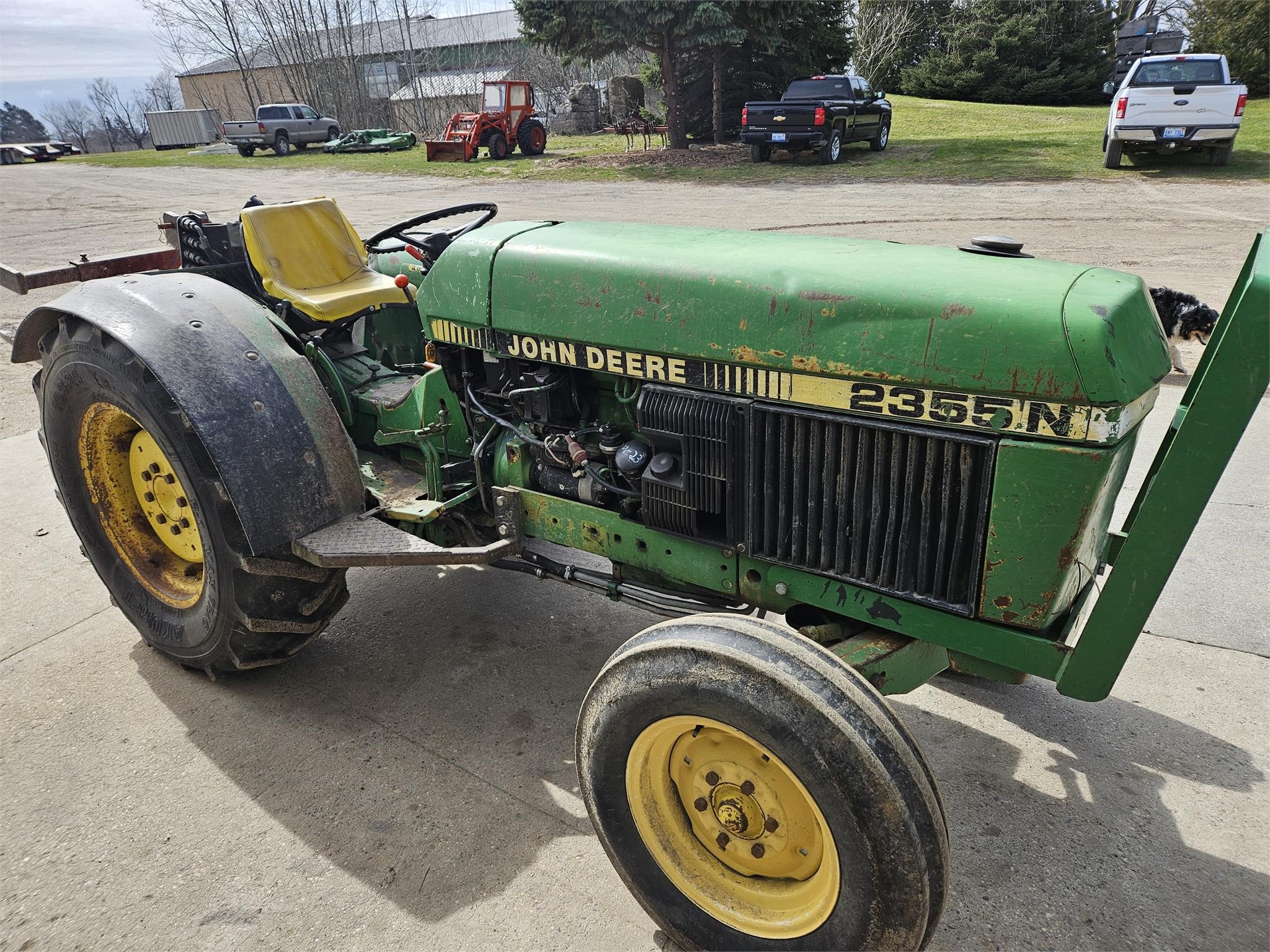

John Deere 2355N
John Deere 2355N — 55 Utility Series · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Orchard/Vineyard tractorReference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (optional)Reference
SteeringpowerReference
Hydraulic disc brakesReference
Telescoping two-post Roll-Gard ROPS.Reference
Variants
2355utility tractorReference
Engine
John Deere 2.9L 3-cyl dieselReference
Fuel tank67.0 LReference
Engine48.5 kWReference
John DeereReference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power48.5 kWReference
Rated RPM2500Reference
Rated RPM2300 (TSS)Reference
Oil capacity6.0 LReference
Coolant capacity10.0 LReference
Transmission
8-speed collar shiftReference
8-speed partially synchronizedReference
16-speed partial power shiftReference
12-speedReference
TransmissionJohn DeereReference
Typecollar shiftReference
Gears8 forward and 4 reverseReference
TransmissionJohn Deere Top-Shaft SynchronizedReference
Typepartially synchronizedReference
TransmissionJohn Deere TSS Hi-LoReference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
TransmissionJohn Deere TSS CreeperReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Typeclosed centerReference
Pressure160.0 barReference
Pump flow45.4 lpmReference
Rear PTOliveReference
Rear PTOindependent (TSS)Reference
Clutchwet discReference
Rear PTO Type540Reference
Dimensions
Front tire6.5x16Reference
Rear tire14.9x24Reference
Standard tires (ag)Front: 6.5x16. Rear: 14.9x24Reference
Width165 cmReference
Height149 cmReference
2355N Serial Numbers
1987600000Reference
1988624800Reference
1989654199Reference
199068555Reference
1991717916Reference
1992746510Reference
1993775104Reference
1994803700Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery CCA610Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
