Tractor · 1993Unverified

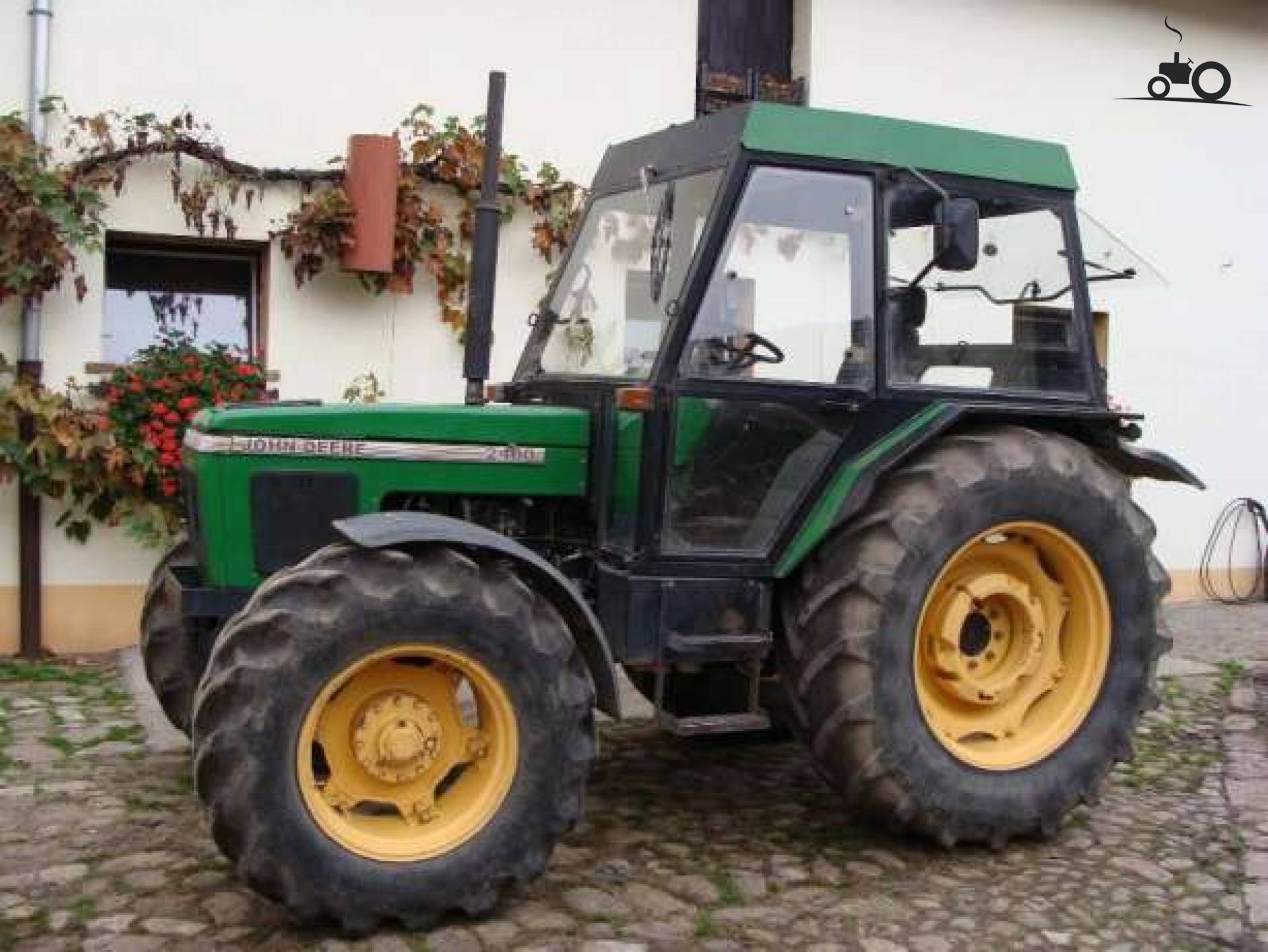

John Deere 2400
John Deere 2400 — Utility tractor · 78 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
78 hp
Weight
6669 to 7760 pounds
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerZetorReference
Utility tractorReference
Built in Brno, Czech RepublicReference
Two- or four-wheel driveReference
Power steeringReference
Hydraulic disc brakesReference
Open platform. Cab optional.Reference
Engine
Zetor 3.9L 4-cyl dieselReference
Fuel tank70.0 LReference
Fuel tank95.0 LReference
Engine (net)58.2 kWReference
ZetorReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 120 mmReference
Rated Power (net)58.2 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2200Reference
Starter volts12Reference
Transmission
10-speed gearReference
TypegearReference
Gears10 forward and 2 reverseReference
Clutch310mm cerametallic discReference
PTO & Hydraulics
PTO (claimed)53.0 kWReference
Typeopen centerReference
Pressure180.0 barReference
Valves1Reference
Pump flow40.1 lpmReference
SCV flow15.9 lpmReference
Rear TypeIIReference
Controltop link draft sensingReference
Rear lift3568 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Engine RPM540@1994Reference
Dimensions
Weight6669 to 7760 poundsReference
Front tire9.00-16Reference
2WD Rear tire16.9-34Reference
2WD Standard tires (ag)Front: 9.00-16. Rear: 16.9-34Reference
4WD Standard tires (ag)Front: 12.4-24. Rear: 16.9-34Reference
2WD Shipping weight3025 kgReference
4WD Shipping weight3519 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 16.9-34 rear tires and 25 KPH transmission.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
