Tractor · 1996Unverified

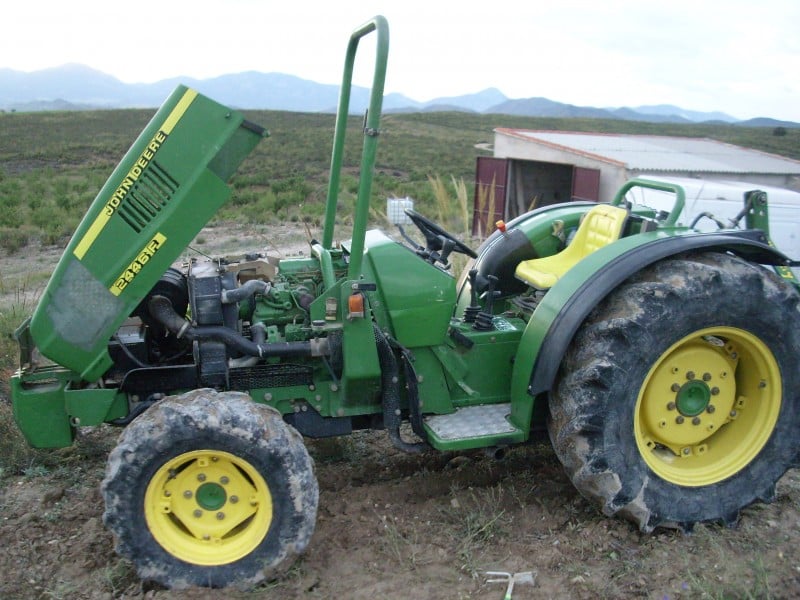

John Deere 2446F
John Deere 2446F — 46 Series · 68 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
68 hp
Weight
2249 kg
Hover a source tag to verify
Overview
DistributorJohn DeereReference
ManufacturerGoldiniReference
Orchard/Vineyard tractorReference
Built in ItalyReference
The John Deere 2446F is the same as the Goldoni Star 75.Reference
Four-wheel driveReference
Differential lockelectro-hydraulic rearReference
Power steeringReference
Wet disc brakesReference
Two-post mid-mount folding ROPS.Reference
Engine
John Deere 2.9L 3-cyl dieselReference
Engine52.2 kWReference
John Deere 3029Reference
turbocharged dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.9 LReference
Bore/Stroke106 x 110 mmReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Air cleanerdryReference
Compression17.8:1Reference
Rated RPM2300Reference
Torque248.0 NmReference
Torque RPM1300Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed synchronizedReference
8-speedReference
TypesynchronizedReference
Gears16 forward and 8 reverseReference
Gears8 forward and reverseReference
Four gears in two ranges with shuttle.Reference
PTO & Hydraulics
PTO (claimed)50.7 kWReference
Typeopen centerReference
Pressure180.0 barReference
Pump flow32.9 lpmReference
Pump flow50.0 lpmReference
Rear TypeII/IReference
Rear lift (at ends)2150 kgReference
Rear PTOindependentReference
Rear PTO Type540/540EReference
Dimensions
Wheelbase191 cmReference
Weight2249 kgReference
Front tire10.0/75-15.3Reference
Rear tire380/70R24Reference
Standard tires (ag)Front: 10.0/75-15.3. Rear: 380/70R24Reference
Length330 cmReference
Height (steering wheel)137 cmReference
Height (ROPS)216 cmReference
Max weight3299 kgReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
