Tractor · 1987Unverified

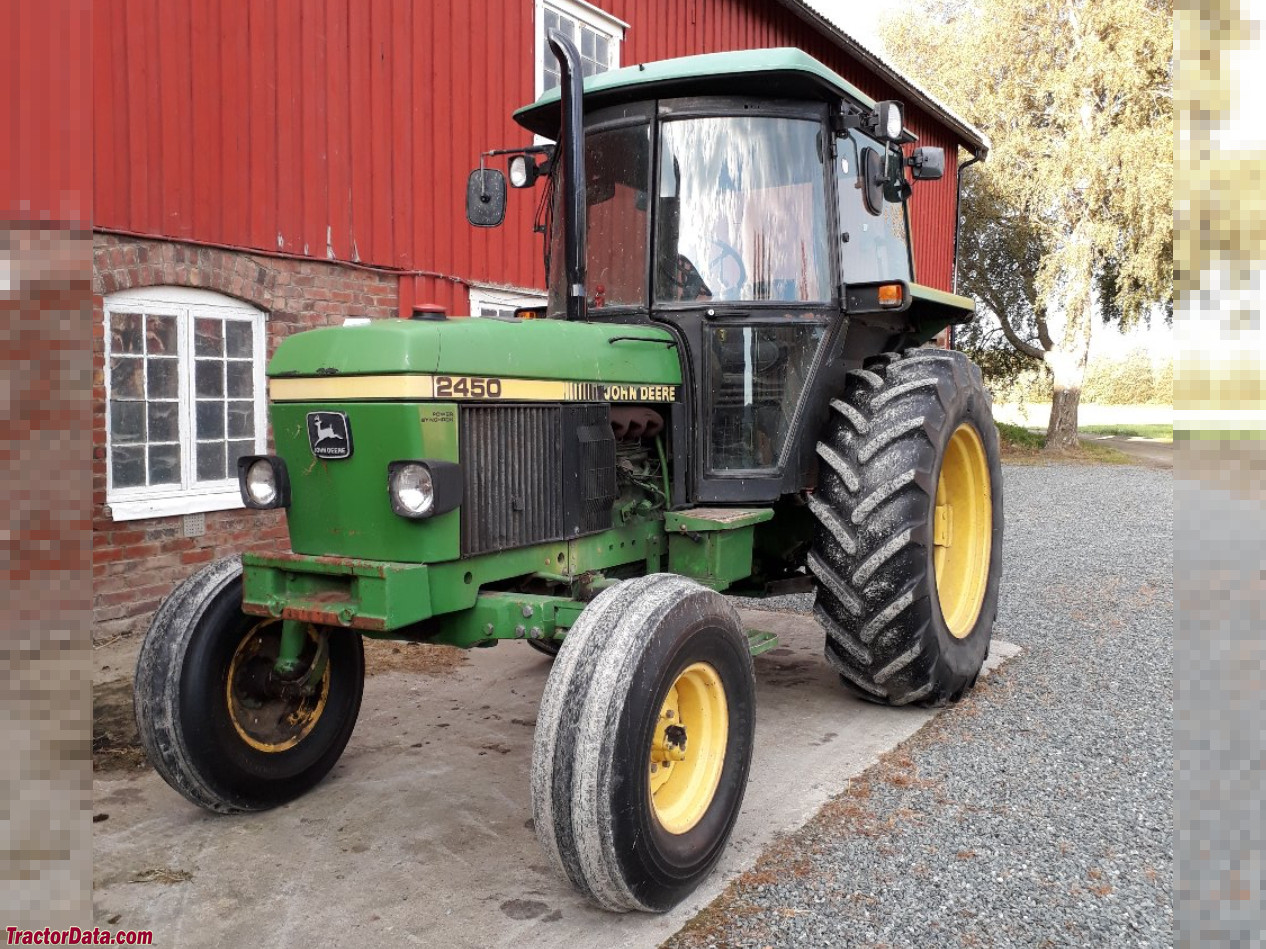

John Deere 2450
John Deere 2450 — Utility tractor · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Weight
7077 to 8157 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Differential lockmechanical rearReference
Steeringpower assistReference
SteeringhydrostaticReference
Hydraulic wet disc brakesReference
ROPS. MC1 or Sound-Gard cab optional. CC2 cab available in 1991.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank84.0 LReference
Fuel tank135.9 LReference
Engine52.2 kWReference
John DeereReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Power52.2 kWReference
Rated RPM2300Reference
Starter volts12Reference
Starter power3.0 kWReference
Transmission
8-speed partially synchronizedReference
16-speed two-speed power shiftReference
TransmissionSyncro-RangeReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchmechanical discReference
TransmissionHi-LoReference
Typetwo-speed power shiftReference
Gears16 forward and 8 reverseReference
ClutchhydraulicReference
PTO & Hydraulics
Typeclosed-center constant pressureReference
Pressure190.0 barReference
Pump flow43.9 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift (at ends)3069 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Engine RPM540@2075Reference
Dimensions
2WD Wheelbase226 cmReference
4WD Wheelbase228 cmReference
Weight7077 to 8157 poundsReference
Front tire7.50-18Reference
2WD Rear tire13.6-38Reference
2WD Standard tires (ag)Front: 7.50-18. Rear: 13.6-38Reference
4WD Standard tires (ag)Front: 11.2-28. Rear: 13.6-38Reference
Length419 cmReference
Width186 cmReference
4WD Clearance (front axle)49 cmReference
2WD Clearance (front axle)66 cmReference
2WD Front tread135 to 200 cmReference
4WD Front tread150 to 200 cmReference
Rear tread150 to 199 cmReference
2WD MC1 Shipping3210 kgReference
4WD MC1 Shipping3509 kgReference
2WD SG2 Shipping3395 kgReference
4WD SG2 Shipping3700 kgReference
Electrical
GroundnegativeReference
Charging amps55Reference
Batteries2Reference
Battery volts12Reference
Battery AH55Reference
John Deere 2450 Height
Cab244 cmReference
Cab249 cmReference
Cab266 cmReference
Speeds
With 13.6-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
