Tractor · 1966Unverified

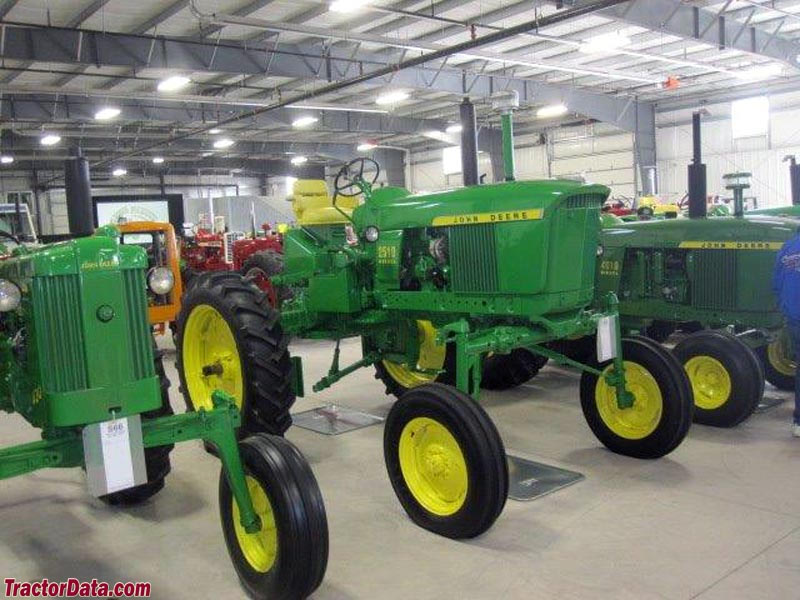

John Deere 2510 Hi-Crop

Name: John Deere 2510 Hi-Crop
Brand: John Deere

John Deere 2510 Hi-Crop — High-Clearance tractor. Reference specifications; pending source verification.

The John Deere 2510 Hi-Crop is a tractor model manufactured from 1966 to 1968. It is equipped with a 4-cylinder diesel liquid-cooled engine, which powers a two-wheel drive system with a powershift transmission. The listed weight of this model is 7230 to 7380 pounds. It is designed for use in various jobs.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Weight

7230 to 7380 pounds

Catalogue coverage

Variants represented

Richest spec table

106 rows

Recorded weight

3279 kg

Transmissions

8-speed partially synchronized

Production years

1966-1968

Verified variants

1 linked source document displayed

Hover a source tag to verify

Overview

ManufacturerJohn DeereReference

High-Clearance tractorReference

Built in Waterloo, Iowa, USAReference

Total built139 (total Hi-Crop)Reference

Total built103 (diesel Syncro-Range)Reference

Total built29 (diesel Power Shift)Reference

Total built4 (gas Syncro-Range)Reference

Total built3 (gas Power Shift)Reference

Two-wheel driveReference

Differential lockmechanical rearReference

Power steeringReference

Hydraulic wet disc brakesReference

Open operator station.Reference

Variants

2510row-cropReference

2510HChigh-cropReference

Engine

John Deere 3.0L 4-cyl gasolineReference

John Deere 3.3L 4-cyl dieselReference

John DeereReference

gasolineReference

4-cylinder 8-valveReference

liquid-cooled inline valve-in-headReference

Displacement3.0 LReference

Bore/Stroke98 x 98 mmReference

Fuel systemcarburetorReference

Air cleanerdryReference

Compression7.5:1Reference

Rated RPM2500Reference

Idle RPM800-2650Reference

Operating RPM1500-2500Reference

Firing order1-3-4-2Reference

Starter volts12Reference

Coolant capacity13.2 LReference

Sparkplug gap0.635 mmReference

Point gap0.508 mmReference

Intake valve clearance0.356 mmReference

Exhaust valve clearance0.559 mmReference

Oil capacity6.6 LReference

Oil change200 hReference

dieselReference

Displacement3.3 LReference

Bore/Stroke98 x 110 mmReference

Air cleaneroil bathReference

Pre-heatingether injectionReference

Pre-heatingblock heater (optional)Reference

Compression16.3:1Reference

Exhaust valve clearance0.457 mmReference

Transmission

8-speed partially synchronizedReference

8-speed full power shiftReference

TransmissionJohn Deere Syncro-RangeReference

Typepartially synchronizedReference

Gears8 forward and 2 reverseReference

Clutchdry discReference

Oil capacity41.6 LReference

Oil capacity30.3 LReference

Oil typeDeere 303Reference

Oil change1200 hReference

Four shift stations with two forward gears gear. A reverse gear is also available in stations one and two. Synchronized shifting between gears within each station. Tractor must be stopped to shift between stations.Reference

TransmissionJohn Deere Power ShiftReference

Typefull power shiftReference

Gears8 forward and 4 reverseReference

Clutchhydraulic wet discReference

Oil capacity53.0 LReference

Oil capacity41.6 LReference

Capacities

Fuel98.4 LReference

PTO & Hydraulics

Hydraulic system41.6 LReference

Hydraulic system53.0 LReference

Typeclosed center constant pressureReference

Capacity41.6 LReference

Capacity53.0 LReference

Pressure155.1 barReference

Valves1 or 2Reference

Oil typeDeere 303Reference

Rear TypeII/IReference

Controlposition and top-link draft controlReference

Rear PTOindependentReference

Rear PTO Type540/1000 (1.375)Reference

Rear PTO Type1000 (1.375)Reference

Engine RPM540@2100Reference

Engine RPM1000@2100Reference

Front PTOoptionalReference

Front PTO Type1000Reference

Dimensions

Wheelbase235 cmReference

Weight7230 to 7380 poundsReference

Front tire7.50-20Reference

Rear tire13.6-38Reference

Standard tires (ag)Front: 7.50-20. Rear: 13.6-38Reference

Length355 cmReference

Width242 cmReference

Height (steering wheel)228 cmReference

Shipping weight3279 kgReference

Shipping weight3347 kgReference

Front tread152 to 213 cmReference

Front tread165 to 226 cmReference

Rear tread185 to 246 cmReference

Rear tread152 to 248 cmReference

2510 Hi-Crop Serial Numbers

Location:Serial number plate on the rear of the John Deere 2510, above the PTO shaft.Reference

19661000Reference

19678958Reference

196814291Reference

Final16501Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Batteries1 (gas)Reference

Batteries2 (diesel)Reference

Battery volts12Reference

Battery AH75Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
