Tractor · 2009Unverified

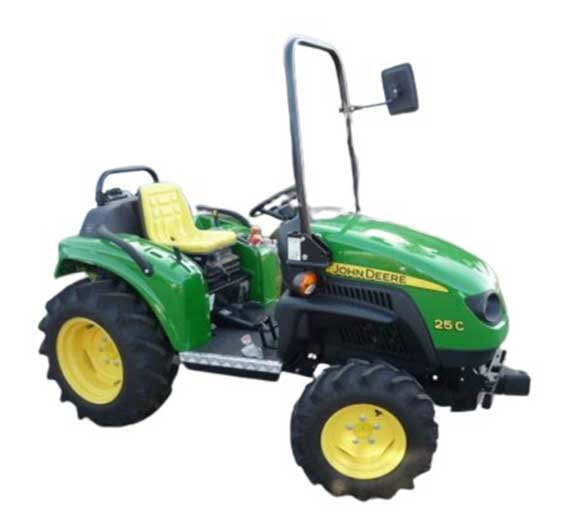

John Deere 25C
John Deere 25C — Milenio C Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
889 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Power steeringReference
Two-post mid-mount folding ROPS.Reference
Engine
Yanmar 1.1L 3-cyl dieselReference
Fuel tank18.2 LReference
Engine (gross)17.7 kWReference
Engine (net)16.3 kWReference
Yanmar 3TNV76Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke76 x 82 mmReference
Rated Power (net)16.3 kWReference
Rated Power (gross)17.7 kWReference
Rated RPM2800Reference
Torque65.0 NmReference
Torque RPM1800Reference
Starter typeelectricReference
Transmission
8-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears8 forward and reverseReference
Four gears in two ranges with reverser.Reference
PTO & Hydraulics
PTO (claimed)13.2 kWReference
Pressure150.0 barReference
Pump flow14.0 lpmReference
Rear TypeINReference
Rear lift (at 24"/610mm)249 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight889 kgReference
Front tire6.5/80x12Reference
Rear tire8.25x16Reference
Ag front6.5/80x12Reference
Ag rear8.25x16Reference
Ag rear250x80-16Reference
Lawn/turf front20x8-10Reference
Lawn/turf rear27x10.5-15Reference
Industrial front25x5.5-14Reference
Industrial rear15-19.5Reference
Length245 cmReference
Width103 cmReference
Height (ROPS)138 cmReference
Ground clearance24 cmReference
889 kgReference
Max front axle600 kgReference
Max rear axle800 kgReference
Capacities
Max capacity1399 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
