Tractor · 2008Unverified

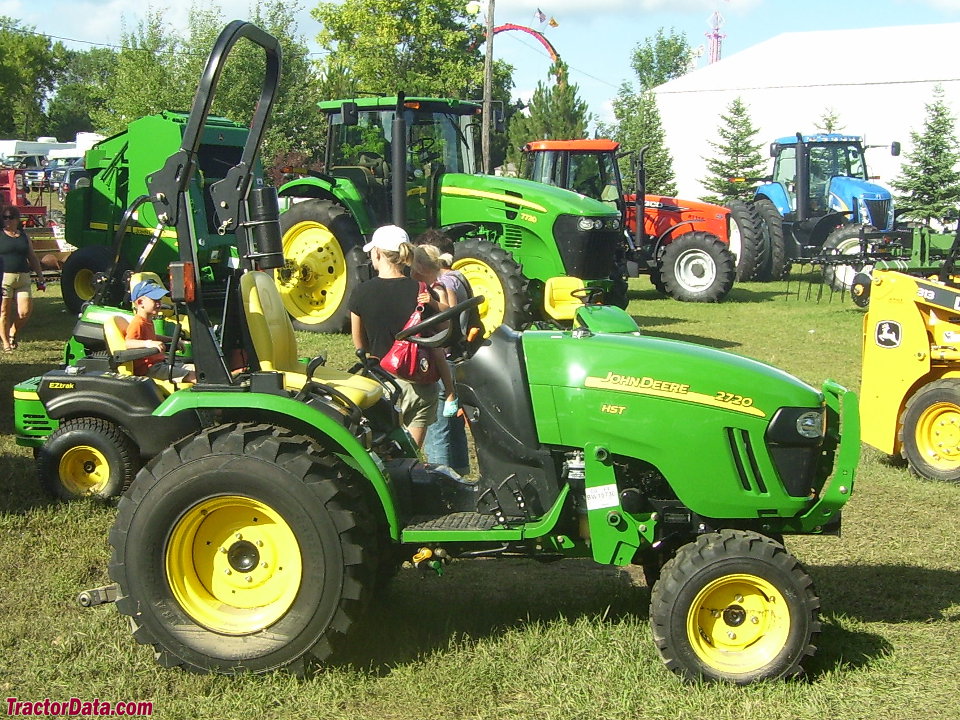

John Deere 2720
John Deere 2720 — Compact Utility tractor · 31 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
31 hp
Weight
894 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Compact Utility tractorReference
Built in Augusta, Georgia, USAReference
Four-wheel driveReference
Final drivesspur gearReference
SteeringpowerReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Yanmar 1.6L 3-cyl dieselReference
Engine (gross)23.4 kWReference
Yanmar 3TNV88Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke88 x 90 mmReference
Rated Power (gross)23.4 kWReference
Air cleanerdry dual elementReference
Compression19.1:1Reference
Rated RPM2500Reference
Operating RPM1200-2650Reference
Starter volts12Reference
Starter power1.0 kWReference
Coolant capacity4.0 LReference
Oil capacity3.4 LReference
Transmission
hydrostaticReference
TypehydrostaticReference
Gearsinfinite forward and reverse (2-range)Reference
Oil capacity14.8 LReference
Oil typeHy-GardReference
Two-range hydrostatic operated with foot pedals. Tractor but be stopped to shift ranges.Reference
PTO & Hydraulics
PTO (claimed)17.5 kWReference
Typeopen centerReference
Pressure166.9 barReference
Valves2Reference
Pump flow18.9 lpmReference
Total flow39.7 lpmReference
Steering flow20.8 lpmReference
Rear TypeIReference
Controlposition controlReference
Rear lift (at ends)650 kgReference
Rear lift (at 24"/610mm)567 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference

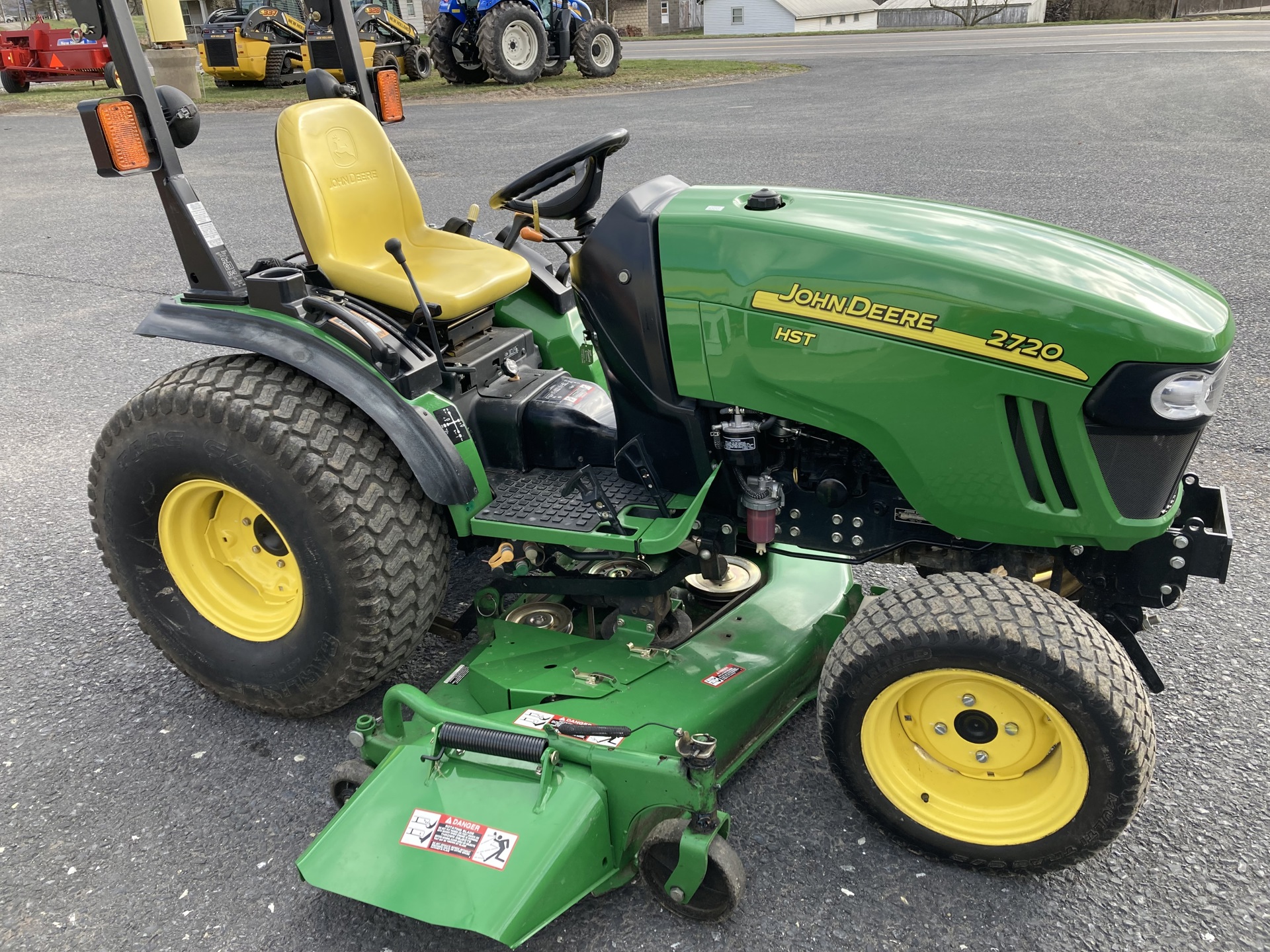

Mid PTO Type2100Reference
Capacities
Fuel26.9 LReference
Front axle3.9 LReference
Dimensions
Wheelbase165 cmReference
Weight894 kgReference
Lawn/turf front23x8.5-12Reference
Lawn/turf rear36x14.00-15Reference
Industrial front23x8.5-12Reference
Industrial rear14-17.5Reference
Length276 cmReference
Width99 cmReference
Width133 cmReference
Operating weight894 kgReference
Max weight1980 kgReference
Clearance (front axle)33 cmReference
Clearance (drawbar)27 cmReference
Front tread83 cmReference
Rear tread95 cmReference
John Deere 2720 attachments

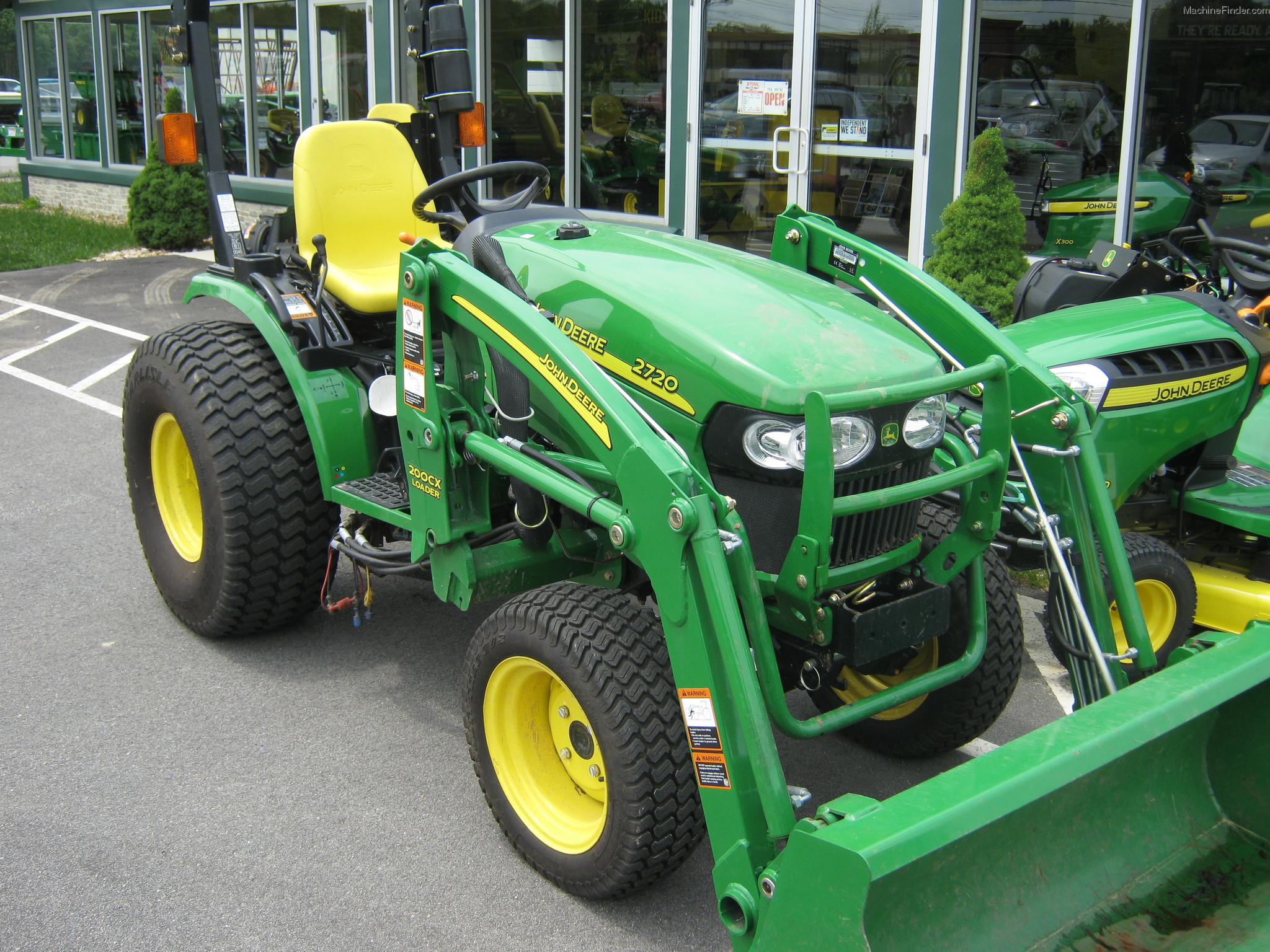

front-end loaderReference
backhoeReference
2720 Serial Number Location
Main frame above right front tire.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery CCA500Reference
Battery volts12Reference
Attachment overview
Front-end loaderReference
BackhoeReference
John Deere 46 Backhoe
Backhoe typeJohn Deere 46 BackhoeReference
John Deere 2720 Height
Hood119 cmReference
ROPS227 cmReference
ROPS175 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
