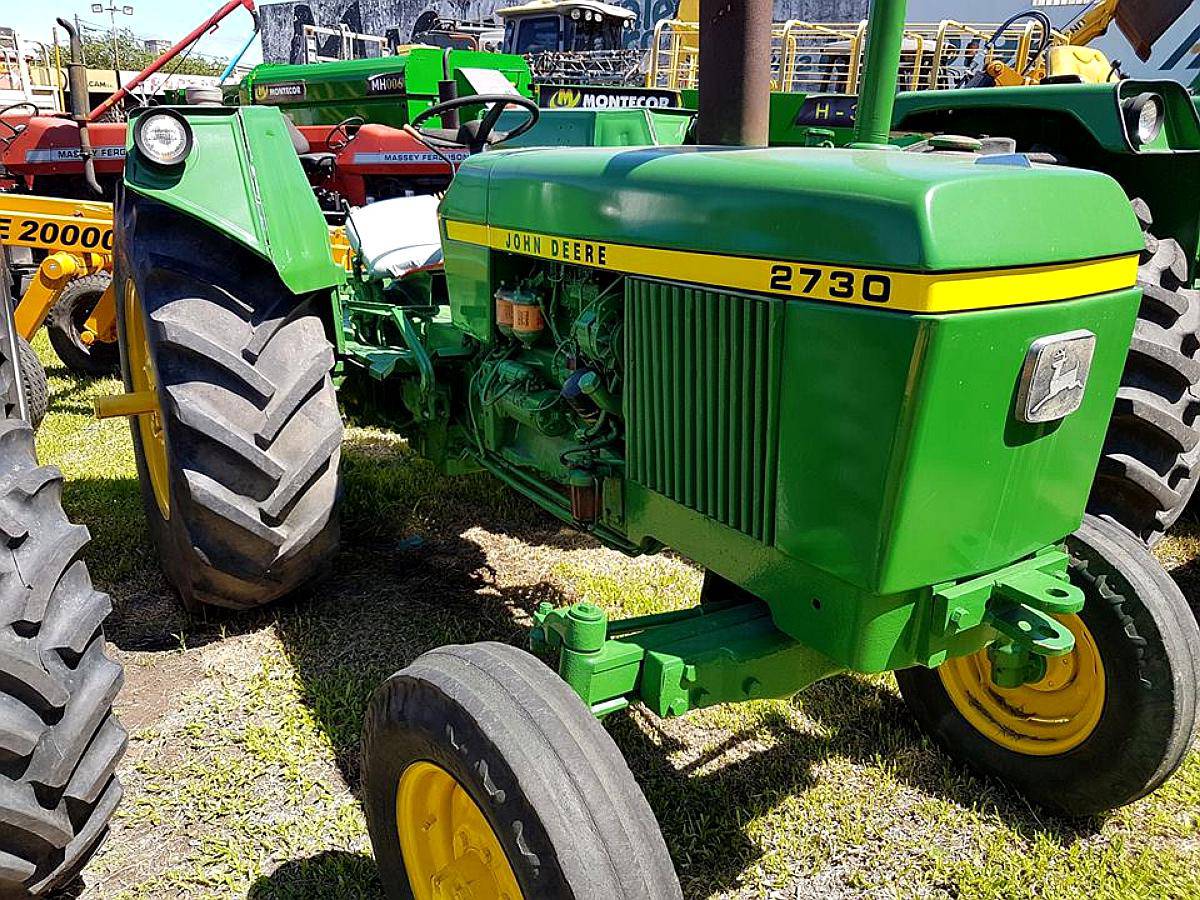

The John Deere 2730 is a mid-range tractor, offering approximately 74 hp of power. Produced from 1975 to 1980, it features a 4-cylinder diesel liquid-cooled engine, paired with two-wheel drive and an 8-speed gearbox. The tractor's operating weight is 4399 kg, accommodating operations on up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Weight
4399 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
74 hp
Recorded weight
4399 kg
Transmissions
8-speed
Production years
1975-1980
Verified variants
0
1 linked source document displayed
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Rosario, ArgentinaReference
Two-wheel driveReference
Final drivesplanetaryReference
Power steeringReference
Hydraulic wet disc brakesReference
Open operator station.Reference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank95.0 LReference
Engine55.2 kWReference
John DeereReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke107 x 110 mmReference
Power55.2 kWReference
Air cleanerdryReference
Compression16.8:1Reference
Rated RPM2500Reference
Starter volts12Reference
Oil capacity7.0 LReference
Coolant capacity12.0 LReference
Transmission
8-speedReference
Gears8 forward and 4 reverseReference
Clutchhydraulic dry discReference
Oil capacity38.0 LReference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIIReference
Rear PTO Type540Reference
Dimensions
Wheelbase217 cmReference
Weight4399 kgReference
Front tire6.50x16Reference
Rear tire18.4x30l15.5x38Reference
Ag front6.50x16Reference
Ag front7.50x16Reference
Ag rear18.4x30l15.5x38Reference
Length359 cmReference
Width225 cmReference
Shipping weight4399 kgReference
Steering wheel176 cmReference
Electrical
Charging systemalternatorReference
Battery volts12Reference
John Deere 2730 Height
Hood150 cmReference
Exhaust218 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
