Tractor · 1983Unverified
John Deere 2750
John Deere 2750 — Utility tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Max power
47.0 kW
Weight
7500 to 8910 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
Built in Mannheim, Baden-Württemberg, GermanyReference
Original price$24,596 (1983 ROPS 2WD )Reference
Original price$36,941 (1983 Cab 4WD )Reference
Two- or four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Differential hydraulic wet disc brakesReference
Two-post ROPS. Canopy available. Sound-Gard cab optional with available heat and air-conditioning.Reference
Variants
2750utility chassisReference
2750 High-Clearancehigh-cropReference
2750 Low-ProfileorchardReference
Engine
John Deere 3.9L 4-cyl dieselReference
Drawbar (tested)47.0 kWReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Compression16.8:1Reference
Rated RPM2500Reference
Starter volts12Reference
Coolant capacity3.2 LReference
Power at rated engine speed56.2 kWReference
Max power47.0 kWReference
Transmission
8-speed partially synchronizedReference
16-speed partial powershiftReference
12-speed partially synchronizedReference
TransmissionJohn Deere Top-Shaft SynchronizedReference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Four gears in two ranges, plus reverse range. Synchronized shifting between gears.Reference
TransmissionJohn Deere Hi-Lo Top-Shaft SynchronizedReference
Typepartial powershiftReference
Gears16 forward and 8 reverseReference
Four gears (1-4) in two ranges (I-II) and reverse (R) with two-speed power shift (rabbit/turtle).Reference
TransmissionJohn Deere TSS CreeperReference
Gears12 forward and 8 reverseReference
Adds a creeper to the low and reverse ranges of the Top-Shaft Synchronized transmission.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
PTO (tested)56.2 kWReference
Hydraulic system50.0 LReference
Typeclosed centerReference
Capacity50.0 LReference
Rear valves1 or 2Reference
Pump flow87.1 lpmReference
Rear TypeII/IReference
Controlload and depth controlReference
Rear lift1496 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Power at rated PTO speed56.0 kWReference
Capacities
Fuel98.4 LReference
Dimensions
2WD Wheelbase226 cmReference
4WD Wheelbase228 cmReference
Weight7500 to 8910 poundsReference
Front tire7.50-16Reference
Rear tire18.4-30 (2WD)Reference
Standard tires (ag)Front: 7.50-16. Rear: 18.4-30 (2WD)Reference
Standard tires (ag)Front: 13.6-24. Rear: 15.5-38 (4WD)Reference
Lawn/turf front27x9.5-15Reference
Lawn/turf rear21.5L-16.1Reference
2WD Length352 cmReference
4WD Length347 cmReference
Height (steering wheel)168 cmReference
Height (cab)259 cmReference
2WD Clearance (front axle)62 cmReference
4WD Clearance (front axle)48 cmReference
Rack-and-pinion rear axleReference
Shipping3724 kgReference
Shipping4041 kgReference
Operating3402 kgReference
Ballasted4365 kgReference

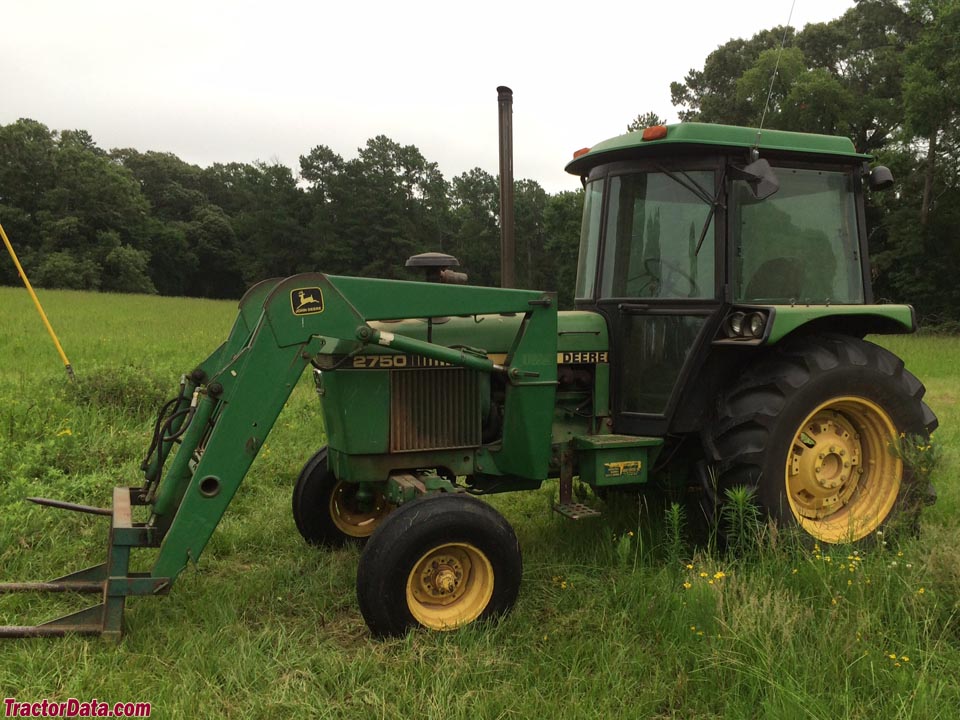

John Deere 2750 attachments
front-end loaderReference
2750 Serial Numbers
Location:Right side of main tractor frame, above front axle.Reference
1983433494Reference
1984505001Reference
1985532000Reference
1986562001Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Attachment overview
John Deere 146 loaderReference
John Deere 175 loaderReference
John Deere 240 loaderReference
John Deere 245 loaderReference
Test results
Diesel 16-speed 2WDApril 11 - May 11, 1983Link: Nebraska Tractor Test 1472 fileReference
PTO performanceReference
Fuel use18.2 l/hourReference
Fuel use17.8 l/hourReference
Drawbar performanceReference
Gear 5L used for power test.Reference
Max pull3438 kgReference
Gear 3L used for pull test.Reference
Speeds
With 18.4-30 rear tires.Reference
With 18.4-34 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
