Tractor · 1983Unverified

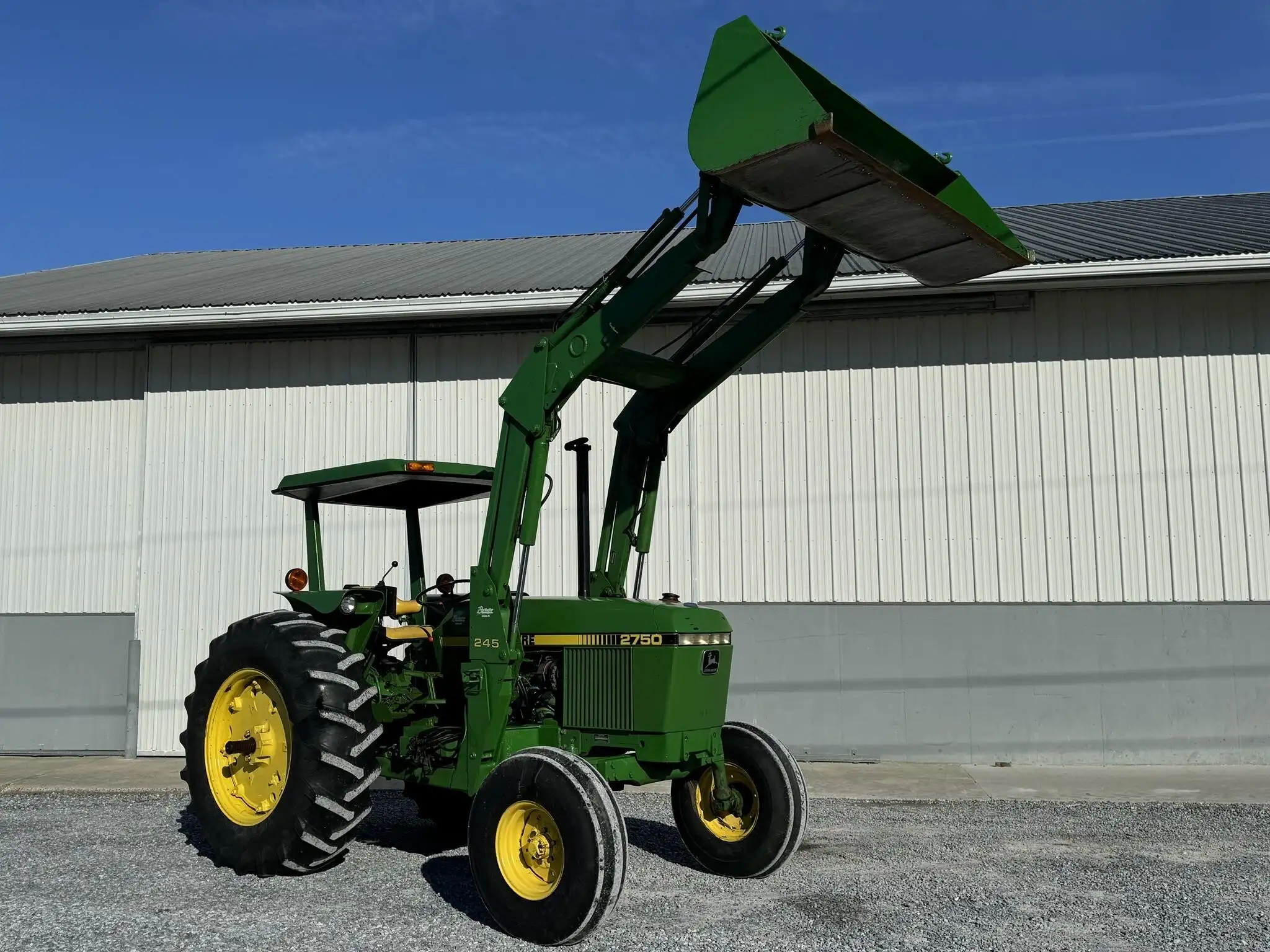

John Deere 2750 High-Clearance
John Deere 2750 High-Clearance — High-Clearance tractor · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
3574 kg
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
High-Clearance tractorReference
Four-wheel driveReference
Differential lockrear standardReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Two-post ROPS.Reference
Variants
2750utility chassisReference
2750 High-Clearancehigh-cropReference
2750 Low-ProfileorchardReference
Engine
John Deere 3.9L 4-cyl dieselReference
Fuel tank98.4 LReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Compression16.8:1Reference
Rated RPM2500Reference
Idle RPM1500-2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed partially synchronizedReference
TransmissionJohn Deere TSS CreeperReference
Typepartially synchronizedReference
Gears12 forward and 4 reverseReference
Four gears in two ranges, plus reverse range. Additional creeper for low and reverse ranges.Reference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
Typeclosed centerReference
Rear valves1 or 2Reference
Pump flow87.1 lpmReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000 (optional)Reference
Dimensions
Weight3574 kgReference
Front tire13.6-38Reference
Rear tire13.6-46Reference
Standard tires (ag)Front: 13.6-38. Rear: 13.6-46Reference
Shipping weight3574 kgReference
Clearance (front axle)68 cmReference
Clearance (rear axle)80 cmReference
Front tread162/167/182/193/203 cmReference
Rear tread162/167/182/193/203 cmReference
2750 High-Clearance Serial Numbers
Location:Right side of main tractor frame, above front axle.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps55Reference
Battery volts12Reference
Speeds
With 13.6-46 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
