Tractor · 1987Unverified

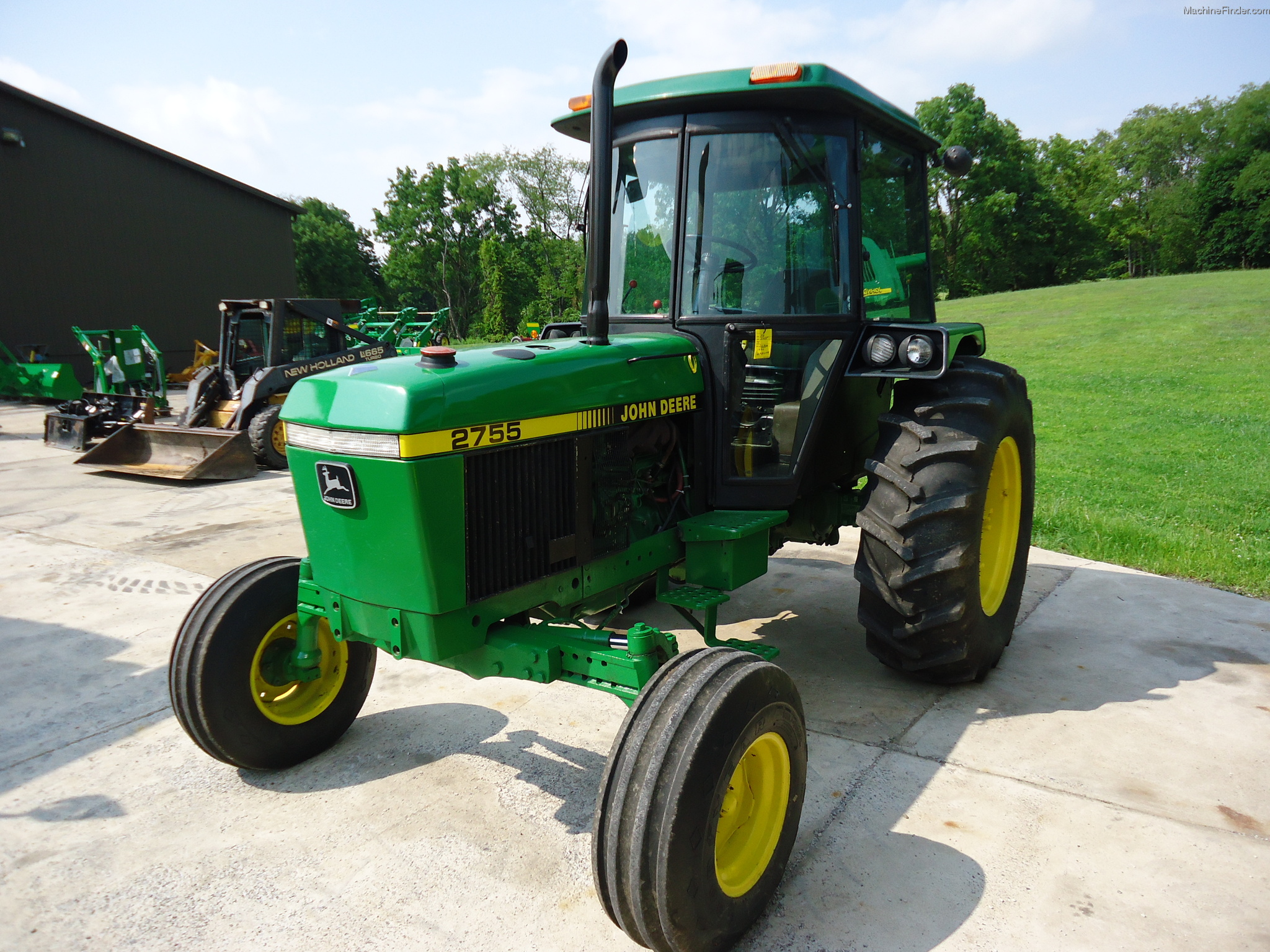

John Deere 2755
John Deere 2755 — 55 Utility Series · 75 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
75 hp
Weight
6262 to 8192 pounds
Hover a source tag to verify
Overview
ManufacturerJohn DeereReference
Utility tractorReference
FactoriesMannheim, Baden-Württemberg, GermanyReference
FactoriesSaltillo, MexicoReference
Original price was $28,000 in 1992Reference
Two- or four-wheel driveReference
SteeringpowerReference
Steeringhydrostatic powerReference
Differential hydraulic wet disc brakesReference
Roll-Gard ROPS. Optional Sound-Gard cab.Reference
Variants
Orchardlow-profileReference
High-crophigh-clearanceReference
Engine
John Deere 3.9L 4-cyl dieselReference
Engine65.6 kWReference
Drawbar (claimed)49.2 kWReference
John DeereReference
turbocharged dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.9 LReference
Bore/Stroke106 x 110 mmReference
Power65.6 kWReference
Compression17.8:1Reference
Rated RPM2300Reference
Starter volts12Reference
Oil capacity10.0 LReference
Coolant capacity13.0 LReference
Transmission
8-speed partially synchronizedReference
16-speed partial power shiftReference
12-speedReference
TransmissionJohn Deere Top-Shaft Synchronized (TSS)Reference
Typepartially synchronizedReference
Gears8 forward and 4 reverseReference
Clutchdry discReference
Four gears with two ranges (I-II) and reverse range.Reference
TransmissionJohn Deere Hi-Lo Top-Shaft Synchronized (TSS)Reference
Typepartial power shiftReference
Gears16 forward and 8 reverseReference
Adds a hydraulic high-low power shift to the basic TSS transmission.Reference
TransmissionJohn Deere Top-Shaft Synchronized CreeperReference
Gears12 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)55.9 kWReference
Hydraulic system42.4 LReference
Typeclosed centerReference
Capacity42.4 LReference
Pressure160.0 barReference
Valves1 to 3Reference
Total flow79.5 lpmReference
Rear TypeII/IReference
Rear lift1687 kgReference
Front HitchIIReference
Front lift1529 kgReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type540/1000Reference
Front PTOindependentReference
Front PTO Type1000Reference
Capacities
Fuel84.0 LReference
Dimensions
Wheelbase226 cmReference
Weight6262 to 8192 poundsReference
Front tire7.50-18Reference
Rear tire16.9-24Reference
Ag front7.50-18Reference
Ag rear16.9-24Reference
Ag rear18.4-26Reference
Ag rear18.4-30Reference
Ag rear16.9-34Reference
Ag rear18.4-34Reference
Ag rear15.5-38Reference
Ag rear12.4-42Reference
Lawn/turf rear21.5-16.1Reference
Shipping2840 kgReference
Shipping3265 kgReference
Shipping3235 kgReference
Shipping3715 kgReference
2755 Serial Number Location
Serial number plate on the right side of the tractor frame, above the front axle.Reference
2755 Serial Numbers
1987600000Reference
1988624800Reference
1989650392Reference
1990685854Reference
1991718718Reference
1992747264Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemalternatorReference
ROPS Charging amps55Reference
Cab Charging amps85Reference
Batteries2Reference
Battery CCA400Reference
Battery volts12Reference
Speeds
With 16.9-24 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
